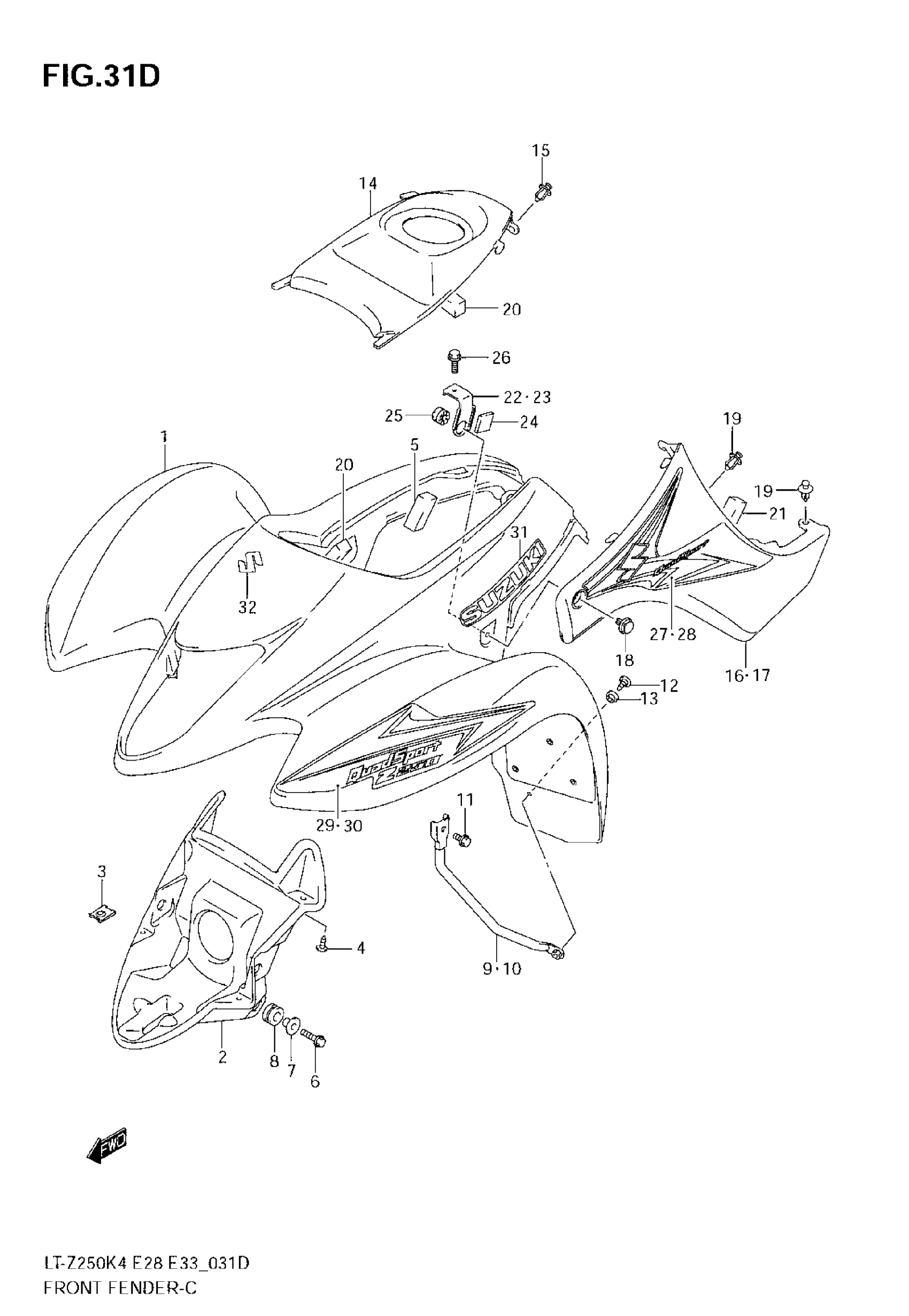

Suzuki LT-Z250 (2008) FRONT FENDER (MODEL K8) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-21G01-YU1

Unavailable

1

FENDER, FRONT (WHITE)

53111-21G01-30H

Unavailable

2

FENDER, INNER

53118-21G00

$132.37

3

NUT

09148-05038

$1.97

4

SCREW

03541-0516B

$1.77

5

CUSHION, SIDE

53147-21G00

Unavailable

6

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

7

SPACER

09169-06074

$7.49

8

CUSHION

09320-11008

$2.58

9

BRACKET, RH

53210-21G00

$47.90

10

BRACKET, LH

53220-21G00

$59.97

11

BOLT

09103-06285

$1.97

12

BOLT

01547-0616B

$2.43

13

WASHER

09169-06071

$2.50

14

FENDER, CENTER (YELLOW)

53119-21G01-YU1

Unavailable

14

FENDER, CENTER (WHITE)

53119-21G01-30H

Unavailable

15

CLIP

09409-07333

$2.29

16

COVER, SIDE RH (YELLOW)

53112-21G01-YU1

$143.58

16

COVER, SIDE RH (WHITE)

53112-21G01-30H

$140.92

17

COVER, SIDE LH (YELLOW)

53122-21G01-YU1

Unavailable

17

COVER, SIDE LH (WHITE)

53122-21G01-30H

$140.92

18

CLIP, FRONT

09409-08335

$2.44

19

CLIP

09409-07333

$2.29

20

CUSHION, NO.1

53145-05G00

$14.34

21

CUSHION, NO.2

53146-21G00

Unavailable

22

BRACKET, RH

53113-21G00

Unavailable

23

BRACKET, LH

53114-21G00

Unavailable

24

CUSHION

94422-06G00

$6.57

25

CUSHION, NO.2

09320-08071

$3.05

26

BOLT

01550-0612B

$2.38

27

TAPE, SIDE COVER RH | FOR 30H

68155-21G80-ELZ

Unavailable

27

TAPE, SIDE COVER RH | FOR YU1

68155-21G80-EMA

Unavailable

28

TAPE, SIDE COVER LH | FOR 30H

68156-21G80-ELZ

Unavailable

28

TAPE, SIDE COVER LH | FOR YU1

68156-21G80-EMA

Unavailable

29

TAPE, FRONT FENDER RH | FOR 30H

68155-21G90-ENC

Unavailable

29

TAPE, FRONT FENDER RH | FOR YU1

68155-21G90-END

Unavailable

30

TAPE, FRONT FENDER LH | FOR 30H

68156-21G90-ELZ

Unavailable

30

TAPE, FRONT FENDER LH | FOR YU1

68156-21G90-EMA

Unavailable

31

EMBLEM,SUZUKI | FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$21.97

31

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$22.80

32

EMLBEM "S" This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$18.00
