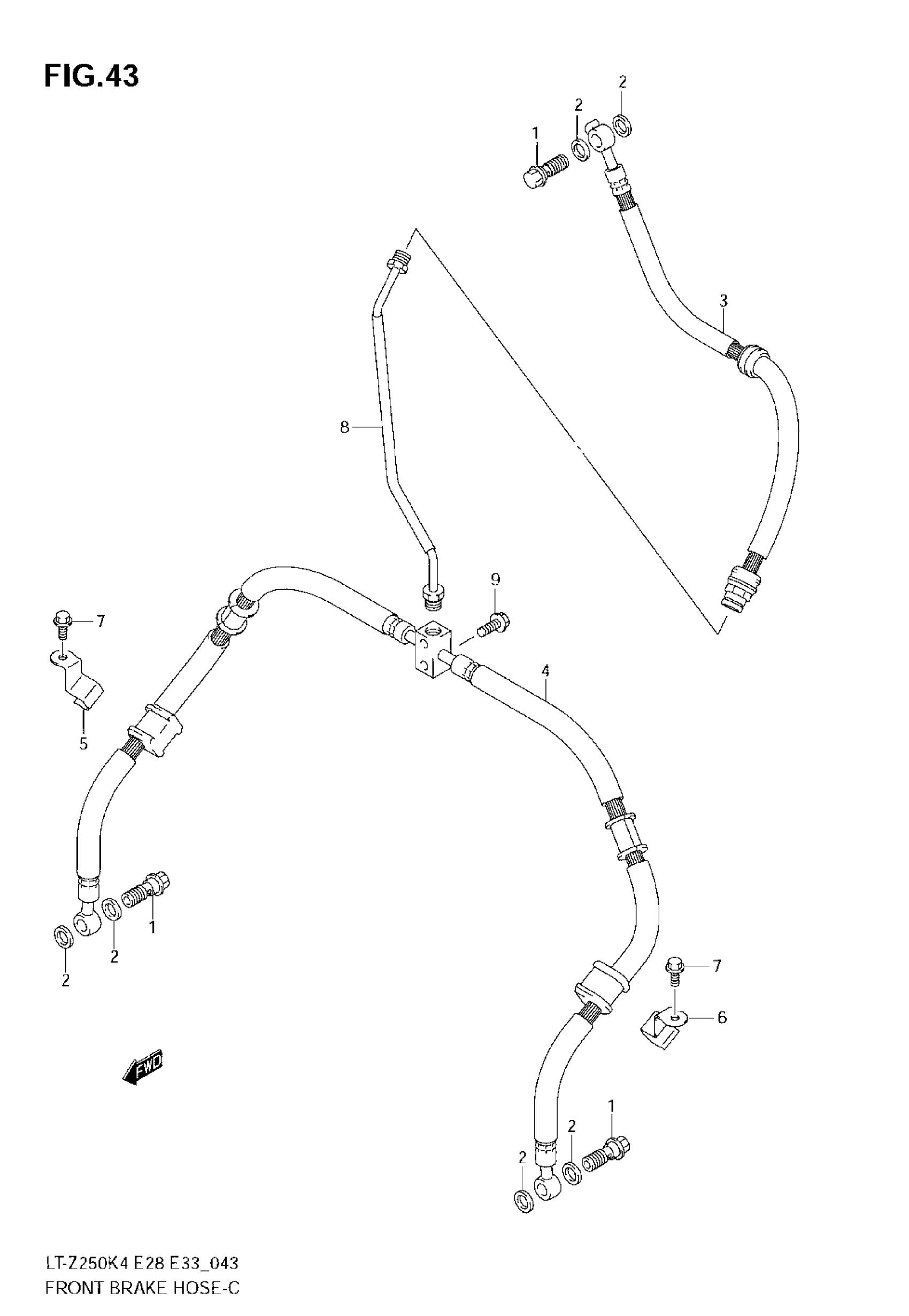

Suzuki LT-Z250 (2008) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$5.81

2

WASHER (10X15X1.5)

09161-10009

$1.83

3

HOSE, FRONT BRAKE NO.1 This part replaces 59480-21G00.

59480-21G10

Unavailable

4

HOSE This part replaces 59240-21G00.

59240-21G11

$161.73

5

CLAMP, HOSE NO.2 RH

59261-21G00

Unavailable

6

CLAMP, HOSE NO.2 LH

59271-21G00

Unavailable

7

BOLT

01550-0610B

$2.43

8

PIPE, FRONT BRAKE

59250-21G00

Unavailable

9

BOLT

01547-0616B

$2.43
