2008 Suzuki LT-Z250 Clutch Diagram

← All diagrams

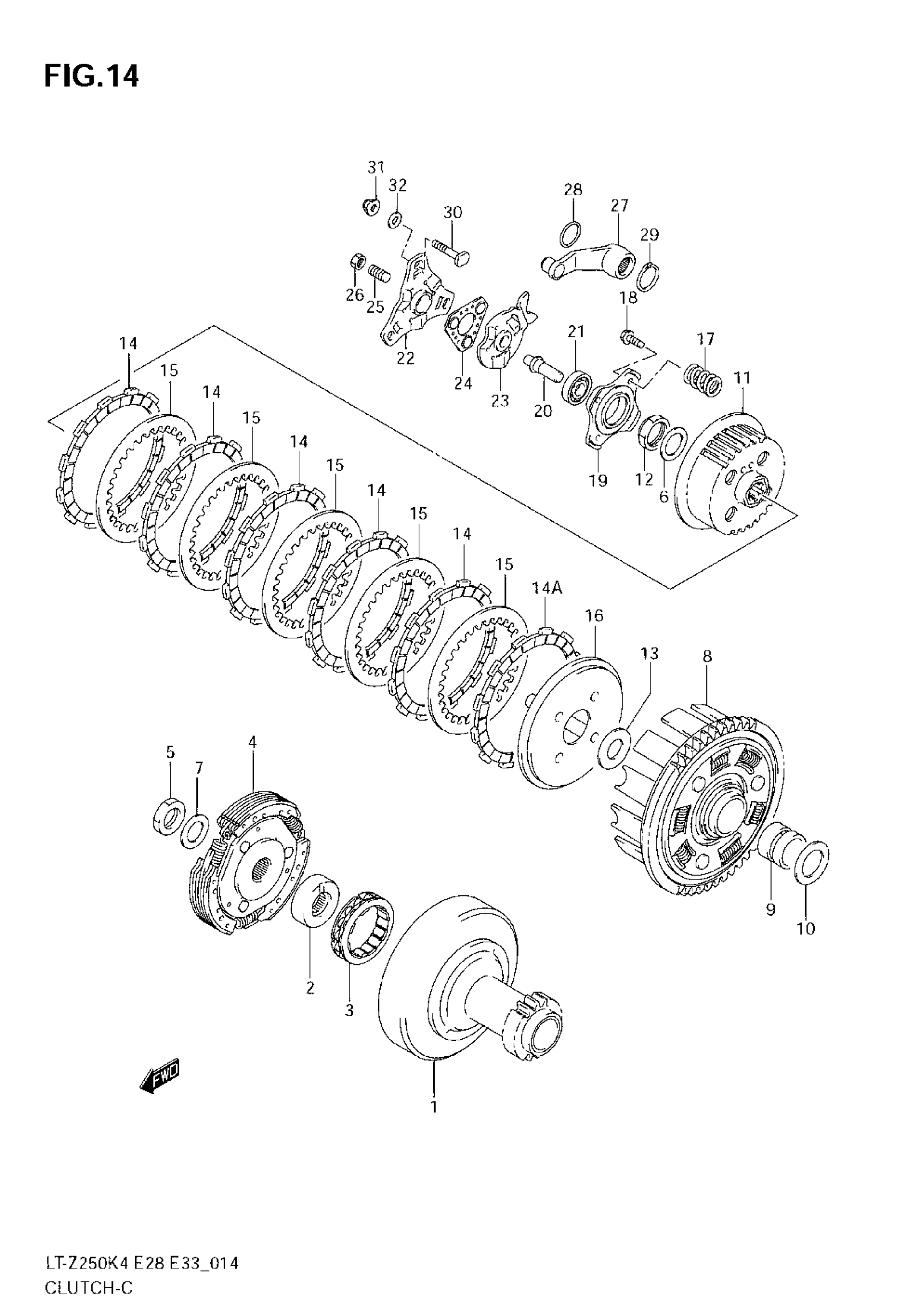

Find the part on the Clutch diagram for your 2008 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-Z250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (NT:21)

21110-21G00

1
Out of stock

2

RACE, INNER

21631-19B11

1
Out of stock

3

CLUTCH, ONE WAY

21273-19B10

1
Out of stock

4

CLUTCH ASSY | MODEL K4 This part replaces 21500-05G01.

21500-05G10

1
Out of stock

4

CLUTCH ASSY | MODEL K5/K6/K7/K8

21500-05G10

1
Out of stock

5

NUT

09140-18012

1
Out of stock

6

LOCK WASHER (ID:20.1)

09164-20007

1
Out of stock

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

1
Out of stock

8

GEAR ASSY, PRIMARY (NT:64)

21200-21G00

1
Out of stock

9

SPACER (22X28X23)

09180-22035

1
Out of stock

10

WASHER (22X36X1.0)

09181-22251

1
Out of stock

11

HUB, CLUTCH

21410-05G00

1
Out of stock

12

NUT

09140-20019

1
Out of stock

13

WASHER

08211-20323

1
Out of stock

14

PLATE, DRIVE

21441-22A01

5
Out of stock

14A

PLATE, DRIVE NO.2

21441-29B01

1
Out of stock

15

PLATE, DRIVEN (T:2.0)

21451-36200

5
Out of stock

16

DISC, PRESSURE

21462-24501

1
Out of stock

17

SPRING

09440-19017

4
Out of stock

18

BOLT

01550-0620B

4
Out of stock

19

PLATE, RELEASE

21465-24500

1
Out of stock

20

PIECE, PUSH

23121-05G00

1
Out of stock

21

BEARING (12X28X8)

09262-12001

1
Out of stock

22

GUIDE, BALL OUTER

23231-05G21

1
Out of stock

23

GUIDE, BALL INNER

23211-05G21

1
Out of stock

24

BALL, RELEASE

23250-31003

1
Out of stock

25

SCREW, ADJUSTER

09134-08009

1
Out of stock

26

NUT, ADJUSTER

09140-08021

1
Out of stock

27

ARM, RELEASE

23220-05G20

1
Out of stock

28

WASHER, CLUTCH RLSE ARM

08211-10243

1
Out of stock

29

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

1
Out of stock

30

BOLT

09119-06103

3
Out of stock

31

NUT

08313-2006B

3
Out of stock

32

SEAL, BOLT

09168-06023

3
Out of stock
