2005 Suzuki LT-V700F (CA) Owner's Tool Diagram

← All diagrams

Find the part on the Owner's Tool diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

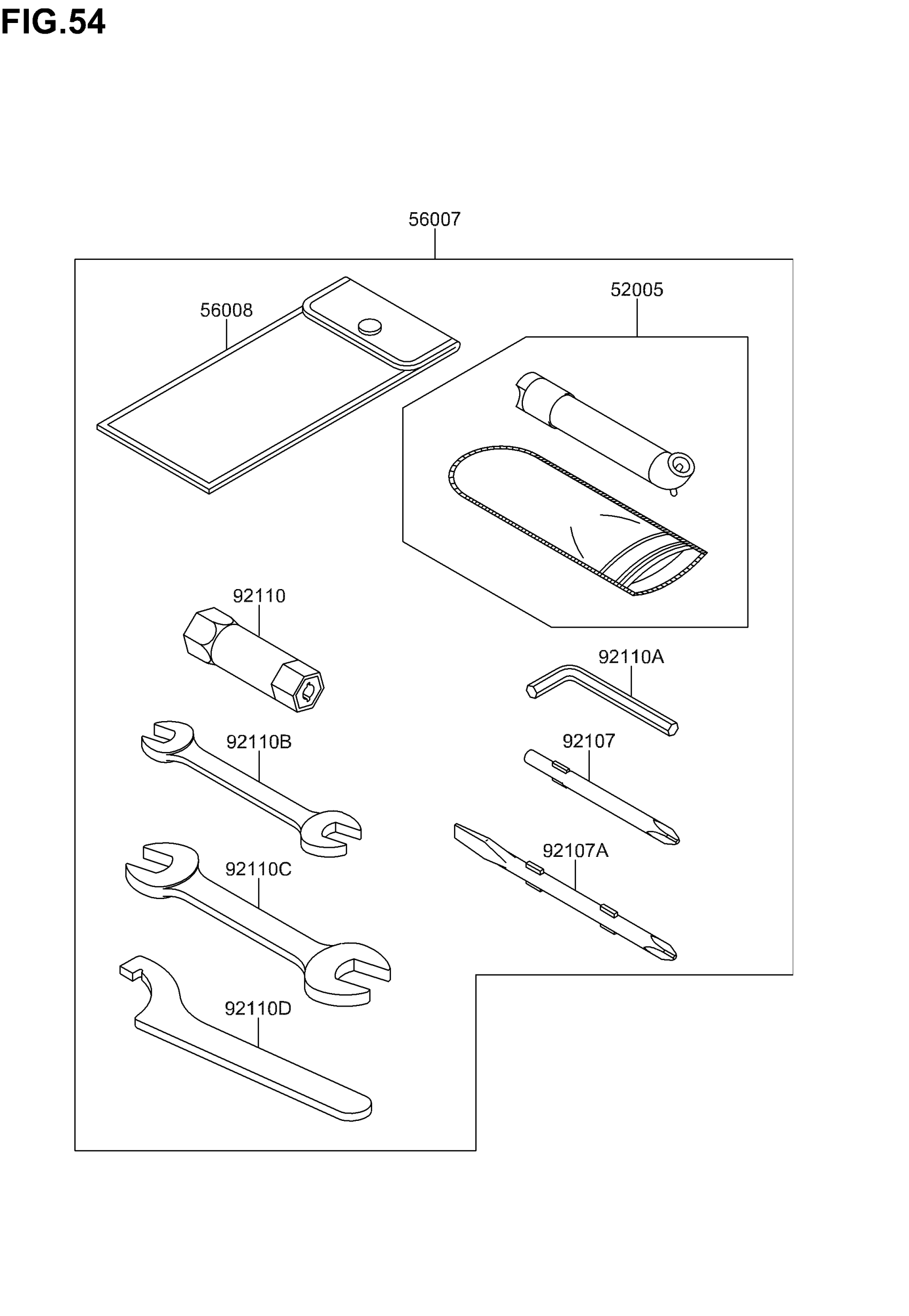

2005 Suzuki LT-V700F (CA) Owner's Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

52005

GAUGE,AIR

K5200-51082

1
Out of stock

56007

TOOL-KIT

K5600-71494

1
Out of stock

56008

BAG,TOOL

K5600-81007

1
Out of stock

92107

TOOL-DRIVER,#3PHILLIPS

K9210-71002

1
Out of stock

92107A

TOOL-DRIVER,#2PHILLIPS&SLOT

K9210-71052

1
Out of stock

92110

TOOL-WRENCH,BOX,16MM

K9211-01116

1
Out of stock

92110A

TOOL-WRENCH,ALLEN,3MM

K9211-01140

1
Out of stock

92110B

TOOL-WRENCH,OPEN END,10X12

K9211-01152

1
Out of stock

92110C

TOOL-WRENCH,OPEN END,14X17

K9211-01153

1
Out of stock

92110D

TOOL-WRENCH,HOOK

K9211-01173

1
Out of stock

11

MANUAL OWNER'S | K4 NOT SHOWN

99011-11AC0-03A

1
Out of stock

12

MANUAL OWNER'S | K5 NOT SHOWN

99011-11AC1-03A

1
Out of stock
