2005 Suzuki LT-V700F (CA) AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

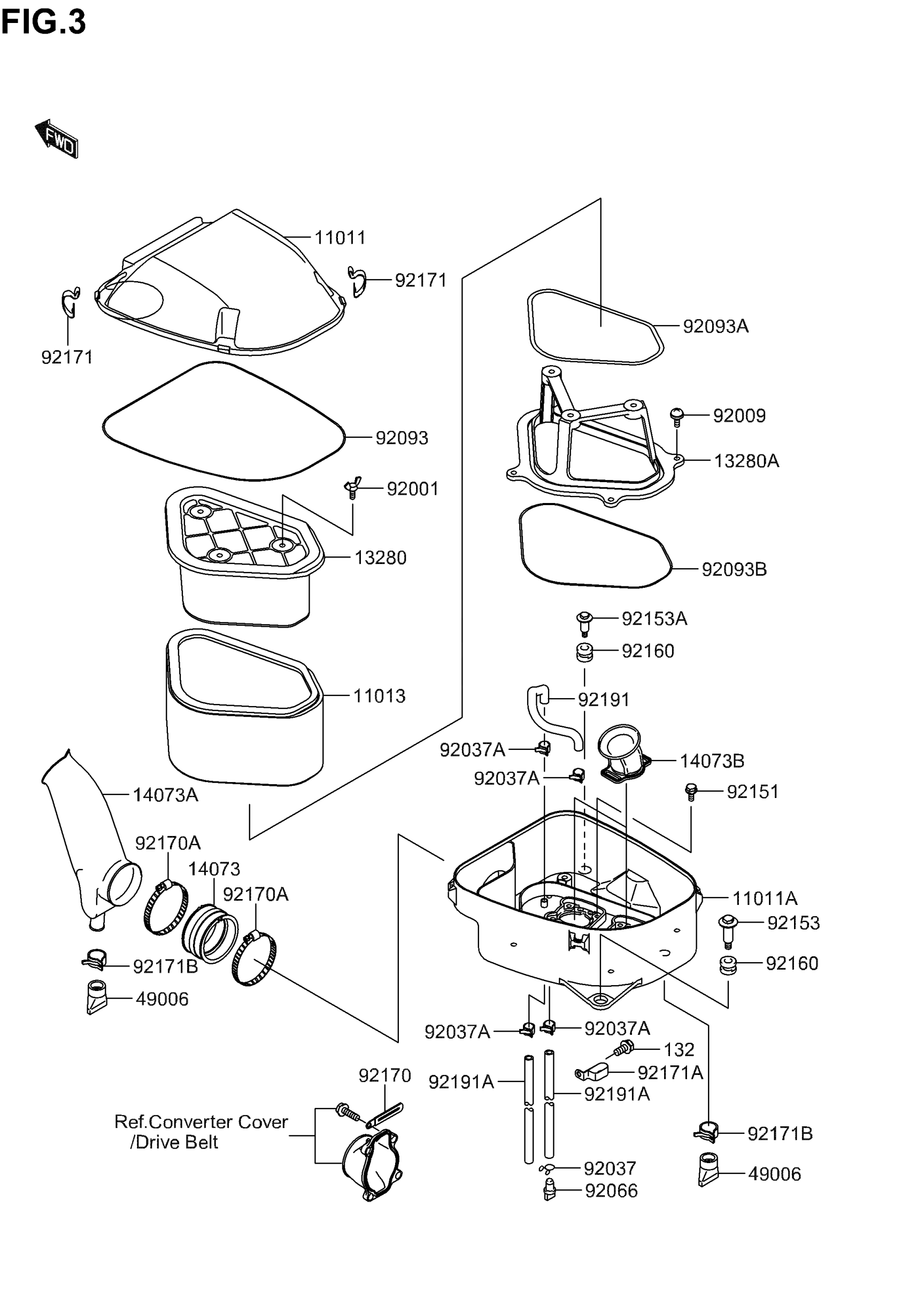

2005 Suzuki LT-V700F (CA) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER,UPP | K4 This part replaces K1101-11659.

K1101-10046

1
Out of stock

11011A

CASE-AIR FILTER,UPP | K5

K1101-10046

1
Out of stock

11011B

CASE-AIR FILTER,LWR | K4 This part replaces K1101-11660.

K1101-10047

1
Out of stock

11011C

CASE-AIR FILTER,LWR | K5

K1101-10047

1
Out of stock

11013

ELEMENT-AIR FILTER

K1101-30001

1
Out of stock

13280

HOLDER

K1328-01272

1
Out of stock

13280A

HOLDER | K4 This part replaces K1328-01273.

K1328-00111

1
Out of stock

13280B

HOLDER | K5

K1328-00111

1
Out of stock

14073

DUCT,JOINT

K1407-31775

1
Out of stock

14073A

DUCT,INTAKE

K1407-31778

1
Out of stock

14073B

DUCT,AIR FUNNEL

K1407-31830

2
Out of stock

49006

BOOT

K4900-61292

2
Out of stock

92001

BOLT,WING,6X15

K9200-11703

3
Out of stock

92009

SCREW,6X16

K9200-91621

4

$1.93

In stock

92037

CLAMP,TUBE

KK920-37147

1

$5.88

In stock

92037A

CLAMP,TUBE

K9203-71505

4
Out of stock

92066

PLUG,DRAIN

K9206-61211

1
Out of stock

92093

SEAL,AIR FILTER CASE

K9209-31522

1
Out of stock

92093A

SEAL,HOLDER-HOLDER

K9209-31569

1
Out of stock

92093B

SEAL,HOLDER-LOWER

K9209-31570

1
Out of stock

92151

BOLT,5X12

K9215-11305

8
Out of stock

92153

BOLT,AIR FILTER,LH

K9215-31051

1
Out of stock

92153A

BOLT,AIR FILTER,RH

K9215-31052

1
Out of stock

92160

DAMPER

K9216-01594

2
Out of stock

92170

CLAMP

K9217-01514

1

$4.23

In stock

92170A

CLAMP

K9217-01764

2
Out of stock

92171

CLAMP,AIR FILTER CASE

K9217-11394

4
Out of stock

92171A

CLAMP,AIR VENT

K9217-11522

1
Out of stock

92171B

CLAMP

K9217-11571

2
Out of stock

92191

TUBE,7X11X210

K9219-11494

1
Out of stock

92191A

TUBE,7X11X470

K9219-11531

2
Out of stock

132

BOLT-FLANGED-SMALL

KK132-Y0612

1
Out of stock
