2004 Suzuki LT-V700F Rear Fender Diagram

← All diagrams

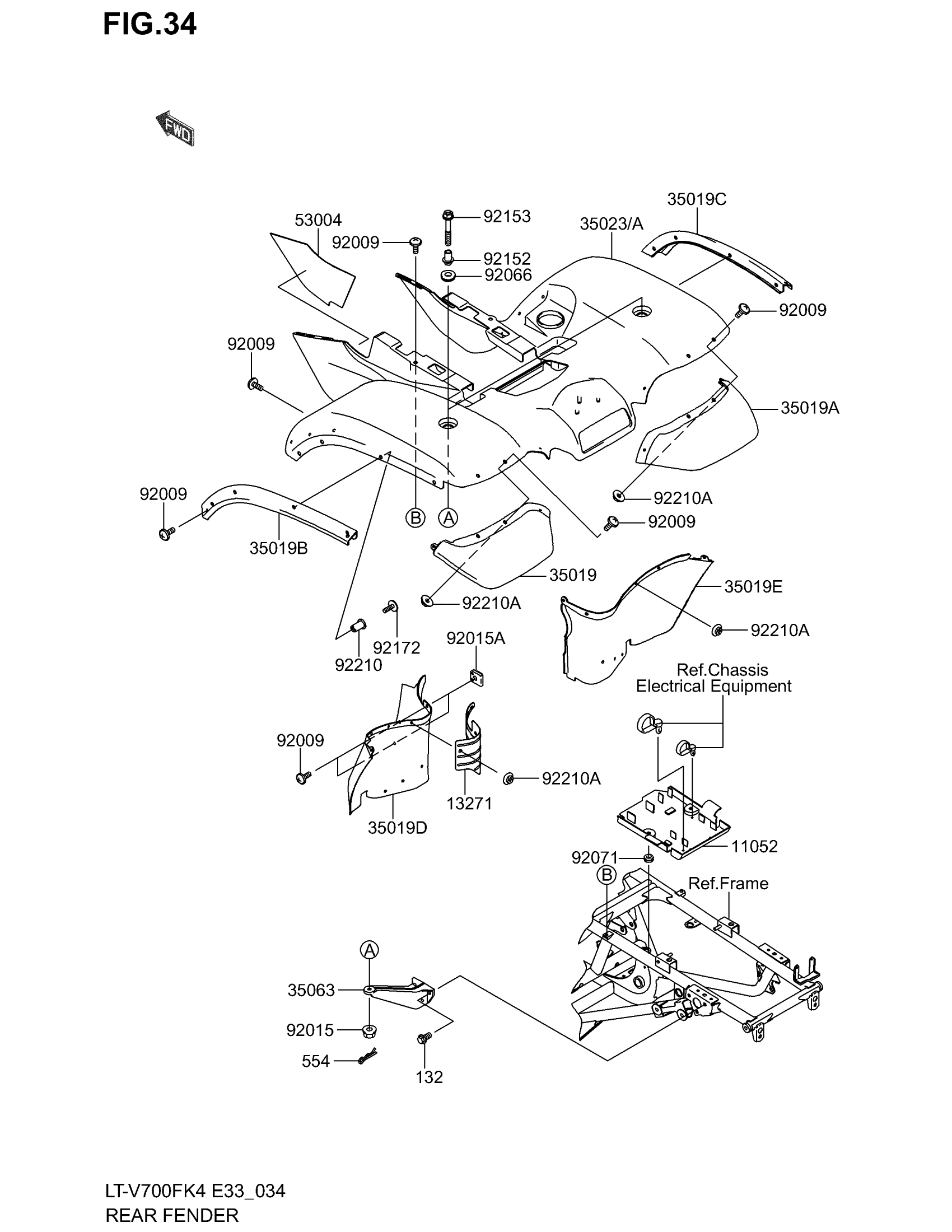

Find the part on the Rear Fender diagram for your 2004 Suzuki LT-V700F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LT-V700F Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,ELCTRIC

K1105-21847

1
Out of stock

13271

PLATE,HEAT GUARD

K1327-11718

1
Out of stock

35019

FLAP,RR,RR,LH,F.BLACK

KK350-19001-26Z

1
Out of stock

35019A

FLAP,RR,RR,RH,F.BLACK

KK350-19001-36Z

1
Out of stock

35019B

FLAP,RR,SIDE,LH,F.BLACK

KK350-19137-36Z

1
Out of stock

35019C

FLAP,RR,SIDE,RH,F.BLACK

KK350-19137-46Z

1
Out of stock

35019D

FLAP,RR,FR,LH,F.BLACK

KK350-19139-36Z

1
Out of stock

35019E

FLAP,RR,FR,RH,F.BLACK

KK350-19139-46Z

1
Out of stock

35023

FENDER-REAR,C.YELLOW

K3502-31565-267

1
Out of stock

35023A

FENDER-REAR,G.BLUE

K3502-31565-278

1
Out of stock

35063

STAY,RR FENDER

K3506-31100

2
Out of stock

53004

MAT,RR FENDER

K5300-41170

1
Out of stock

92009

SCREW,6X16

K9200-91621

23
Out of stock

92015

NUT,LOCK,FLANGED,8MM

K9201-51397

2
Out of stock

92015A

NUT,CLAMP,6MM

K9201-51678

2
Out of stock

92066

PLUG

K9206-61438

2
Out of stock

92071

GROMMET

K9207-11131

2
Out of stock

92152

COLLAR,L=38.5

K9215-20098

2
Out of stock

92153

BOLT,FLANGED,8X68

K9215-30326

2
Out of stock

92172

SCREW,5X18

K9217-21063

8
Out of stock

92210

NUT,POP,5MM

K9221-00012

8
Out of stock

92210A

NUT,6MM

K9221-01368

19
Out of stock

132

BOLT-FLANGED-SM This part replaces KK132-J0818.

K132B-B0818

6
Out of stock

554

PIN-SNAP,8MM This part replaces KK554-A0800.

K554D-A0800

2
Out of stock
