2004 Suzuki LT-V700F Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2004 Suzuki LT-V700F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

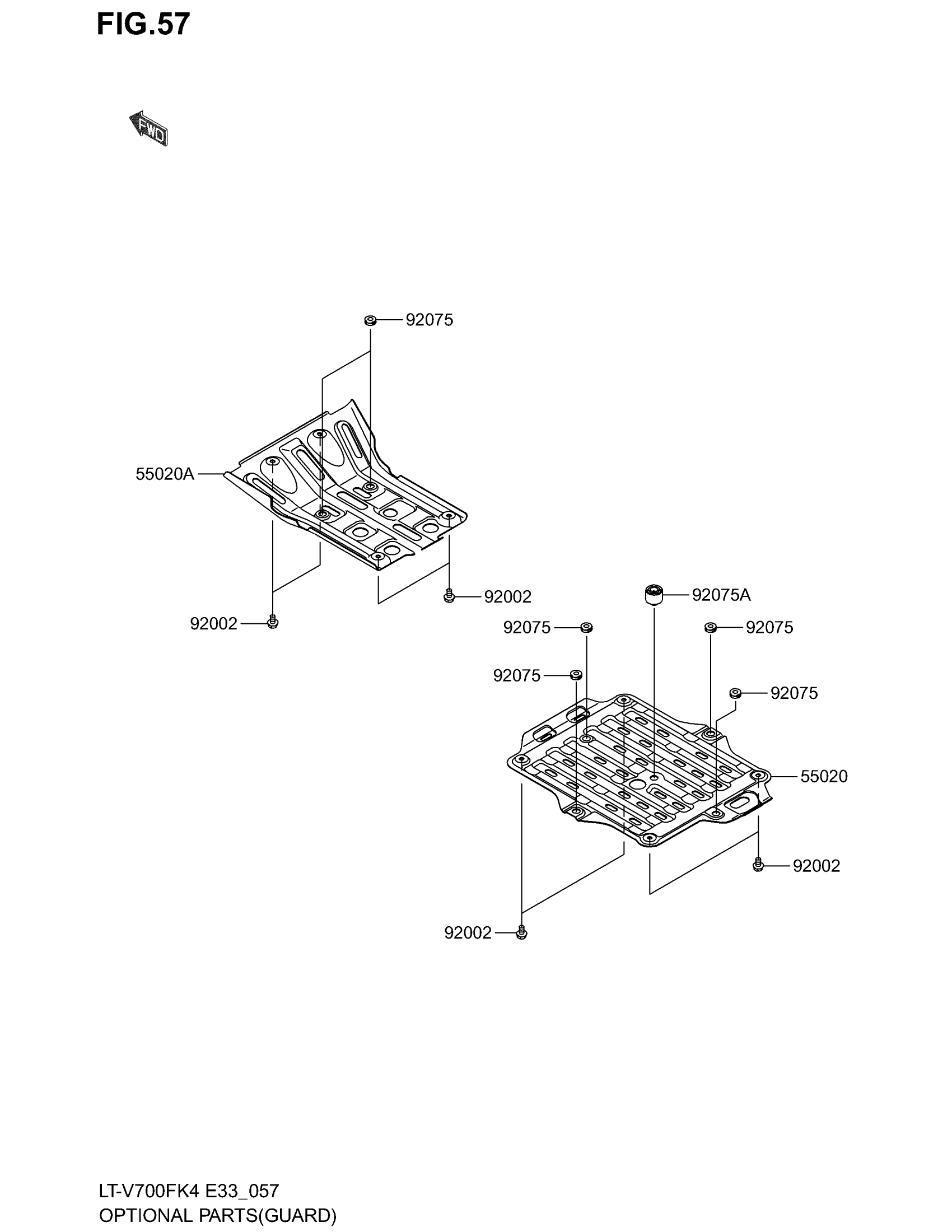

2004 Suzuki LT-V700F Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

55020

GUARD,ENGINE,UNDER

K5502-01712

1
Out of stock

55020A

GUARD,FRONT SKID,BLACK

KK550-20174-810

1
Out of stock

92002

BOLT,6X10

K9200-21449

8
Out of stock

92075

DAMPER

KK920-75051

6
Out of stock

92075A

DAMPER

K9207-51002

1
Out of stock
