2004 Suzuki LT-V700F Front Bevel Gear Diagram

← All diagrams

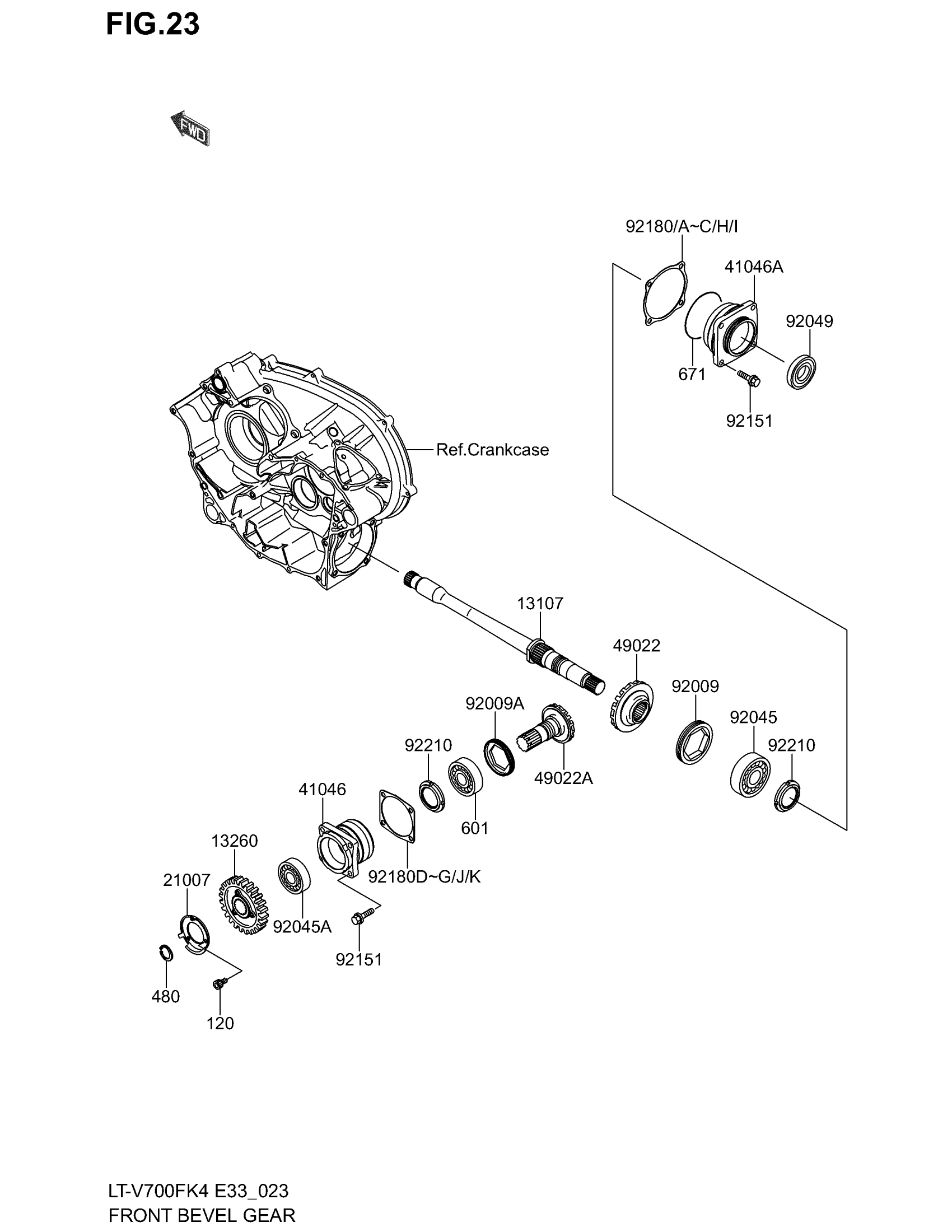

Find the part on the Front Bevel Gear diagram for your 2004 Suzuki LT-V700F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LT-V700F Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

K1310-70027

1
Out of stock

13260

GEAR,OUTPUT 29T

K1326-01922

1
Out of stock

21007

ROTOR,REVERSE SENSOR

K2100-71416

1
Out of stock

41046

HOUSING-BEARING

K4104-61101

1
Out of stock

41046A

HOUSING-BEARING

K4104-61102

1
Out of stock

49022

GEAR-BEVEL,DRIVEN,20T

K4902-20007

1
Out of stock

49022A

GEAR-BEVEL,DRIVE,12T

K4902-21192

1
Out of stock

92009

SCREW

K9200-91667

1
Out of stock

92009A

SCREW,64MM

K9200-91914

1
Out of stock

92045

BEARING-BALL,6306SH2

K9204-51190

1
Out of stock

92045A

BEARING-BALL,62/28

K9204-51207

1
Out of stock

92049

SEAL,OIL This part replaces K9204-91529.

K9204-90095

1
Out of stock

92151

BOLT

K9215-11688

8
Out of stock

92180

SHIM,DRIVEN,T=0.15

K9218-01307

1
Out of stock

92180A

SHIM,DRIVEN,T=0.20

K9218-01308

1
Out of stock

92180B

SHIM,DRIVEN,T=0.50

K9218-01309

1
Out of stock

92180C

SHIM,DRIVEN,T=0.80

K9218-01310

1
Out of stock

92180D

SHIM,DRIVE,T=0.15

K9218-01311

1
Out of stock

92180E

SHIM,DRIVE,T=0.20

K9218-01312

1
Out of stock

92180F

SHIM,DRIVE,T=0.50

K9218-01313

1
Out of stock

92180G

SHIM,DRIVE,T=0.80

K9218-01314

1
Out of stock

92180H

SHIM,DRIVEN,T=1.00

K9218-01349

1
Out of stock

92180I

SHIM,DRIVEN,T=1.20

K9218-01350

1
Out of stock

92180J

SHIM,DRIVE,T=1.00

K9218-01351

1
Out of stock

92180K

SHIM,DRIVE,T=1.20

K9218-01352

1
Out of stock

92210

NUT,30MM

K9221-01294

2
Out of stock

120

BOLT-SOCKET,6X1 This part replaces KK120-P0612.

K120C-A0612

3
Out of stock

480

CIRCLIP-TYPE-C,28MM

KK480-J2800

1
Out of stock

601

BEARING-BALL,#6206C3

KK601-B6206

1
Out of stock

671

O RING

KK671-D2585

1
Out of stock
