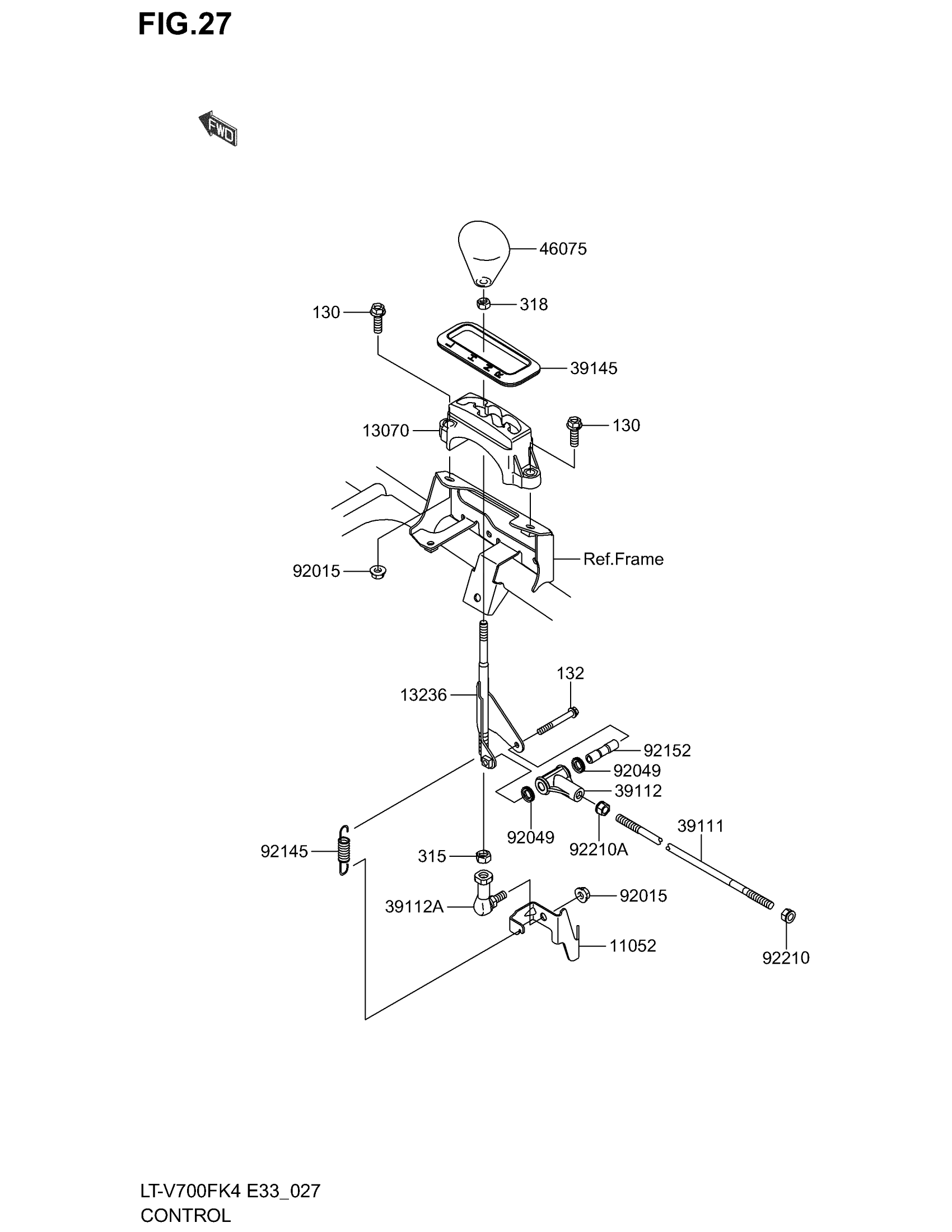

Suzuki LT-V700F (2004) CONTROL Diagram

#

Description

Price

11052

BRACKET,CONTROL

K1105-21441

Unavailable

13070

GUIDE,CONTROL SHAFT

K1307-01396

Unavailable

13236

LEVER-COMP,SHIFT

K1323-61384

Unavailable

39111

ROD-TIE,SHIFT

K3911-11174

Unavailable

39112

RODEND-TIE

K3911-21079

Unavailable

39112A

RODEND-TIE,CNTR This part replaces K3911-21084.

K3911-20019

Unavailable

39145

TRIM-SEAL,CONTROL GUIDE

K3914-51121

Unavailable

46075

NO DESCRIPTION AVAILABLE This part replaces K4607-51185.

K4607-50046

Unavailable

92015

NUT,8MM

K9201-51432

$5.43

92049

SEAL-OIL

K9204-91458

Unavailable

92145

SPRING,CONTROL

K9214-51441

Unavailable

92152

COLLAR,RODEND-TIE

K9215-21222

Unavailable

92210

NUT,RH,THREAD 8MM

K9221-01242

Unavailable

92210A

NUT,LH,THREAD 8MM

K9221-01284

Unavailable

130

BOLT-FLANGED

KK130-Z0825

Unavailable

132

BOLT-FLANGED-SMALL

KK132-J0650

Unavailable

315

NUT-HEX-FINE,10MM

KK315-B1000

Unavailable

318

NUT-HEX-SMALL,8MM

KK318-G0800

Unavailable
