2004 Suzuki LT-V700F Brake Pedal Diagram

← All diagrams

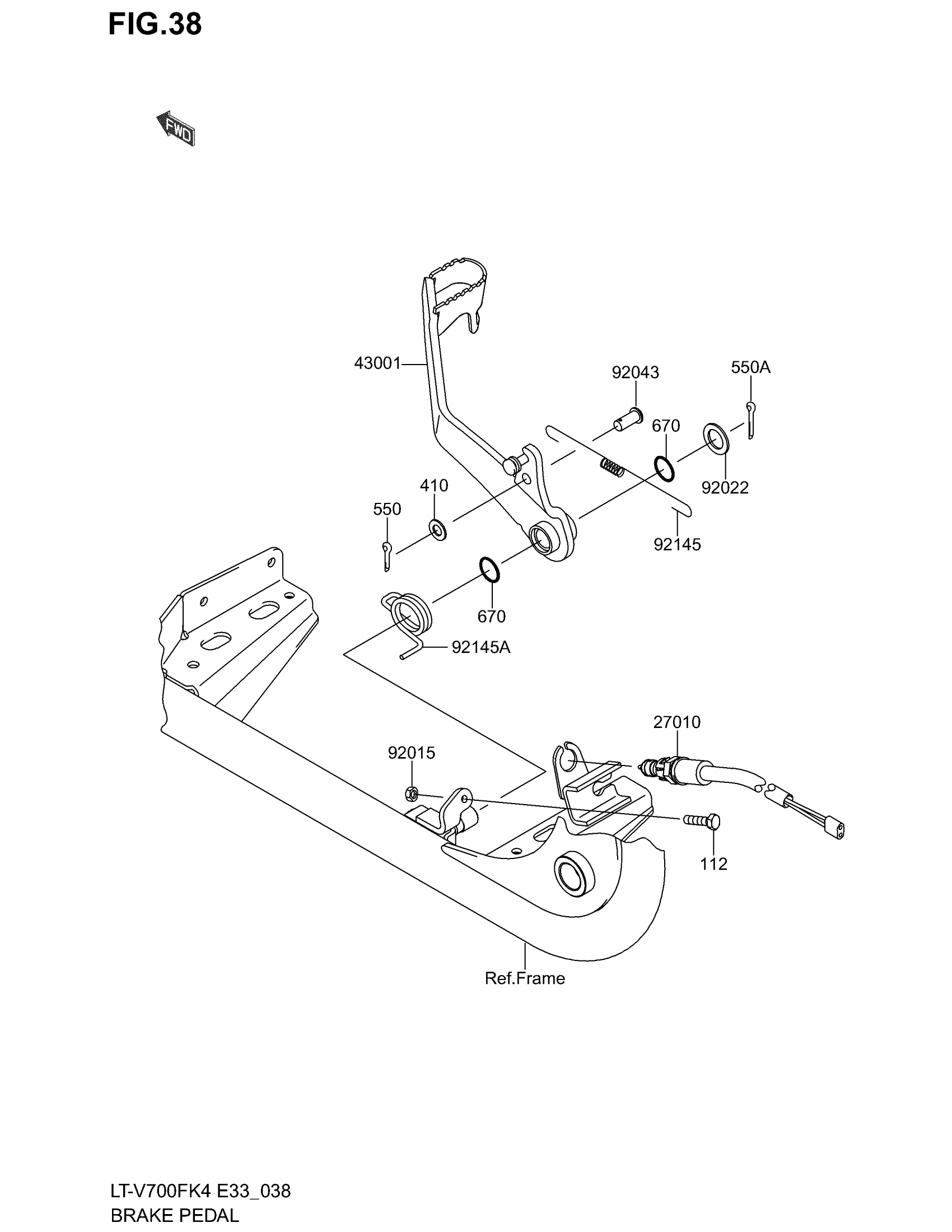

Find the part on the Brake Pedal diagram for your 2004 Suzuki LT-V700F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LT-V700F Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

K2701-01494

1
Out of stock

43001

LEVER-BRAKE,PEDAL

K4300-11441

1
Out of stock

92015

NUT,6MM

K9201-51410

1
Out of stock

92022

WASHER,15.5X24X1.6

K9202-21049

1
Out of stock

92043

PIN,8X16

K9204-31013

1
Out of stock

92145

SPRING,BRAKE SWITCH

K9214-50056

1
Out of stock

92145A

SPRING,BRAKE PEDAL RETURN

K9214-51421

1
Out of stock

112

BOLT-UPSET

KK112-D0622

1
Out of stock

410

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

1
Out of stock

550

PIN-COTTER,2.0X This part replaces KK550-D2015.

K550A-A2015

1
Out of stock

550A

PIN-COTTER,2.0X This part replaces KK550-D2022.

K550A-A2022

1
Out of stock

670

O RING,15MM

KK670-B2015

2
Out of stock
