2009 Suzuki LT-R450 Steering Shaft Diagram

← All diagrams

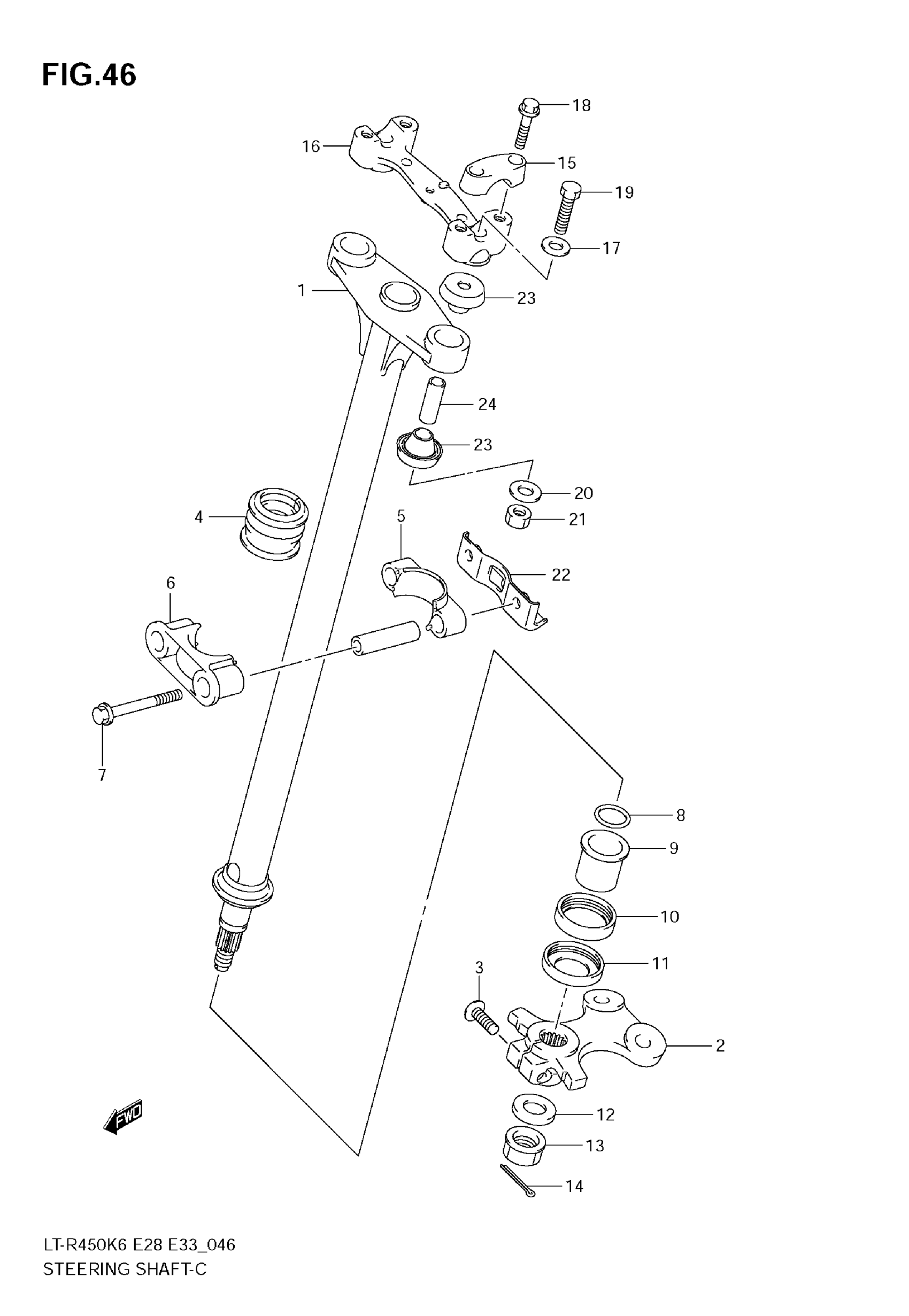

Find the part on the Steering Shaft diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-R450 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING | MODEL K6/K7

51650-45G00

1
Out of stock

1

SHAFT, STEERING | MODEL K8/K9

51650-45G10

1
Out of stock

2

PLATE, STEERING ARM

51653-45G00

1
Out of stock

3

BOLT

09106-08129

1
Out of stock

4

BUSH, STEERING SHAFT HOLDER This part replaces 51678-31G00.

51678-31G01

1
Out of stock

5

HOLDER, STEERING SHAFT

51670-31G00

1
Out of stock

6

HOLDER, STEERING SHAFT FRONT

51673-31G00

1
Out of stock

7

BOLT

01550-0865A

2
Out of stock

8

O RING

09280-20004

1
Out of stock

9

BUSH, STEERING SHAFT LOWER (24X30X32.2)

51661-31G00

1
Out of stock

10

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

1
Out of stock

11

SEAL, DUST | MODEL K6/K7 This part replaces 51663-31G00.

51663-31G11

1
Out of stock

11

SEAL, DUST | MODEL K8/K9 This part replaces 51663-31G10.

51663-31G11

1
Out of stock

12

WASHER

09160-14062

1
Out of stock

13

NUT

09159-14027

1
Out of stock

14

COTTER PIN

04111-2020A

1
Out of stock

15

CLAMP, HANDLEBAR UPPER (BLACK)

56211-45G20-291

2
Out of stock

16

CLAMP, HANDLE HOLDER | MODEL K6/K7

56211-45G10-291

1
Out of stock

16

CLAMP, HANDLE HOLDER | MODEL K8/K9

56211-45G00-291

1
Out of stock

17

WASHER

09164-08015

4
Out of stock

18

BOLT (8X35)

01550-0835A

4
Out of stock

19

BOLT, HANDLE HOLDER | MODEL K6/K7

01500-1035A

2
Out of stock

19

2

$5.83

In stock

20

WASHER | MODEL K6/K7/K9

09160-10128-XC0

2
Out of stock

20

WASHER | MODEL K8

09160-10035

2
Out of stock

21

NUT

09159-10115

2
Out of stock

22

PLATE, STEERING SHAFT

51680-45G00

1
Out of stock

23

CUSHION,UPR BRA | MODEL K8/K9 This part replaces 56240-45G00.

56240-45G01

4
Out of stock

24

SPACER | MODEL K8/K9

56243-45G00

2
Out of stock
