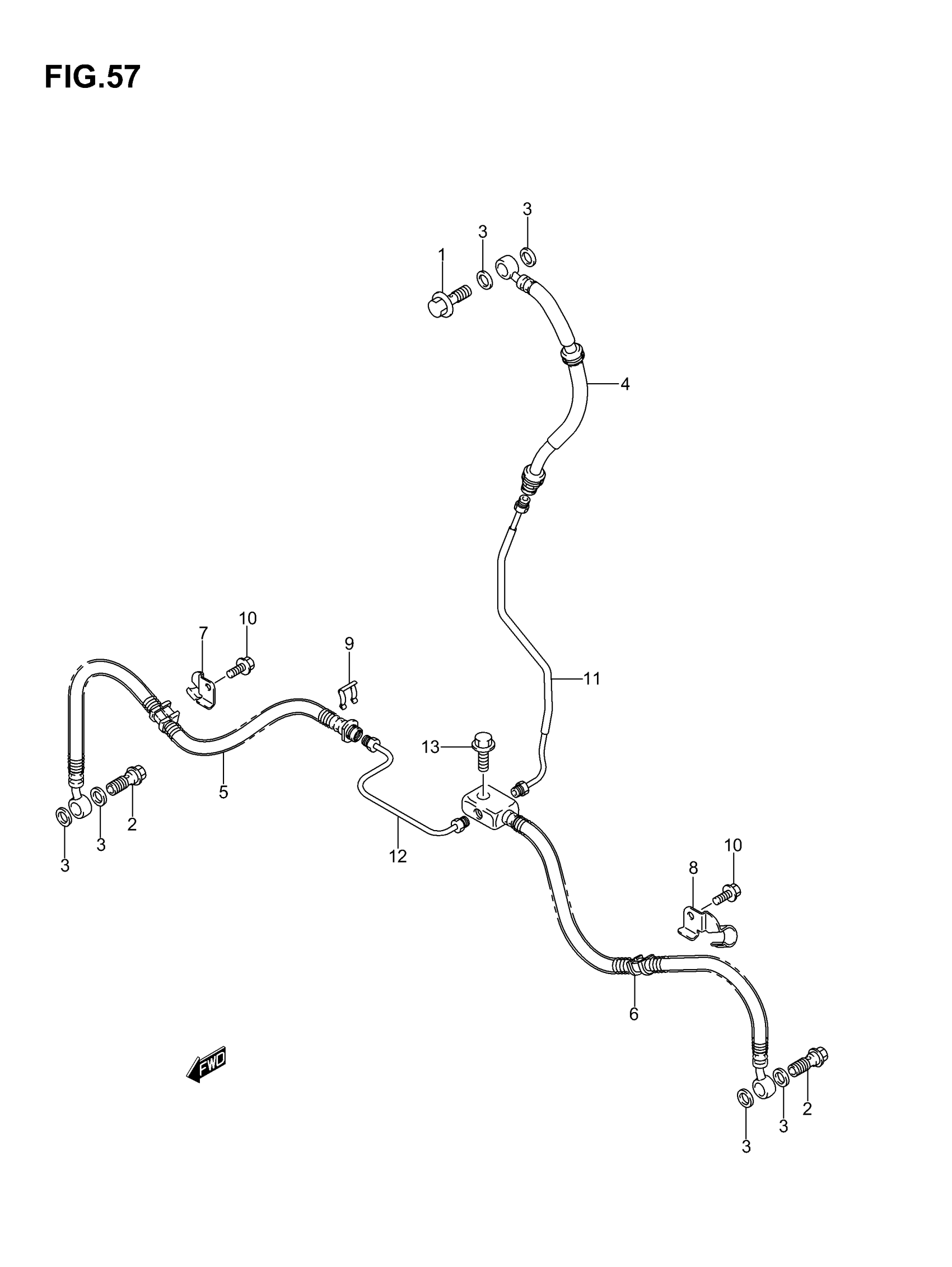

Suzuki LT-F500F (2007) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION | MODEL K4/K5/K6 This part replaces 09360-10041.

09360-10061

$5.89

1

BOLT, UPPER | MODEL K7

09360-10062

$5.81

2

UNION | MODEL K4/K5/K6 This part replaces 09360-10042.

09360-10062

$5.81

2

BOLT, LOWER | MODEL K7

09360-10062

$5.81

3

WASHER (10X15X1.5)

09161-10009

$1.83

4

HOSE, FRONT BRAKE NO.1 | MODEL K4/K5/K6 This part replaces 59480-03G10.

59480-03G20

$27.05

4

HOSE, FRONT BRAKE NO.1 | MODEL K7

59480-03G20

$27.05

5

HOSE, FRONT BRAKE NO.2 RH | MODEL K4/K5/K6 This part replaces 59240-03G10.

59240-03G20

Unavailable

5

HOSE, FRONT BRAKE NO.2 RH | MODEL K7

59240-03G20

Unavailable

6

HOSE, FRONT BRAKE NO.2 LH | MODEL K4/K5/K6 This part replaces 59440-03G10.

59440-03G20

Unavailable

6

HOSE, FRONT BRAKE NO.2 LH | MODEL K7

59440-03G20

Unavailable

7

CLAMP, HOSE NO.2 RH

59261-38F00

Unavailable

8

CLAMP, HOSE NO.2 LH

59271-38F00

$12.35

9

E RING

09383-13003

$2.44

10

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

11

PIPE, FRONT BRAKE RH

59250-03G00

Unavailable

12

PIPE, FRONT BRAKE LH

59450-03G00

$16.45

13

BOLT This part replaces 01550-08253.

01550-0825A

$2.31
