2003 Suzuki LT-F500F Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

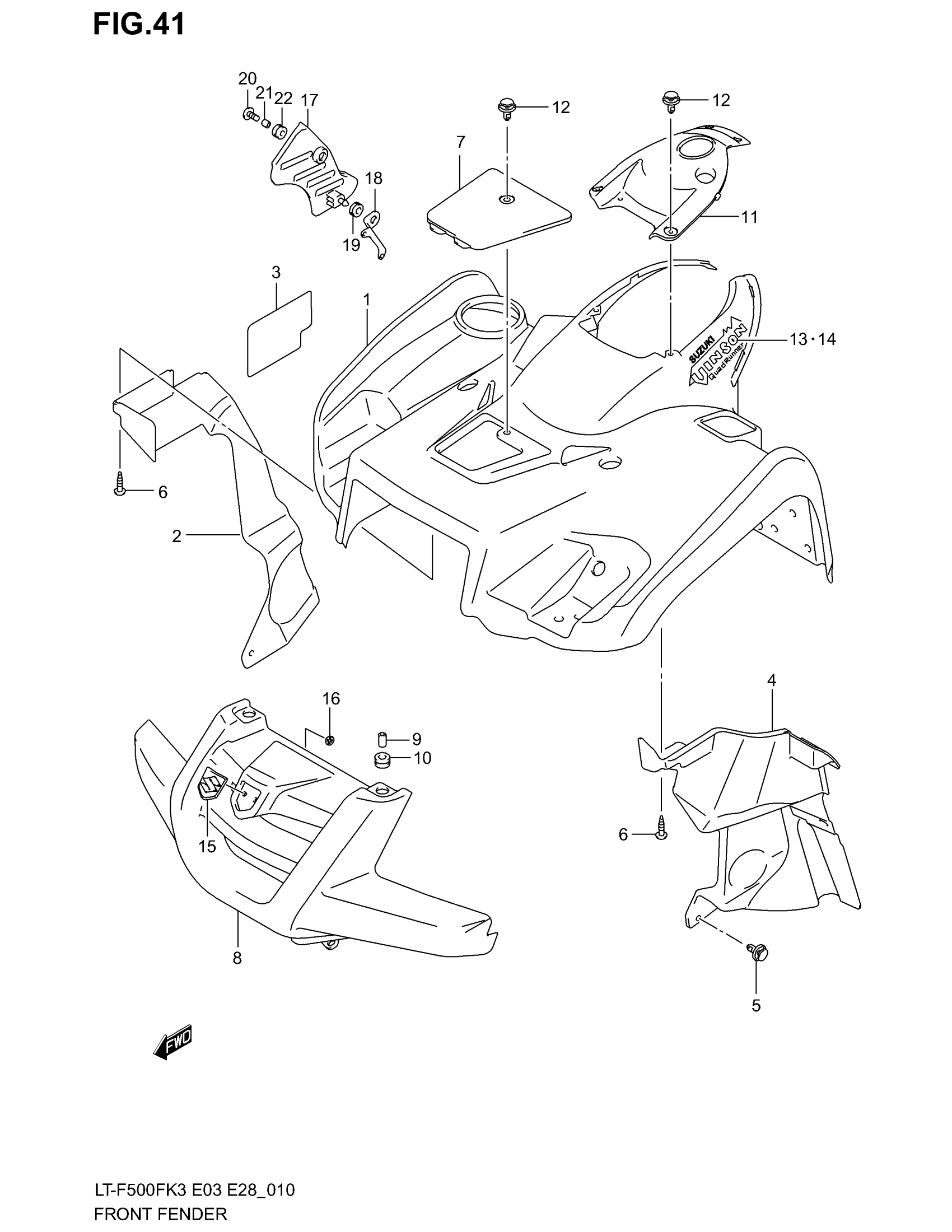

2003 Suzuki LT-F500F Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER,FRONT This part replaces 53111-03G20-YU1.

53111-03G21-YU1

1
Out of stock

1

1

$606.87

In stock

1

FENDER, FRONT This part replaces 53111-03G20-YT9.

53111-03G21-YT9

1
Out of stock

2

MUDFLAP, INNER RH | Includes Item(s) 3 This part replaces 53410-03G01.

53410-03G02

1
Out of stock

3

SHIELD

63268-09F00

1

$29.67

In stock

4

MUDFLAP, INNER LH

53421-03G00

1

$45.93

In stock

5

CLIP

09409-08335

3
Out of stock

6

3

$2.10

In stock

7

LID (YELLOW) This part replaces 53341-03G00-YU1.

53341-03G01-YU1

1
Out of stock

7

LID (GREEN) This part replaces 53341-03G00-YT8.

53341-03G01-YT8

1
Out of stock

7

LID (RED) This part replaces 53341-03G00-YT9.

53341-03G01-YT9

1
Out of stock

8

GRILLE, FRONT (BLACK)

53118-03G00-291

1
Out of stock

9

SPACER

09180-08188

2

$2.81

In stock

10

2

$2.05

In stock

11

FENDER,CENTER ( This part replaces 53119-03G00-YU1.

53119-03G01-YU1

1
Out of stock

11

FENDER,CENTER This part replaces 53119-03G00-YT8.

53119-03G01-YT8

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 53119-03G00-YT9.

53119-03G01-YT9

1
Out of stock

12

CLIP

09409-07333

4
Out of stock

13

EMBLEM, RH | FOR YU1

68151-03G00-YBP

1
Out of stock

13

EMBLEM, RH | FOR YT8

68151-03G00-YBR

1
Out of stock

13

EMBLEM, RH | FOR YT9

68151-03G00-YBS

1
Out of stock

14

EMBLEM, LH | FOR YU1

68152-03G00-YBP

1
Out of stock

14

EMBLEM, LH | FOR YT8

68152-03G00-YBR

1
Out of stock

14

EMBLEM, LH | FOR YT9

68152-03G00-YBS

1
Out of stock

15

EMBLEM, FRONT

68151-38F00

1

$40.32

In stock

16

2

$1.90

In stock

17

GUARD, MUFFLER SIDE

53441-03GF0

1
Out of stock

18

BRACKET

53451-03GF0

1
Out of stock

19

CUSHION, UPPER

09320-09016

1
Out of stock

20

SCREW

09136-06081

1

$2.47

In stock

21

SPACER

09180-06263

1
Out of stock

22

CUSHION

09320-08018

1
Out of stock
