2002 Suzuki LT-F500F Handle Lever Diagram

← All diagrams

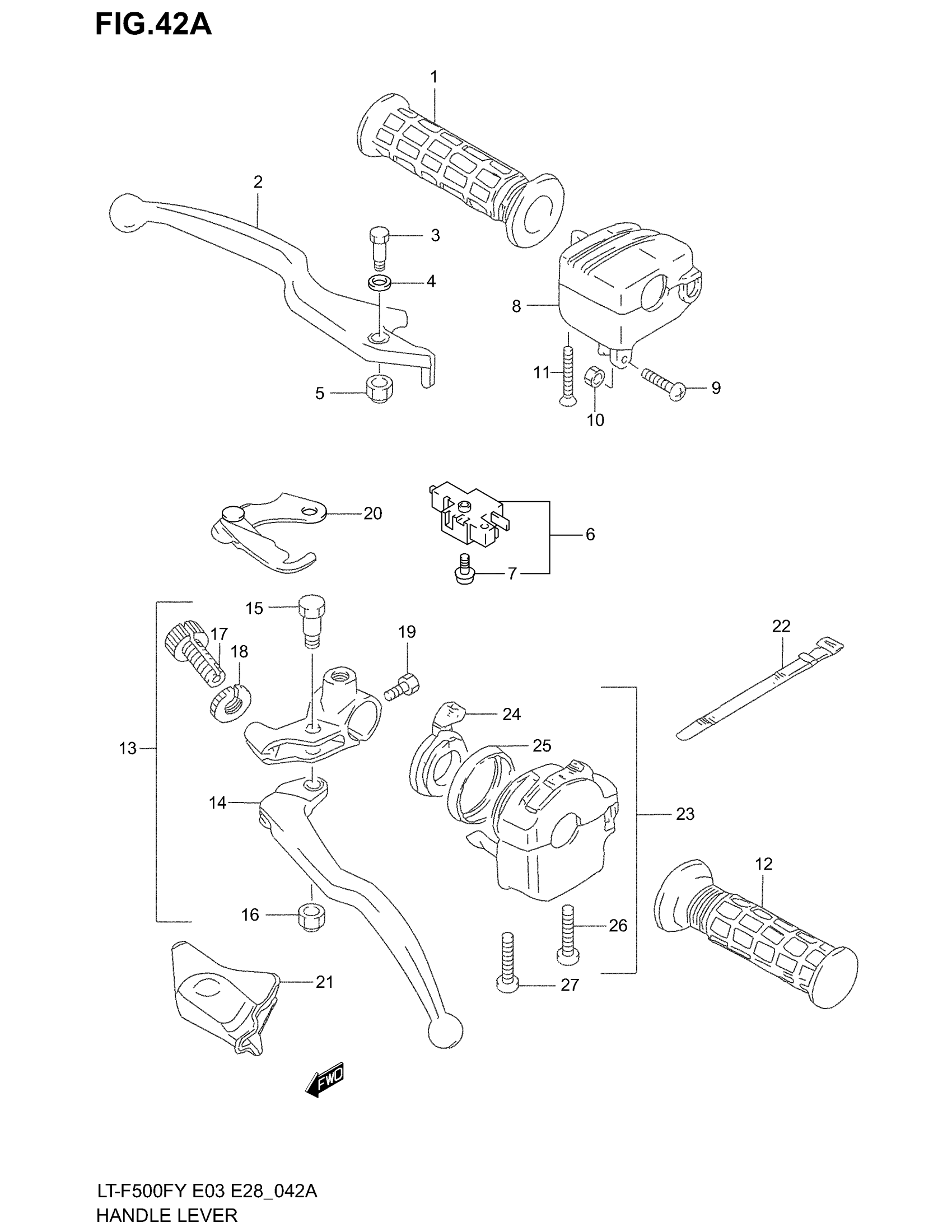

Find the part on the Handle Lever diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F500F Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$11.70

In stock

2

LEVER, BRAKE

57421-39D10

1
Out of stock

3

BOLT

09111-06075

1

$8.28

In stock

4

SPACER

57349-38F00

1
Out of stock

5

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

6

SWITCH ASSY,FR BRAKE | Includes Item(s) 7 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

7

SCREW

57465-17C00

1
Out of stock

8

1

$128.28

In stock

9

SCREW

09125-05066

1

$1.76

In stock

10

NUT

09140-05006

1

$2.77

In stock

11

SCREW, CASE

02132-05307

2

$1.63

In stock

12

1

$11.70

In stock

14

LEVER

57620-24501

1
Out of stock

15

BOLT

57431-29502

1

$8.65

In stock

16

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

19

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

20

STOPPER, BRAKE

57790-09F00

1
Out of stock

21

COVER, BRAKE DUST

57541-09F00

1
Out of stock

22

CLAMP

09407-12402

1
Out of stock

24

LEVER, CHOKE

37571-19B01

1
Out of stock

25

COVER, CHOKE

37576-19B01

1
Out of stock

26

SCREW

02112-05407

1
Out of stock

27

SCREW

02112-05457

1
Out of stock
