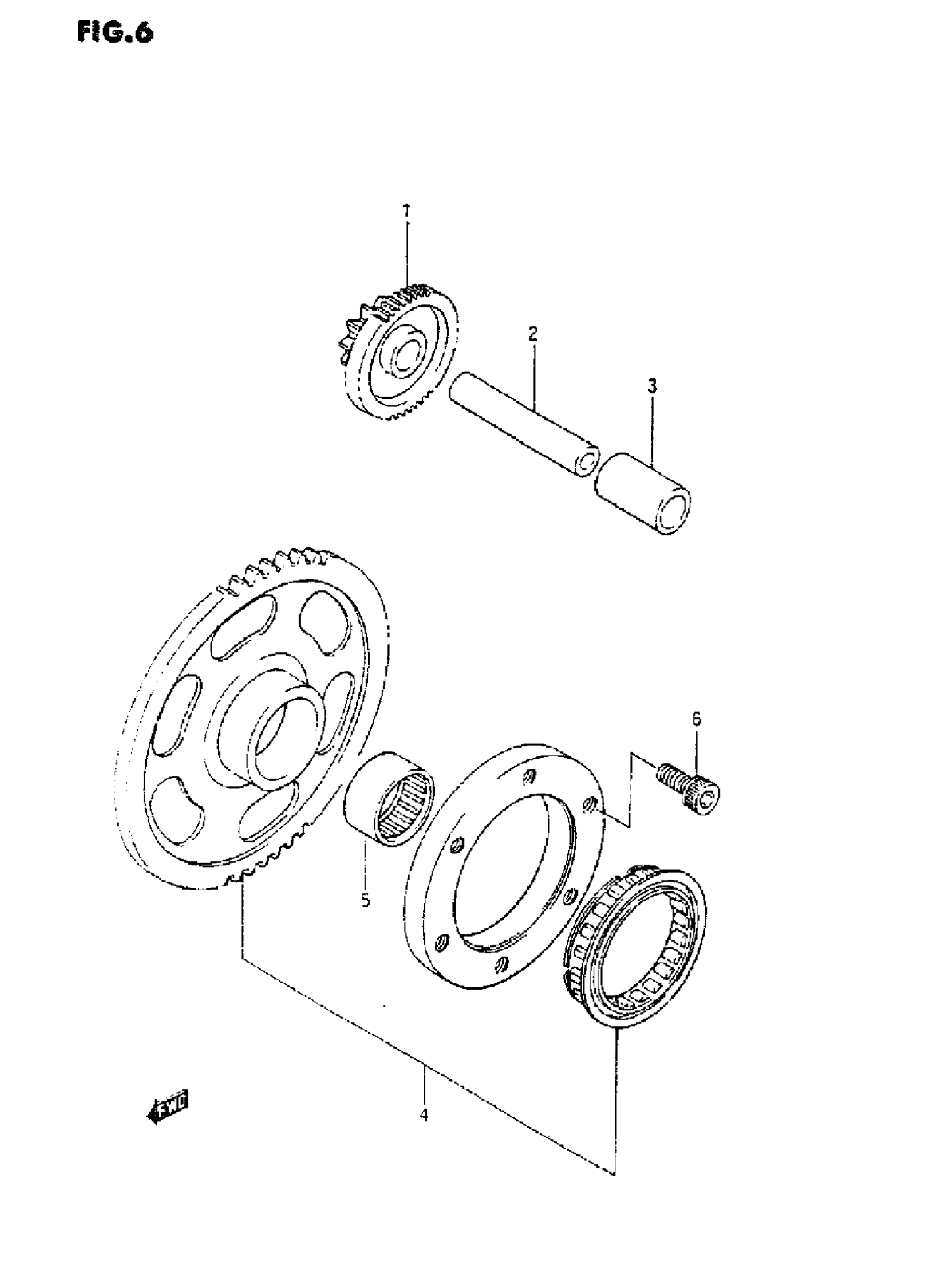

Suzuki LT-F4WDX (1995) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE (NT:13/49) This part replaces 12611-19B00.

12611-19B02

$89.08

2

PIN

09206-13016

$9.95

3

SPACER

09180-13009

$14.00

4

CLUTCH SET, STARTER

12600-19810

$352.78

5

BEARING

09263-25049

$36.57

6

BOLT | MODEL M/N/P/R This part replaces 09106-08043.

07130-0816A

$2.90

6

BOLT | MODEL S This part replaces 07130-08163.

07130-0816A

$2.90
