1995 Suzuki LT-F4WDX Handlebar-Control Cable Diagram

← All diagrams

Find the part on the Handlebar-Control Cable diagram for your 1995 Suzuki LT-F4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

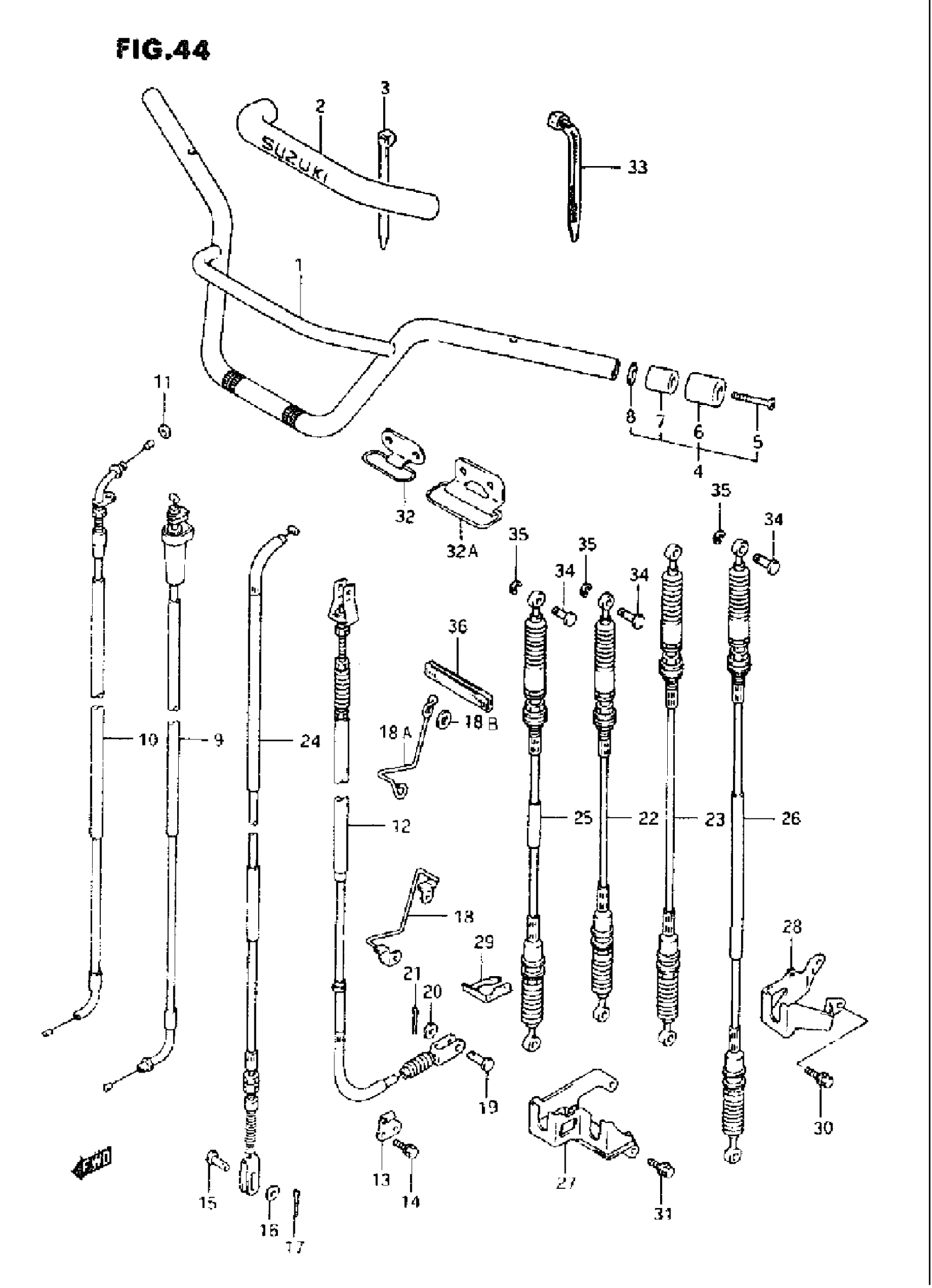

1995 Suzuki LT-F4WDX Handlebar-Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR | ->56110-19B5L-291 This part replaces 56110-19B30-291.

56110-19B32-291

1
Out of stock

1

HANDLEBAR This part replaces 56110-19B31-291.

56110-19B32-291

1
Out of stock

2

PAD, CROSS (OD:30)

56172-19B01-291

1
Out of stock

3

BAND (L:145)

09407-14407

2
Out of stock

4

BALANCER SET,HA | MODEL M/N/P This part replaces 56200-19850.

56200-12813

2
Out of stock

4

BALANCER SET,HA | MODEL R This part replaces 56200-19810.

56200-12813

2
Out of stock

5

SCREW, LOWER | MODEL M/N/P This part replaces 02132-06505.

02122-0650B

2
Out of stock

5

SCREW, LOWER | MODEL R This part replaces 02122-06503.

02122-0650B

2
Out of stock

6

CAP | MODEL M/N/P/R 56274-31300 This part replaces 56274-05350.

56274-31300

2
Out of stock

6

CAP

56274-31300

2
Out of stock

7

BALANCER | MODEL M/N/P/R

56271-49420

2
Out of stock

8

SPACER | MODEL M/N/P/R This part replaces 56275-34400.

56275-34401

2
Out of stock

9

CABLE ASSY, THROTTLE

58300-19B20

1

$21.69

In stock

10

CABLE, STARTER

58410-19B10

1

$35.61

In stock

11

1

$2.87

In stock

12

1

$141.93

In stock

13

BRACKET, REAR BRAKE CABLE

58575-19B10

1
Out of stock

14

2

$2.42

In stock

14

2

$2.42

In stock

15

2

$2.38

In stock

16

.WASHER | MODEL M/N/P This part replaces 08322-21066.

08322-0106B

2
Out of stock

16

.WASHER | MODEL R/S This part replaces 08322-01063.

08322-0106B

2
Out of stock

17

2

$1.31

In stock

18

GUIDE, REAR BRAKE CABLE | MODEL M/N ->58611-19BO2 W/08322-21063 This part replaces 58610-19B01.

58611-19B02

1
Out of stock

18

GUIDE, REAR BRAKE CABLE | MODEL P/R/S

58611-19B02

1
Out of stock

18

.WASHER | MODEL P/R/S ->08322-01063 This part replaces 08322-21063.

08322-0106B

2
Out of stock

19

PIN

09200-08061

1

$3.80

In stock

20

WASHER | MODEL M/N/P This part replaces 08322-11088.

08322-01087

1
Out of stock

20

1

$2.27

In stock

21

1

$1.31

In stock

22

CABLE, T/M GEAR SHIFT

58680-19B21

1

$232.28

In stock

23

1

$172.80

In stock

24

1

$60.01

In stock

25

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

1
Out of stock

26

CABLE, SUB T/M SHIFT

58880-19B11

1
Out of stock

27

BRACKET, CONTROL CABLE

58870-19B00

1
Out of stock

28

BRACKET, CONTROL CABLE

58873-19B11

1
Out of stock

29

CLIP

09383-19003

4

$5.10

In stock

30

BOLT | MODEL M/N/P This part replaces 01547-06165.

01547-0616B

1
Out of stock

30

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

1
Out of stock

31

BOLT | MODEL M/N/P

01547-06167

1
Out of stock

31

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

1
Out of stock

32

GUIDE, CABLE | MODEL M/N/P ->58620-19BIO This part replaces 58620-19B01.

58620-19B10

1
Out of stock

32

GUIDE, CABLE | MODEL R/S

58620-19B10

1
Out of stock

33

CLAMP, L:125

09407-14403

4
Out of stock

33

CLAMP This part replaces 09407-18403.

09407-18402

1
Out of stock

34

PIN

09208-08008

3

$2.77

In stock

35

3

$1.52

In stock

36

1

$18.70

In stock
