1993 Suzuki LT-F4WDX Frame Diagram

← All diagrams

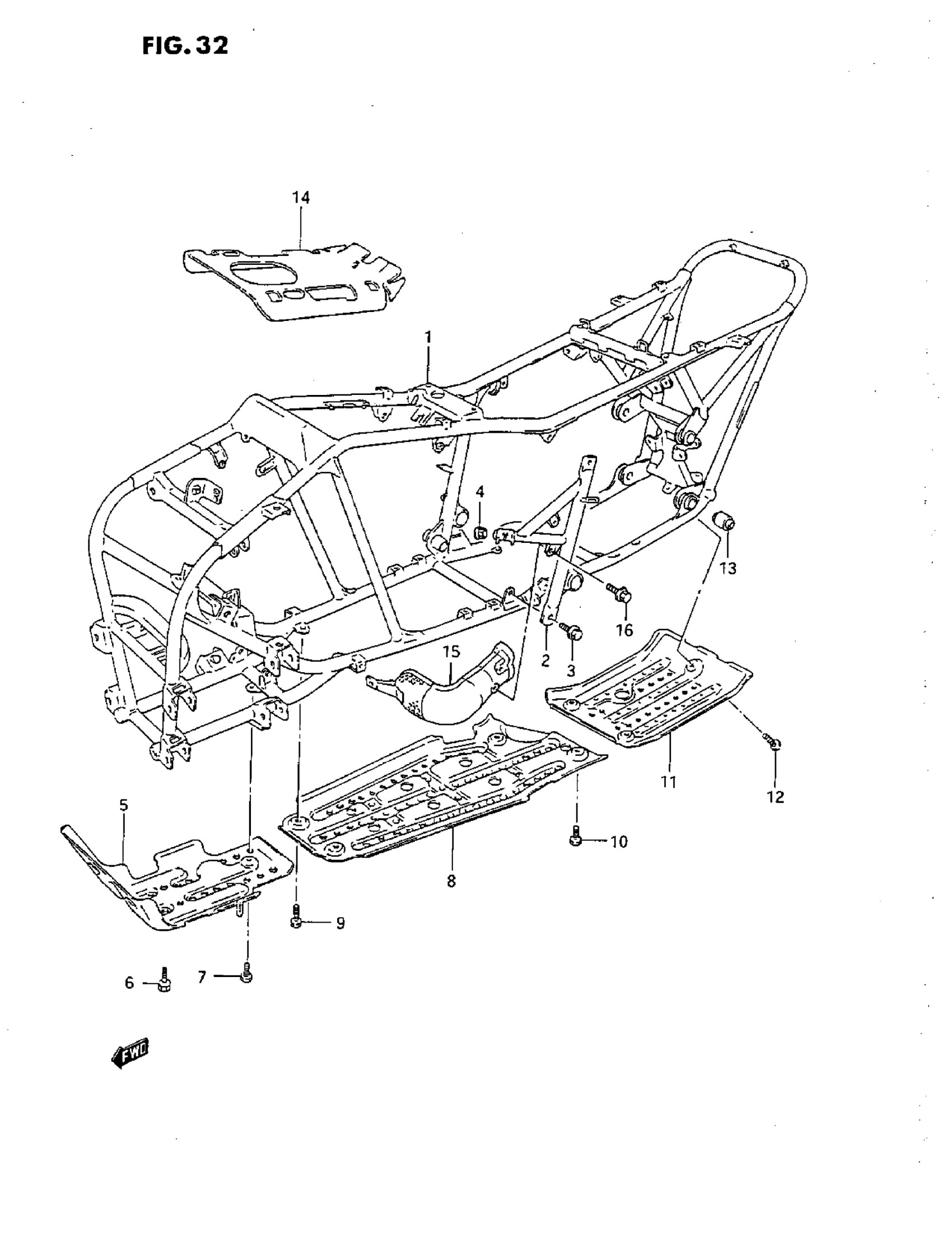

Find the part on the Frame diagram for your 1993 Suzuki LT-F4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki LT-F4WDX Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-39870-019.

41101-39860-019

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL N/P/R This part replaces 41100-39871-019.

41101-39860-019

1
Out of stock

2

PLATE, ENGINE MOUNT LH (BLACK)

41910-39D00-019

1
Out of stock

3

BOLT

09103-10165

2
Out of stock

4

CAP

43978-24500

1
Out of stock

5

PROTECTOR, FRONT This part replaces 42510-19B11.

42510-19B12

1
Out of stock

6

BOLT This part replaces 01177-06126.

01580-0612A

2
Out of stock

7

BOLT This part replaces 01177-06166.

01580-0616A

1
Out of stock

8

PROTECTOR, MIDDLE This part replaces 42560-19B30.

42560-19B31

1
Out of stock

9

BOLT, REAR This part replaces 01177-06206.

01580-0620B

2
Out of stock

10

BOLT This part replaces 01177-06166.

01580-0616A

2
Out of stock

11

PROTECTOR, ENGINE This part replaces 61390-19B01.

61390-19B02

1
Out of stock

12

BOLT This part replaces 01177-06166.

01580-0616A

3
Out of stock

13

BUSH

09319-10064

4
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 47157-19B10.

47157-19B11

1
Out of stock

15

COVER, MUD

42570-39D00

1
Out of stock

16

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

2
Out of stock

16

BOLT | MODEL R This part replaces 01580-06123.

01580-0612A

2
Out of stock
