1998 Suzuki LT-F4WD Differential Gear Diagram

← All diagrams

Find the part on the Differential Gear diagram for your 1998 Suzuki LT-F4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

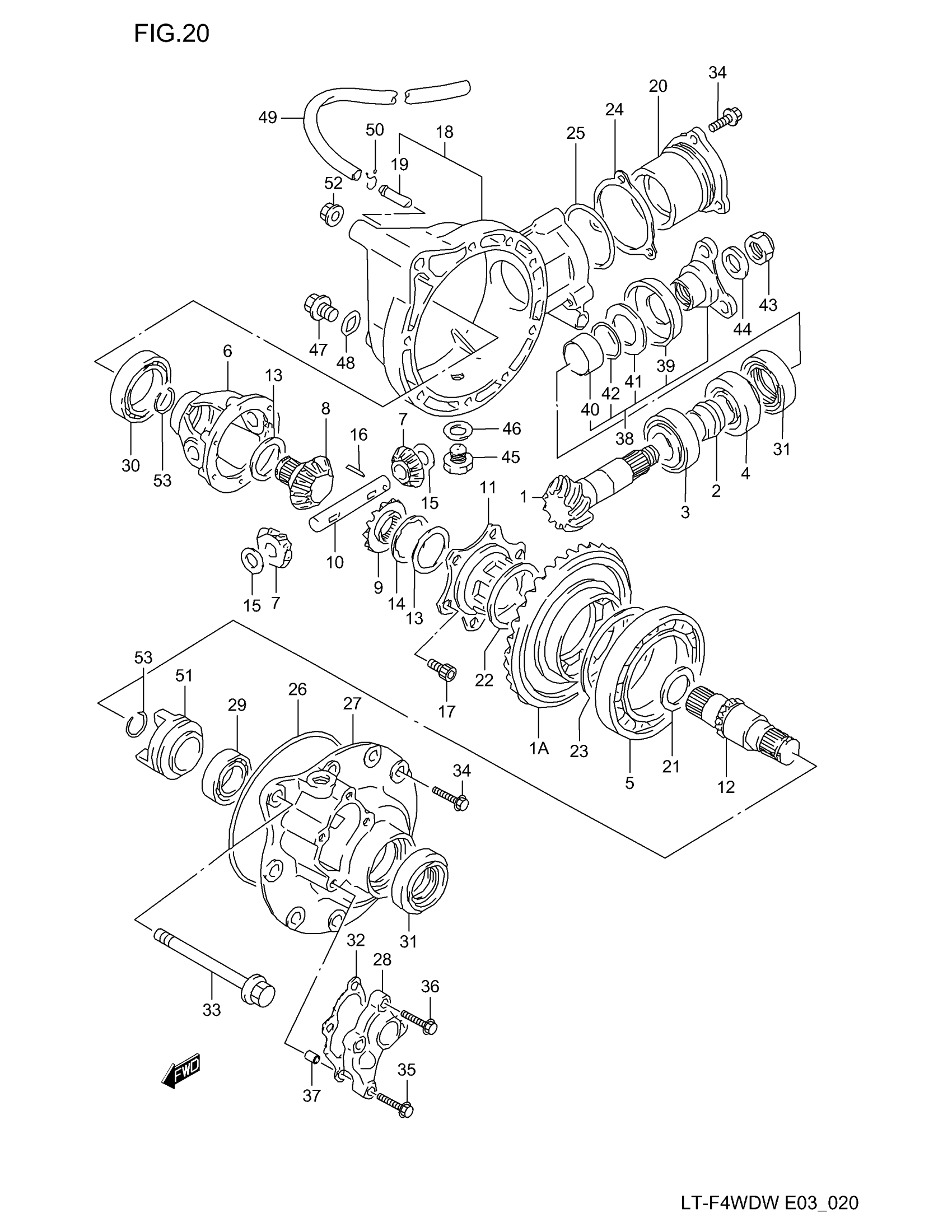

1998 Suzuki LT-F4WD Differential Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, FRONT DRIVE BEVEL | NT:11

27311-19B10

1
Out of stock

1A

GEAR, FRONT DRIVEN BEVEL | NT:34

27321-19B11

1
Out of stock

2

SPACER

09180-25085

1
Out of stock

3

BEARING, FRONT

09265-25013

1
Out of stock

4

BEARING, REAR

09265-25024

1
Out of stock

5

BEARING (70X110X13)

09262-70001

1
Out of stock

6

CASE, DIFFERENTIAL

27411-19B00

1
Out of stock

7

PINION, DIFFERENTIAL SIDE | NT:10

27331-65000

2
Out of stock

8

GEAR, RH (NT:13)

27341-19B10

1
Out of stock

9

GEAR, LH (NT:13)

27341-84212

1
Out of stock

10

SHAFT, PINION

27351-51005

1
Out of stock

11

HUB

27322-19B11

1
Out of stock

12

SHAFT,FR DRIVEN This part replaces 27361-19B10.

27361-19B20

1
Out of stock

13

WASHER (T:0.8)

09160-29011

1
Out of stock

13

WASHER (T:1.0)

09160-29012

1
Out of stock

13

WASHER (T:1.2)

09160-29013

1
Out of stock

14

WASHER

09164-29003

1
Out of stock

15

WASHER (13.3X25X0.85)

09160-13003

2
Out of stock

16

PIN, PINION SHAFT

09202-06022

1
Out of stock

17

BOLT This part replaces 07130-08163.

07130-0816A

6
Out of stock

18

HOUSING, DIFFERENTIAL EAR | Includes Item(s) 19

27450-19B13

1
Out of stock

19

UNION, BREATHER

09364-08003

1
Out of stock

20

HOUSING, DRIVE BEVEL GEAR

27441-19B00

1
Out of stock

21

WASHER

08211-25351

1
Out of stock

22

SHIM SET, FR DRIVEN BVL GR | T:0.35/0.40/0.50/0.60

27326-19810

1
Out of stock

23

SHIM SET, DRIVEN GR | T:0.35/0.40/0.50/0.60

27327-34810

1
Out of stock

24

SHIM SET, FR DRIVE BVL HSG | T:0.15/0.30/0.35/0.40

27445-19810

1
Out of stock

25

O RING (D:2.4,ID:62.6)

09280-63004

1
Out of stock

26

O RING (D:2.4,ID;131.4)

09280-00022

1
Out of stock

27

CASE, DRIVEN GEAR BEARING

27461-19B10

1
Out of stock

28

COVER

27471-19B01

1
Out of stock

29

BEARING, LH

08113-60050

1
Out of stock

30

BEARING, RH

09262-40006

1
Out of stock

31

OIL SEAL

09283-34008

3
Out of stock

32

GASKET, CASE COVER

27473-19B11

1
Out of stock

33

BOLT (L:110)

09103-10148

2
Out of stock

34

BOLT This part replaces 01550-08253.

01550-0825A

11
Out of stock

35

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

2
Out of stock

36

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

2
Out of stock

37

PIN

04211-09109

2
Out of stock

38

FLANGE, DRIVE BEVEL GEAR | Includes Item(s) 39 - 42 This part replaces 27180-19B00.

27180-19B10

1
Out of stock

39

PLATE

09165-30002

1
Out of stock

40

COLLAR

27591-19B01

1
Out of stock

41

PLATE, OIL SEAL

27592-19B00

1
Out of stock

42

O RING

09280-28007

1
Out of stock

43

NUT

09159-16004

1
Out of stock

44

WASHER (16X30X3)

09160-16026

1
Out of stock

45

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

46

GASKET

09168-14002

1
Out of stock

47

PLUG, FILLER

09247-16004

1
Out of stock

48

O RING (D:2.4,ID:16.8)

09280-17002

1
Out of stock

49

HOSE(7X10.2X200 | L:2000!1140 This part replaces 09352-70103-00B.

09352-70104-00B

1
Out of stock

50

CLIP

09401-10403

1
Out of stock

51

DOG

27371-19B01

1
Out of stock

52

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock

53

CIRCLIP

09381-22007

2
Out of stock
