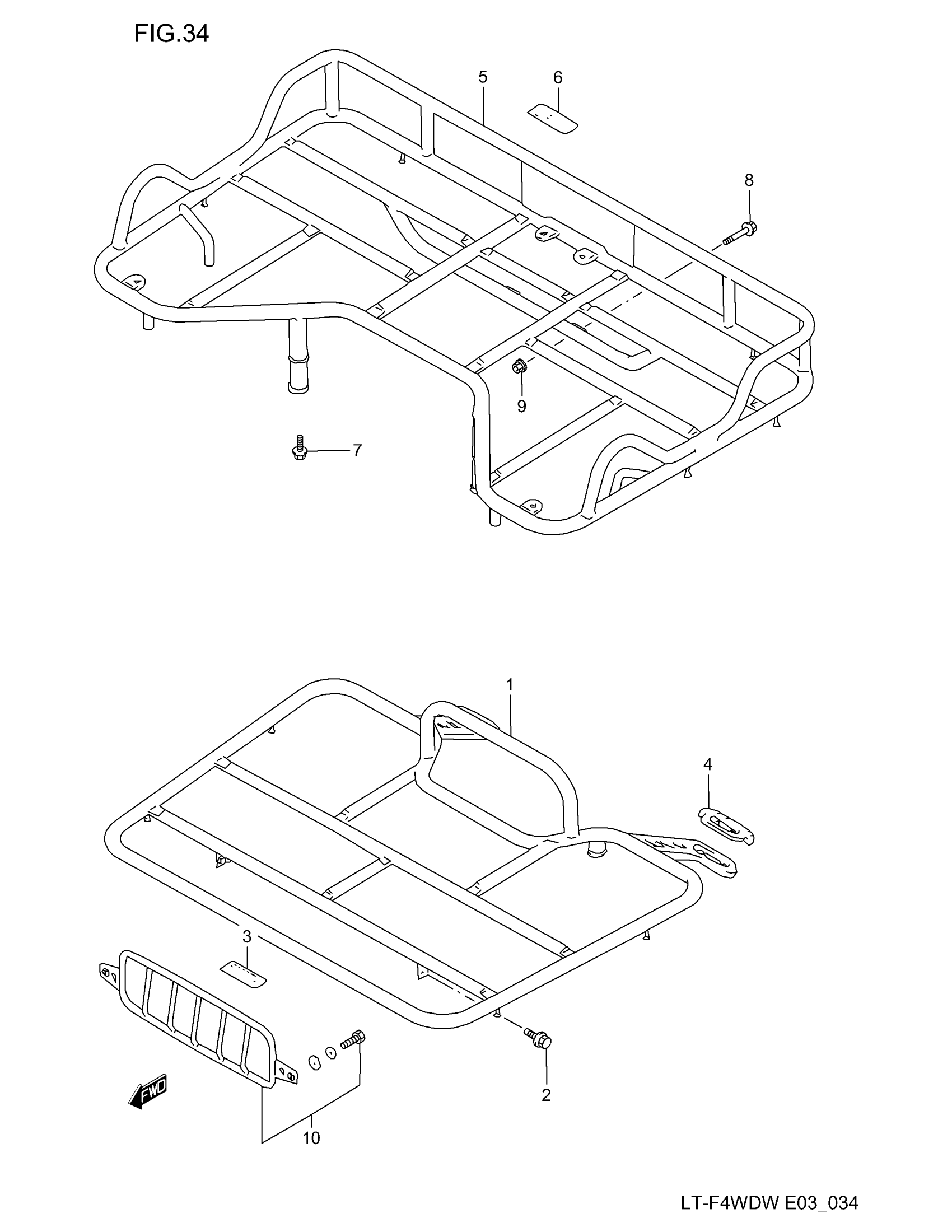

Find the part on the Carrier diagram for your 1998 Suzuki LT-F4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-F4WD Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT

46410-39D50

1
Out of stock

2

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

3

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

1
Out of stock

4

KNEE PAD, FRONT CARRIER

46480-19B00

2
Out of stock

5

CARRIER, REAR

46310-39D50

1
Out of stock

6

LABEL,REAR CARR This part replaces 68391-19B00.

68391-19B01

1
Out of stock

7

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

8

BOLT, REAR

09103-08332

2
Out of stock

9

NUT This part replaces 08319-31083.

08319-3108A

2
Out of stock

10

GUARD SET, HEAD LAMP | OPT

48500-19841

1
Out of stock
