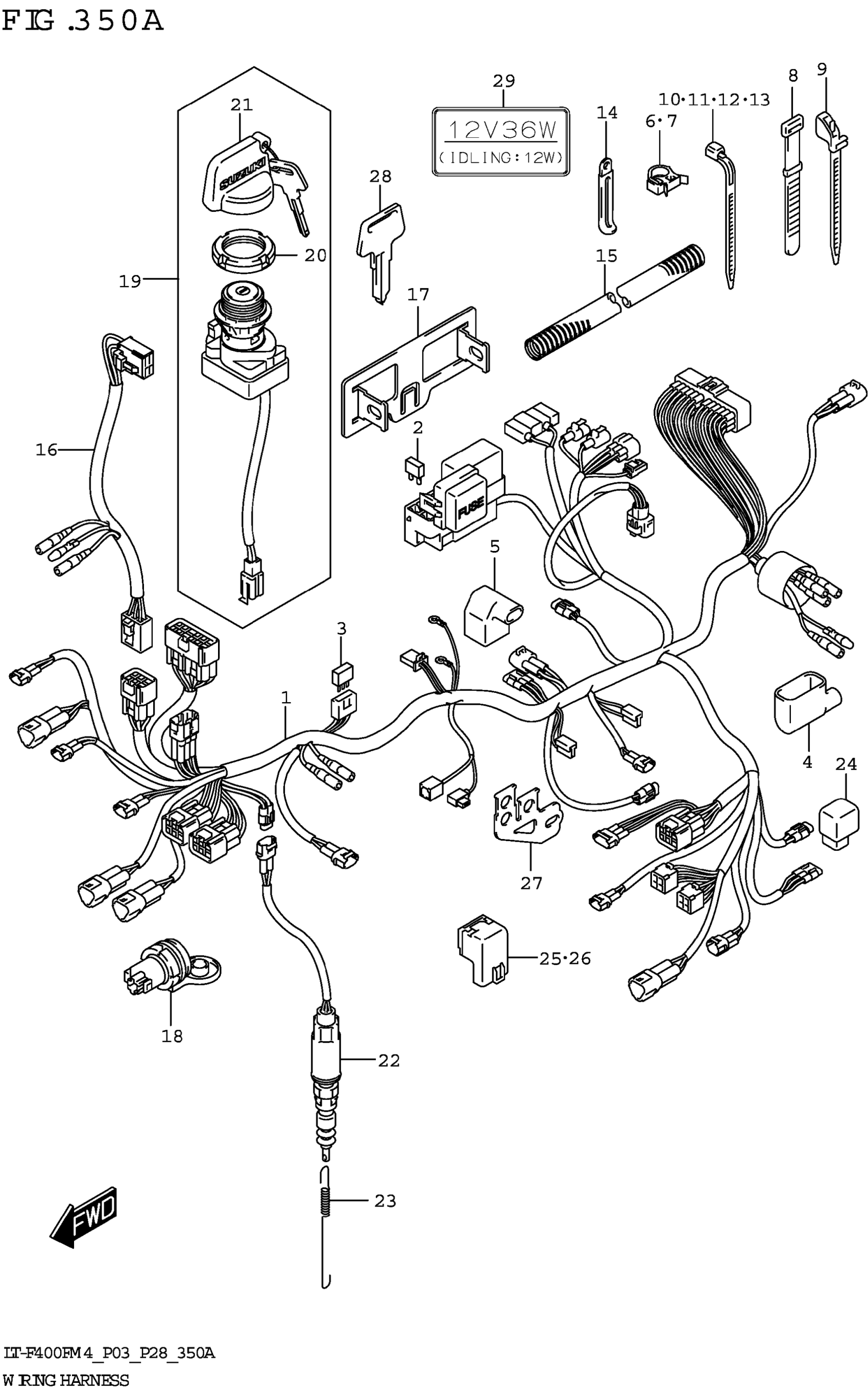

Suzuki LT-F400FM4 (2024) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING

36610-27HH2

$458.53

2

.FUSE (10A)

09481-10501

$2.07

3

.DIODE

36611-38A10

$12.39

4

.PROTECTOR,WIRING HARNESS

36618-25H00

$5.55

5

.BOOT,CONNECTOR

36618-27H00

$1.64

6

CLAMP (D:20)

09403-20403

$4.00

7

CLAMP

09403-30403

Unavailable

8

CLAMP (L:187)

09407-18401

$1.86

9

CLAMP (L:116)

09407-12407

Unavailable

10

CLAMP (L:125)

09407-14403

$2.24

11

CLAMP (L:165)

09407-18402

$2.21

12

CLAMP (L:235)

09407-25401

$4.21

13

CLAMP (L:95)

09407-11401

$2.87

14

CLAMP (L:45)

09404-08211

$2.43

15

GUIDE,WIRING HARNESS

36619-27H00

Unavailable

16

WIRE,FRONT BRAKE SW LEAD

36855-27H00

$55.55

17

BRACKET,FUSE BOX

36744-38F00

$12.83

18

TERMINAL,POWER SOURCE

38850-03G20

$30.00

19

SWITCH ASSY,IGNITION

37110-38F01

$75.25

20

.NUT,IGNITION SWITCH

37112-24500

$12.60

21

.MASCOT,KEY

37142-19B01

$4.56

22

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

23

SPRING

09443-06016

$3.58

24

RELAY,NEUTRAL START

38730-09F00

$42.62

25

RELAY ASSY | FAN MOTOR

38740-31G11

$25.85

26

RELAY ASSY | FUEL PUMP

38740-31G11

$25.85

27

BRACKET, RELAY

38741-27H20

Unavailable

28-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

28-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

28-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

28-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38

29

LABEL,MAX AMP

39412-34K30

$5.13
