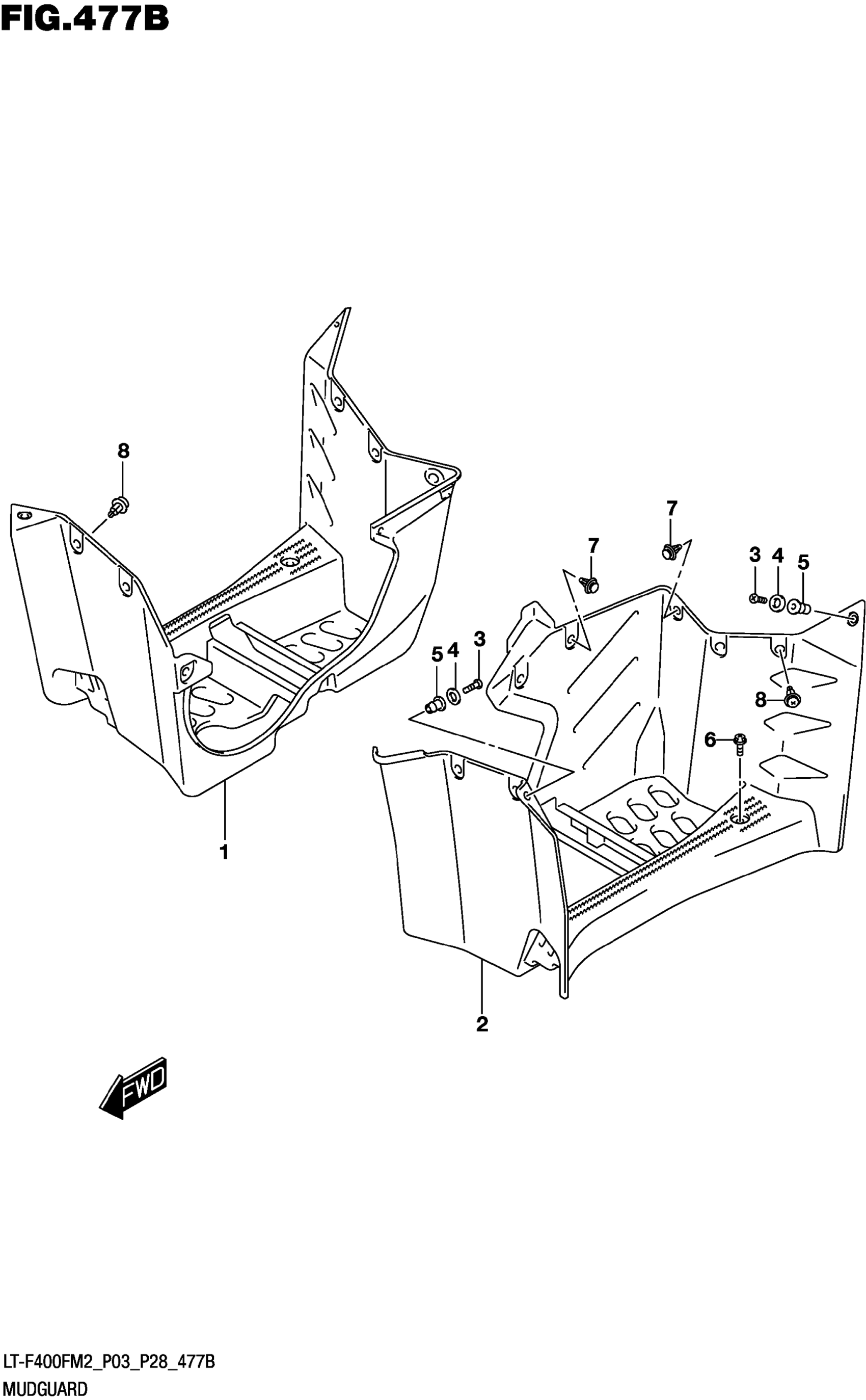

Find the part on the Mudguard diagram for your 2022 Suzuki LT-F400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-F400FM2 Mudguard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUDGUARD,FOOTREST,R (BLACK)

63331-27H12-291

1
Out of stock

2

MUDGUARD,FOOTREST,L (BLACK)

63341-27H02-291

1
Out of stock

3

SCREW

02142-0520B

4
Out of stock

4

WASHER (5.5X20X1.4)

09160-05046

4
Out of stock

5

NUT (M5)

09159-05019

4
Out of stock

6

BOLT (6X16.5)

09111-06094

6
Out of stock

7

CLIP

09409-08335

8
Out of stock

8

CLIP

09409-10306

8
Out of stock
