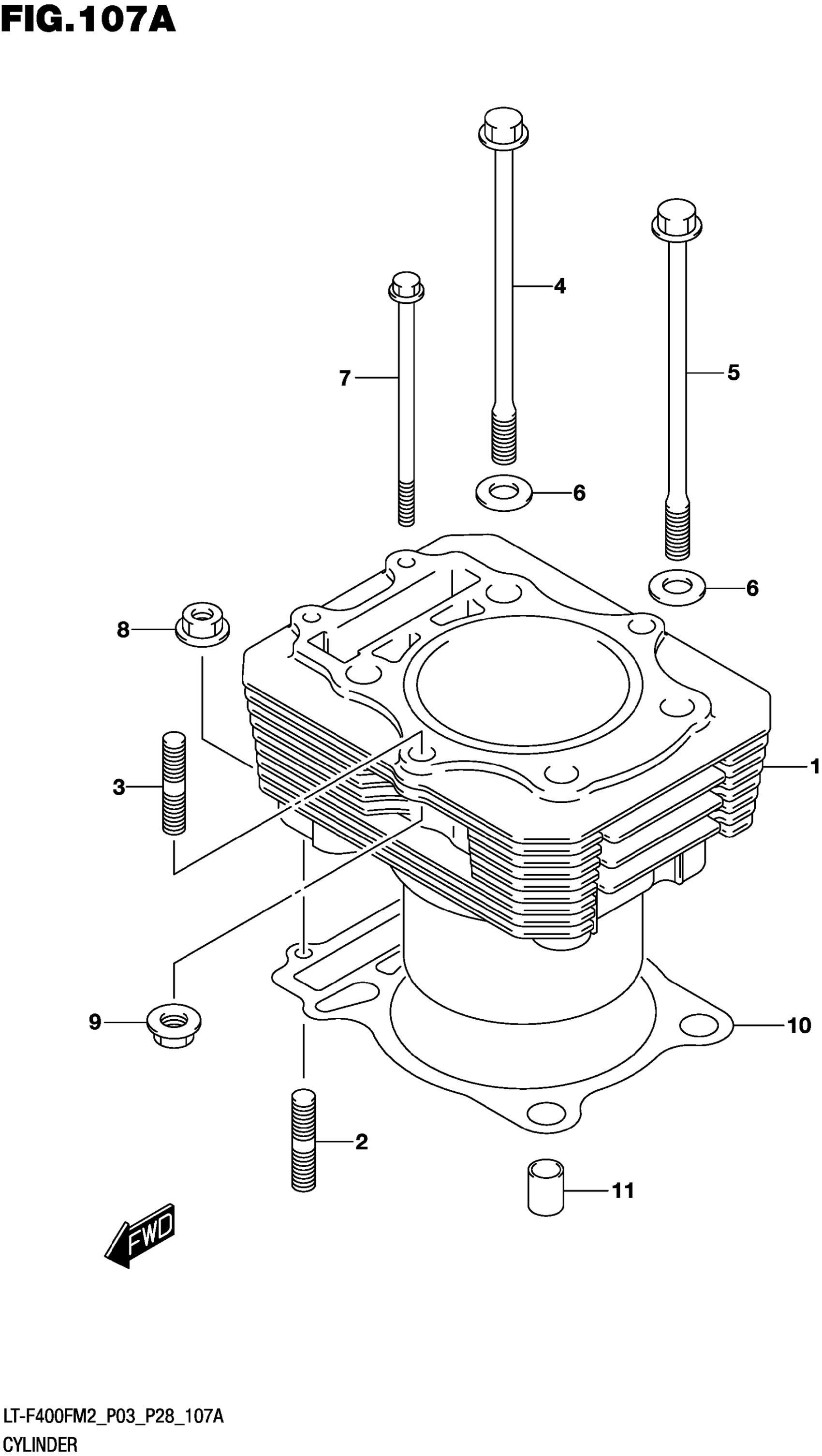

Suzuki LT-F400FM2 (2022) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-27H00-0F0

$766.43

2

BOLT,STUD

01421-0620A

$1.89

3

BOLT,STUD (L:30)

09108-08142

$2.87

4

BOLT (10X180)

09103-10178

$13.30

5

BOLT (10X170)

09103-10321

$16.60

6

WASHER (10.5X22X2.3)

09160-10039

$2.24

7

BOLT (6X115)

09103-06167

$3.90

8

NUT (6X12)

08316-1006A

$2.19

9

NUT

08316-1008A

$2.47

10

.GASKET,CYLINDER

11241-38F00

$12.18

11

PIN (10.4X13X18)

04211-13189

$2.19
