2021 Suzuki LT-F400FM1 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2021 Suzuki LT-F400FM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

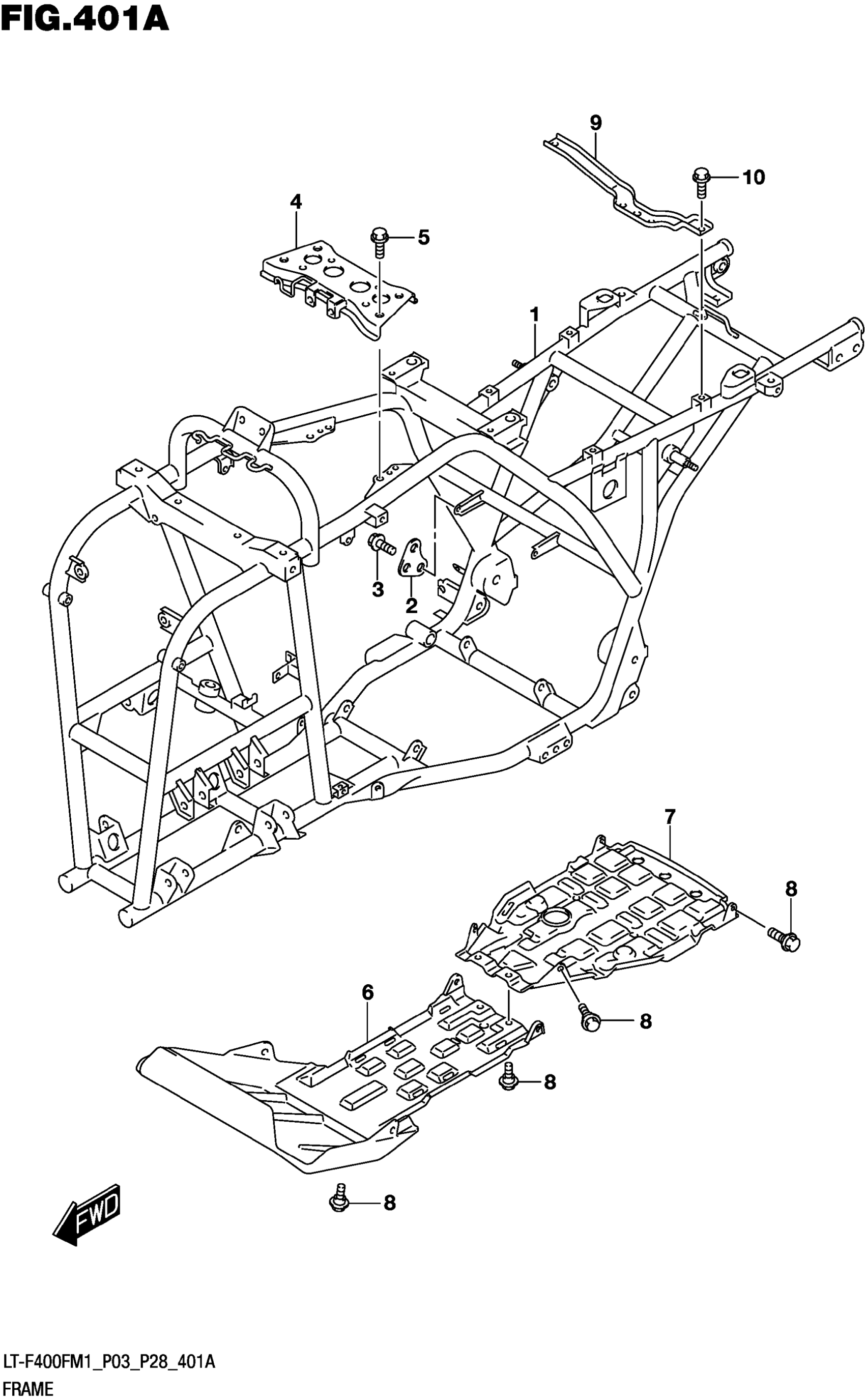

2021 Suzuki LT-F400FM1 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-27H11-019

1
Out of stock

2

PLATE,ENG MTG REAR RH

41981-38FA0

1
Out of stock

3

BOLT (8X16)

09103-08441

4
Out of stock

4

PLATE,ENG MTG UPPER

41990-27H10

1
Out of stock

5

BOLT (8X16)

09103-08441

2
Out of stock

6

PROTECTOR,FRONT This part replaces 42521-27H00.

42521-27H00-291

1
Out of stock

7

PROTECTOR,ENGINE This part replaces 42511-38F03.

42511-38F04

1
Out of stock

8

BOLT (6X12) This part replaces 09111-06063.

09111-06085

10
Out of stock

9

PLATE,BATTERY

41561-27H00

1
Out of stock

10

BOLT

01550-0616A

2
Out of stock
