2019 Suzuki LT-F400FL9 Shift Lever Diagram

← All diagrams

Find the part on the Shift Lever diagram for your 2019 Suzuki LT-F400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

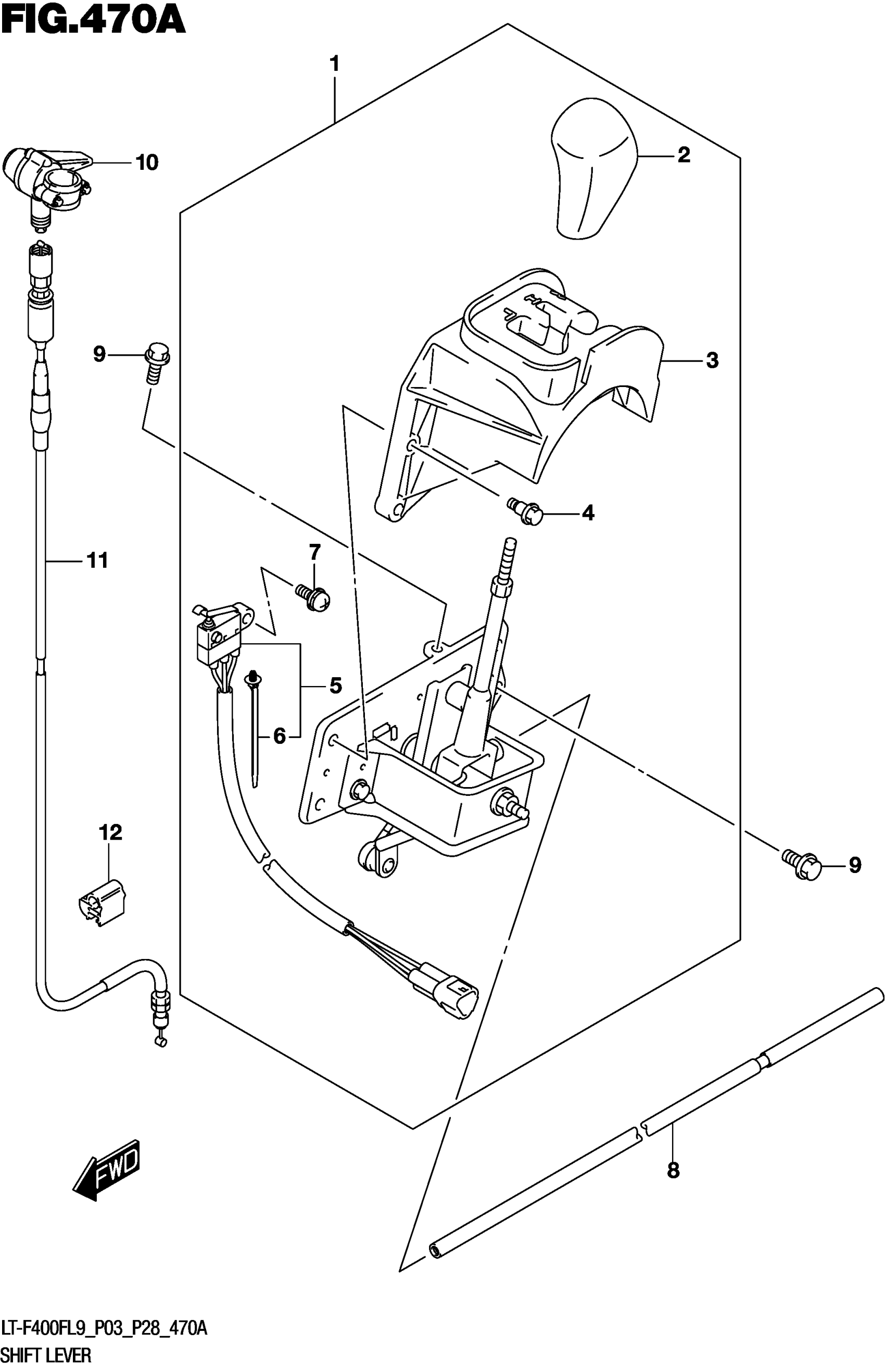

2019 Suzuki LT-F400FL9 Shift Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER ASSY, TRANSMISSION

57800-27H21

1
Out of stock

2

.KNOB,T/M LEVER

57830-27H00

1
Out of stock

3

.COVER,T/M LEVER GATE

57941-27H00

1
Out of stock

4

.BOLT (6X20.6)

09111-06079

4
Out of stock

5

.SWITCH ASSY,REVERSE This part replaces 57960-03G10.

57960-03G11

1
Out of stock

6

CLAMP (L:170)

09407-17403

1
Out of stock

7

.SCREW

02112-7310A

1
Out of stock

8

ROD,T/M LEVER

57911-27H00

1
Out of stock

9

BOLT

01550-0830A

2
Out of stock

10

LEVER, TRANSFER

57920-38F20

1
Out of stock

11

CABLE,TRANSFER SHIFT

58690-27H00

1
Out of stock

12

CLAMP

09403-10405

1
Out of stock
