2015 Suzuki LT-F400FL5 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2015 Suzuki LT-F400FL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

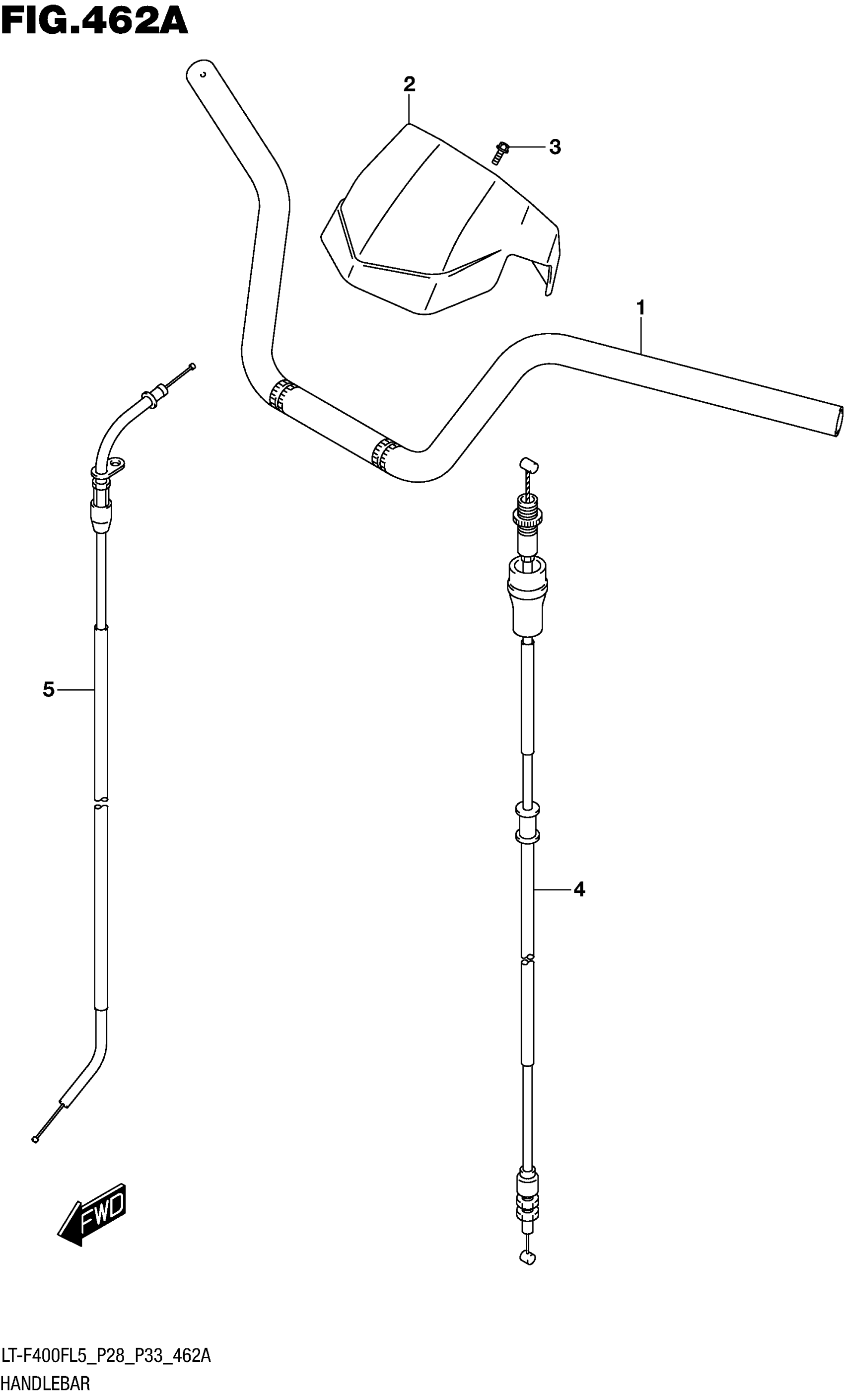

2015 Suzuki LT-F400FL5 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE BAR This part replaces 56111-38F20.

56111-38F21

1
Out of stock

2

COVER,STEERING HEAD

56171-27H20

1
Out of stock

3

BOLT (6X14.6)

09111-06054

2
Out of stock

4

CABLE ASSY,THROTTLE This part replaces 58300-27H10.

58300-27H11

1
Out of stock

5

CABLE,STARTER

58410-27H10

1
Out of stock
