2013 Suzuki LT-F400FL3 Magneto Diagram

← All diagrams

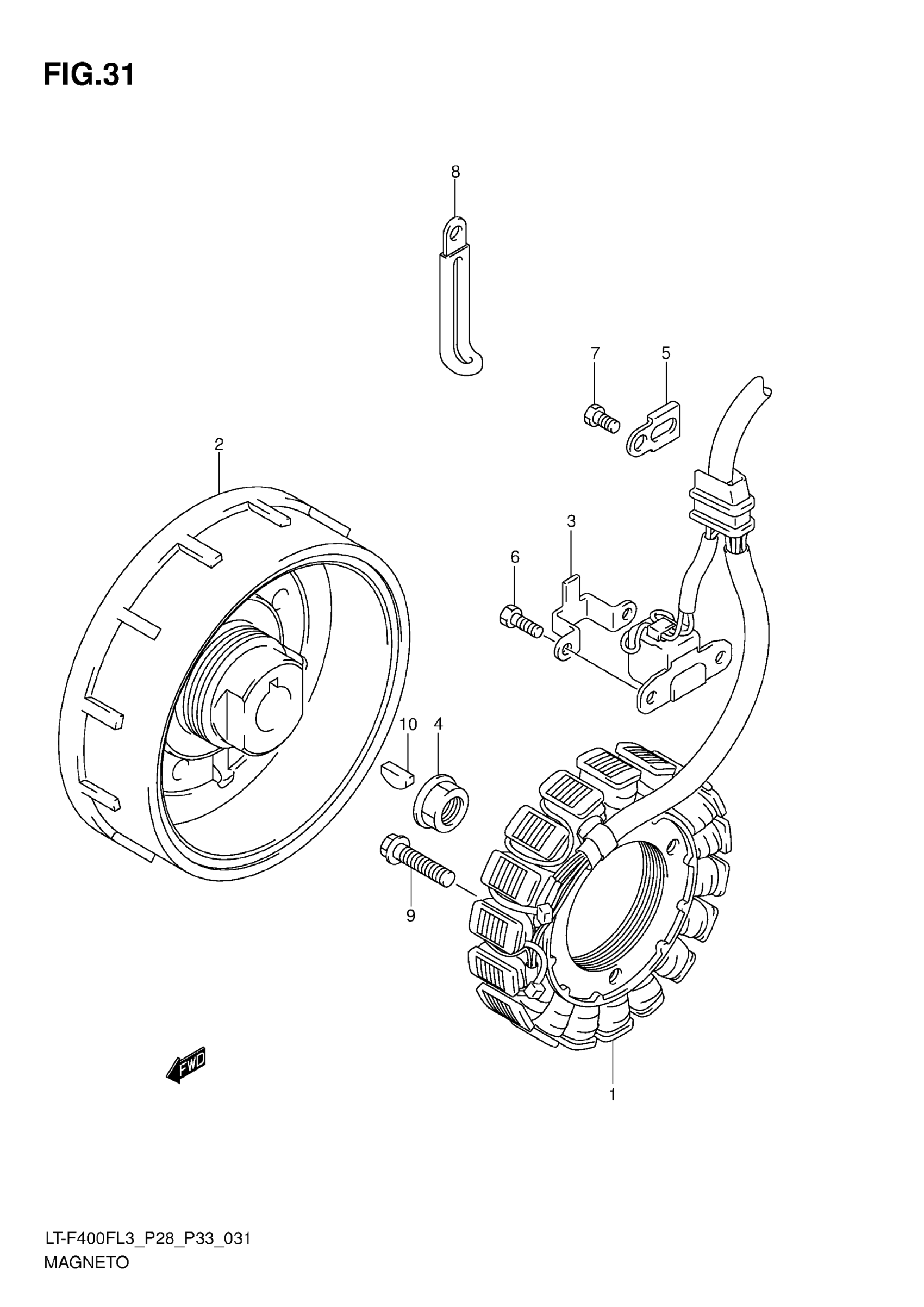

Find the part on the Magneto diagram for your 2013 Suzuki LT-F400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-F400FL3 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-27H10

1

$886.73

In stock

2

ROTOR ASSY

32102-27H10

1

$905.42

In stock

3

1

$2.17

In stock

4

NUT,MAGNETO ROTOR

31792-11H00

1
Out of stock

5

1

$7.12

In stock

6

BOLT (5X10)

09100-05019

2
Out of stock

7

BOLT (5X10)

09100-05019

1
Out of stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

9

BOLT

01547-0630A

3

$2.48

In stock

10

KEY

08341-31059

1

$2.61

In stock
