2012 Suzuki LT-F400FL2 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2012 Suzuki LT-F400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

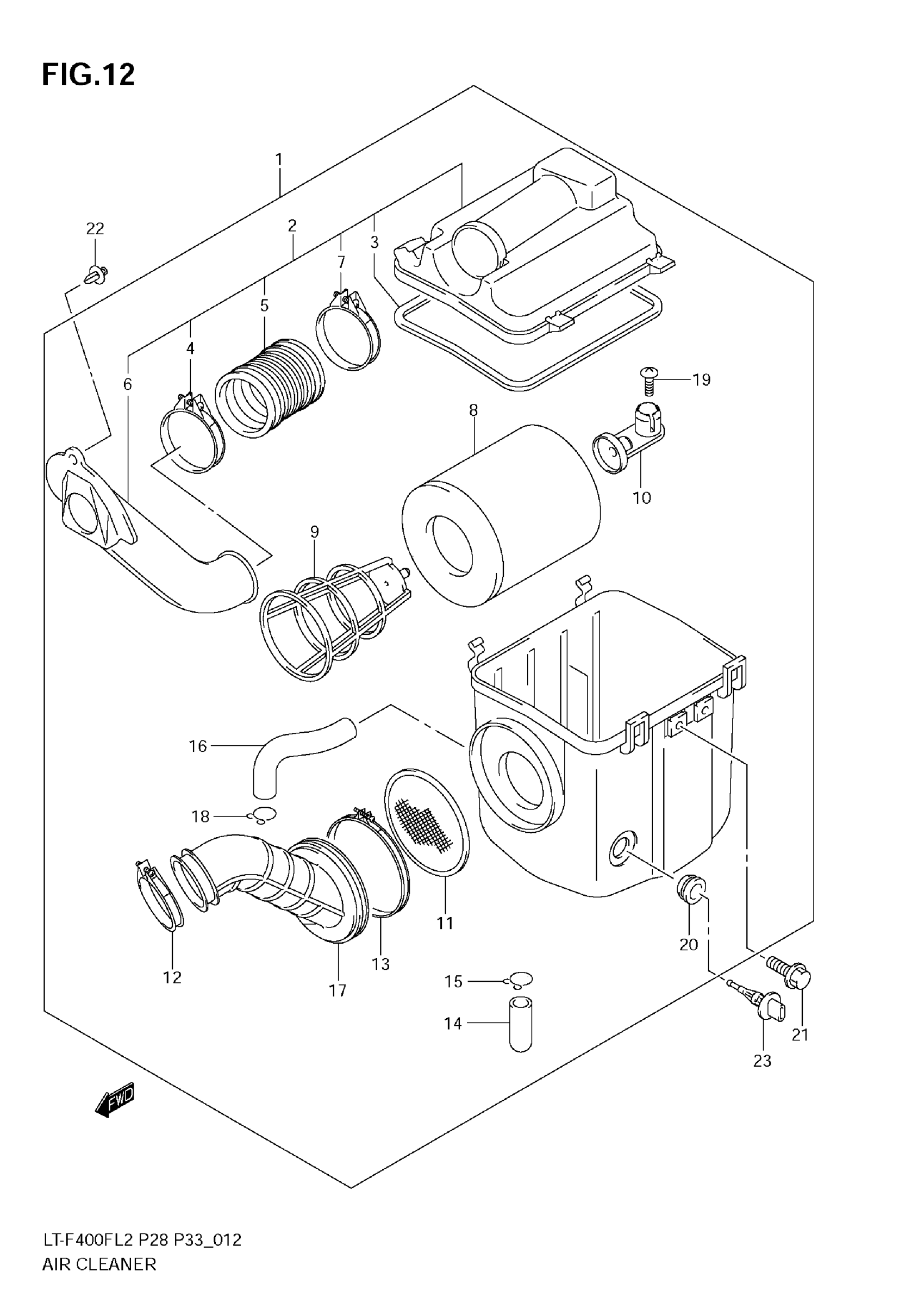

2012 Suzuki LT-F400FL2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI This part replaces 13700-27H20.

13700-27H21

1
Out of stock

2

INLET, AIR CLEANER

13890-27H00

1
Out of stock

3

GASKET

13746-03G00

1
Out of stock

4

CLAMP

13826-38F20

1
Out of stock

5

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

1
Out of stock

6

DUCT, INLET

13896-27H00

1
Out of stock

7

..CLAMP

09402-60208

1
Out of stock

8

FILTER

13780-07G00

1
Out of stock

9

HOLDER

13791-03G00

1
Out of stock

10

STOPPER, HOLDER

13792-03G00

1
Out of stock

11

.TRAP, FLAME

13810-03G00

1
Out of stock

12

CLAMP

13826-27H20

1
Out of stock

13

CLAMP, OUTLET TUBE

13826-38F10

1
Out of stock

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

1
Out of stock

15

CLIP

09401-14101

1
Out of stock

16

TUBE, BREATHER

13853-27H20

1
Out of stock

17

TUBE, OUTLET

13881-27H20

1
Out of stock

18

CLIP

09401-14101

1
Out of stock

19

SCREW

02142-0616A

1
Out of stock

21

BOLT (6X12)

09103-06285

2
Out of stock

22

CLIP

09409-07333

1
Out of stock

23

SENSOR, AIR TEMP

13650-52G00

1
Out of stock
