2011 Suzuki LT-F400FL1 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2011 Suzuki LT-F400FL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

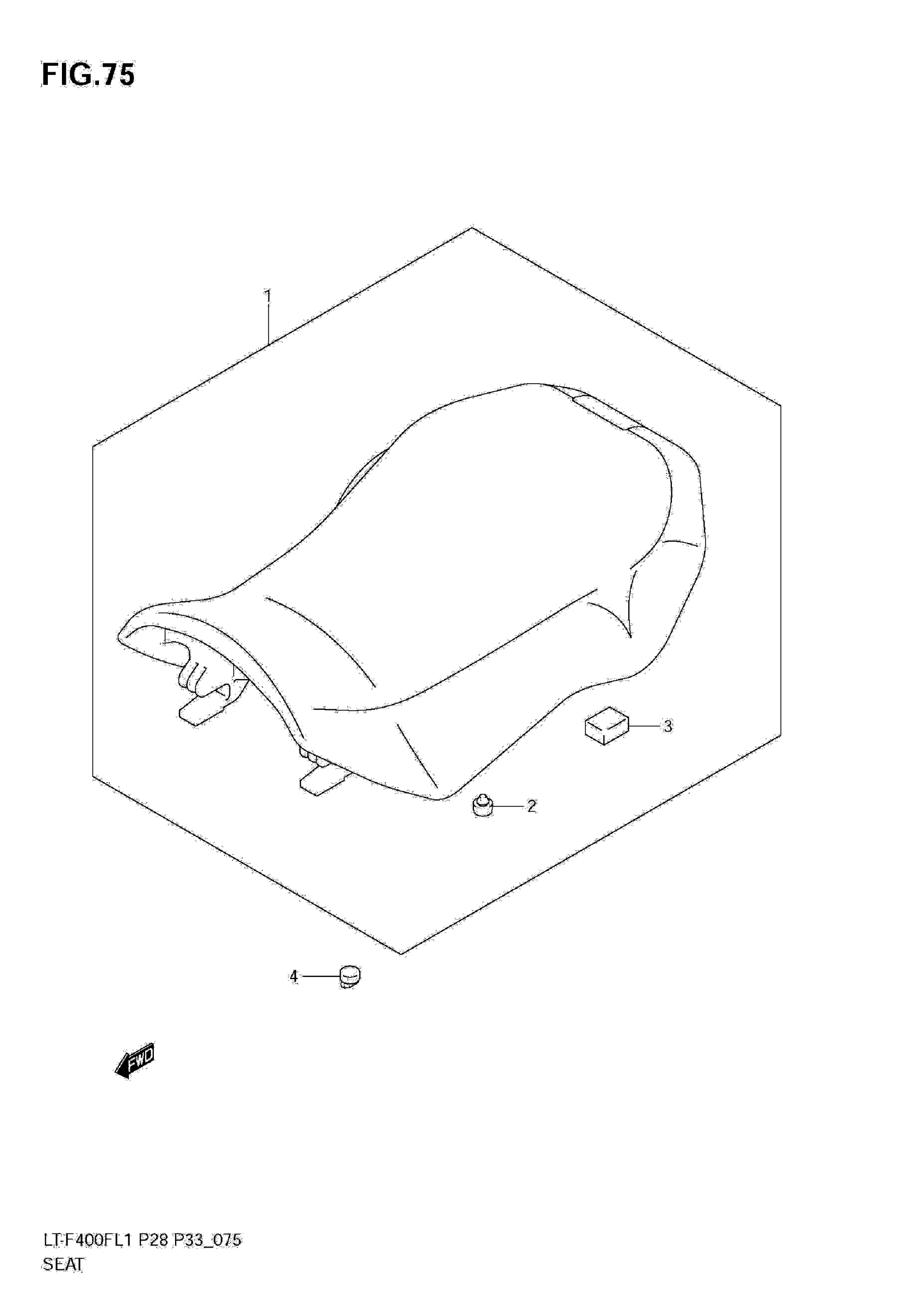

2011 Suzuki LT-F400FL1 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) This part replaces 45100-27H11-P21.

45100-27H12-P21

1
Out of stock

2

CUSHION

45146-31G10

1
Out of stock

3

CUSHION

45149-31G10

6
Out of stock

4

CUSHION,SEAT MOUNT FRONT

45141-21G00

2
Out of stock
← Rear Fender Optional →
