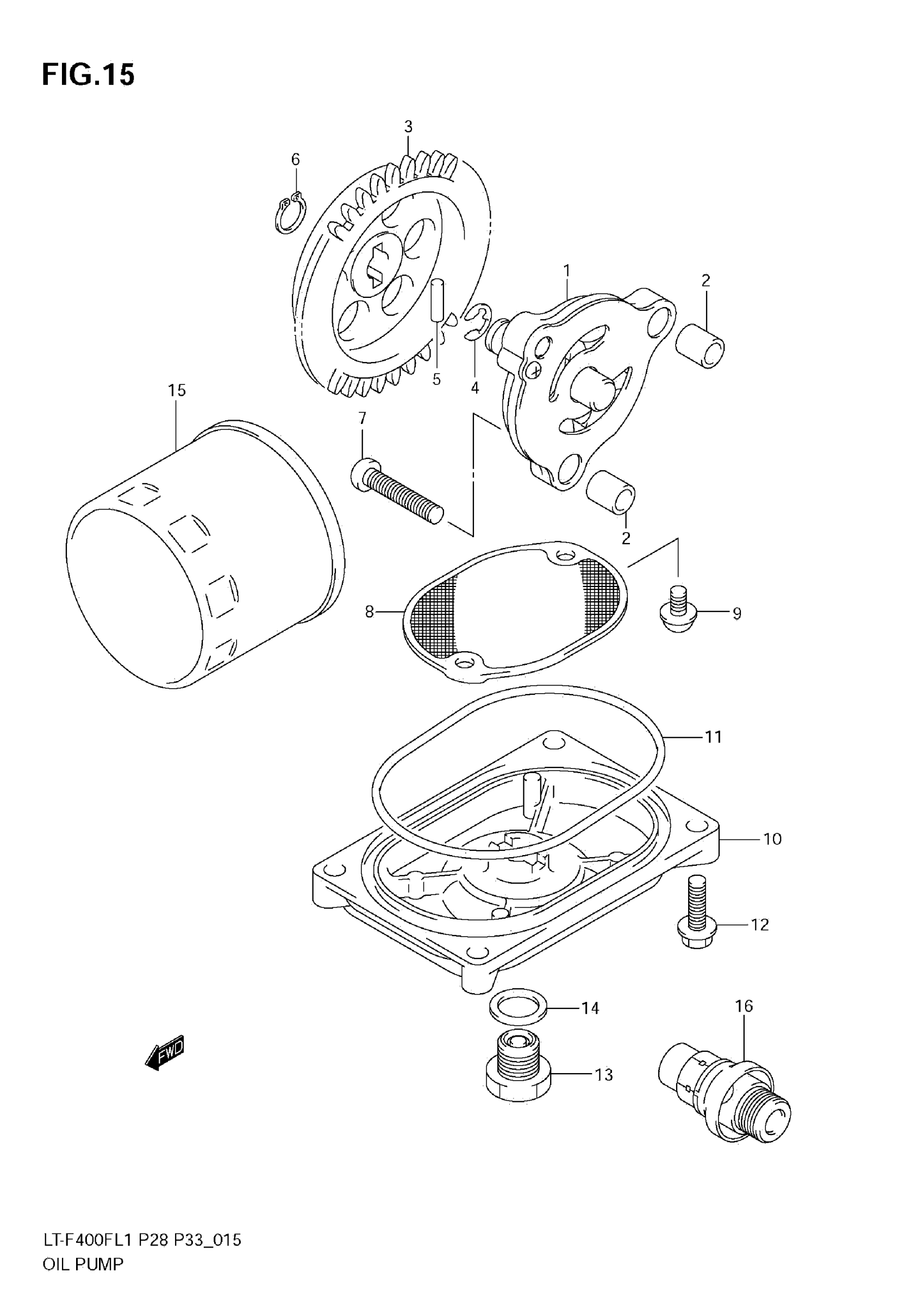

Suzuki LT-F400FL1 (2011) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENGINE OIL

16400-27H00

$185.02

2

PIN

04211-09109

$1.64

3

GEAR, DRIVEN (NT:47)

16331-14D02

$45.54

4

WASHER (10X18X0.5)

09181-10158

$1.97

5

PIN

09261-04009

$1.50

6

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.77

7

SCREW

02112-0625B

Unavailable

8

STRAINER,ENGINE OIL

16520-27H00

$8.54

9

SCREW

02112-7512A

$2.43

10

CAP, OIL STRAINER

16523-24501

$24.63

11

O RING (D:2.4,ID:82)

16528-24500

$10.01

12

BOLT

01547-0625A

$2.01

13

PLUG (MAGNETO)

09247-14002

$4.73

14

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

15

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$11.99

16

VALVE ASSY, OIL RELIEF

16440-27A01

$74.95
