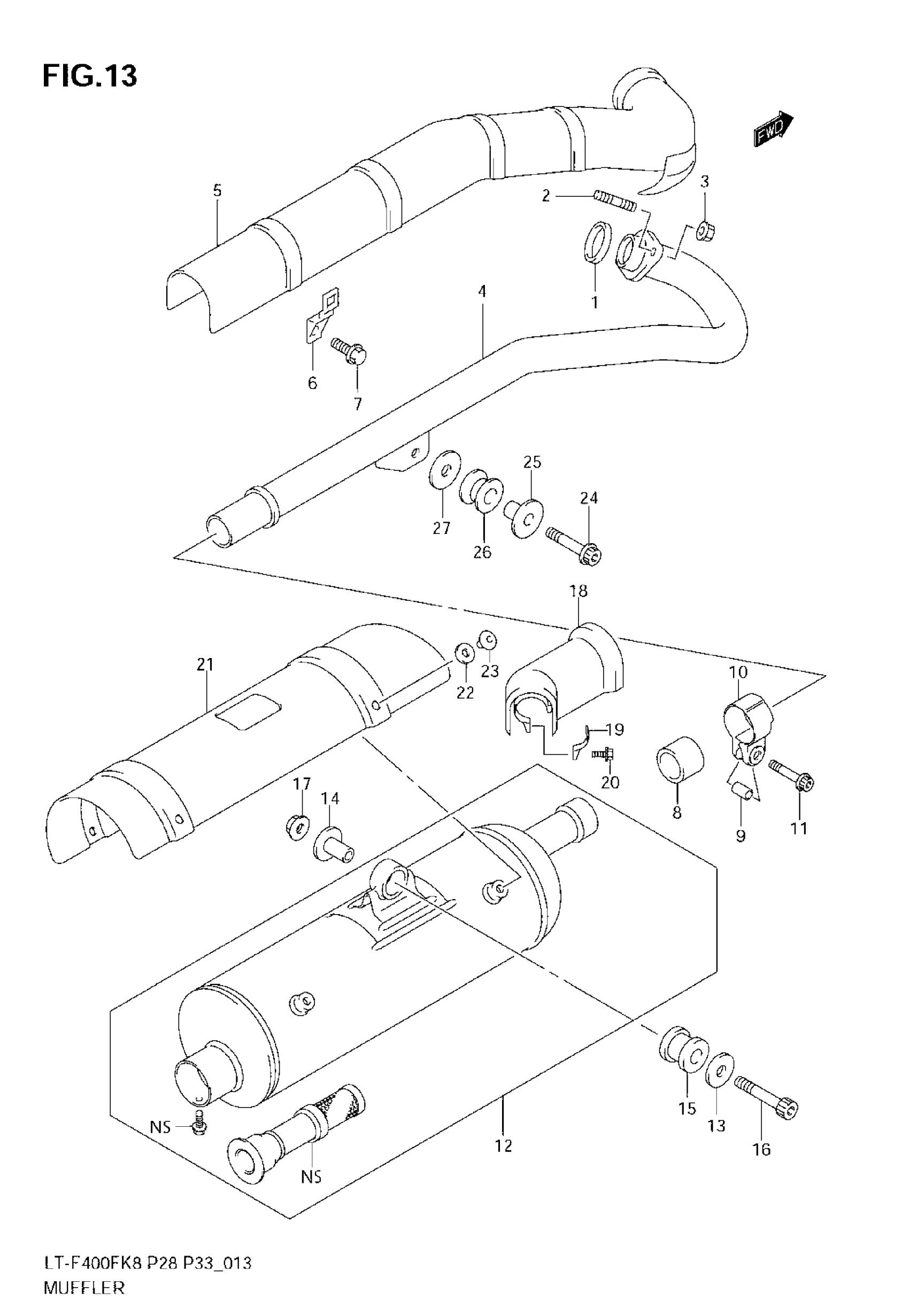

Suzuki LT-F400F (2009) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$6.61

2

STUD BOLT

01421-0825B

$2.76

3

NUT

08319-3108B

$2.75

4

PIPE, EXHAUST

14150-38F10

$200.35

5

COVER, EXHAUST PIPE, FRONT

14180-38F40

Unavailable

6

CLAMP,EXH PIPE COVER

14185-38F10

$6.63

7

BOLT

01550-0612B

$2.38

8

CONNECTOR, MUFFLER

14771-38F00

$21.77

9

SPACER

14458-45G01

$7.82

10

CLAMP, CONNECTOR

14459-38F10

$21.28

11

BOLT

07120-0840B

$3.50

12

BODY, MUFFLER This part replaces 14310-38F21.

14310-38F30

Unavailable

13

WASHER, MUFFLER SUPPORT

09160-08503

$2.53

14

SPACER, MUFFLER SUPPORT

09180-08152

$5.26

15

CUSHION, MUFFLER SUPPORT

09320-12082

$45.08

16

BOLT, MUFFLER SUPPORT

07130-0845B

$1.53

17

NUT, MUFFLER SUPPORT

08319-3108B

$2.75

18

COVER,MUF FR

14790-27H00

$50.77

19

CLAMP,EXH PIPE COVER

14185-38F10

$6.63

20

BOLT, CLAMP

01550-0612B

$2.38

21

COVER,MUF RR

14880-38F10

$66.18

22

GASKET, MUFFLER COVER

09168-06120

$2.80

23

SCREW, MUFFLER COVER

09139-06076

$2.43

24

BOLT, EXHAUST SUPPORT

09106-08133

$3.56

25

SPACER, EXHAUST SUPPORT

09180-08151

$4.73

26

CUSHION, EXHAUST SUPPORT

09320-12043

$7.20

27

WASHER, EXHAUST SUPPORT

09160-08135

$2.10
