2009 Suzuki LT-F400F Front Wheel Diagram

← All diagrams

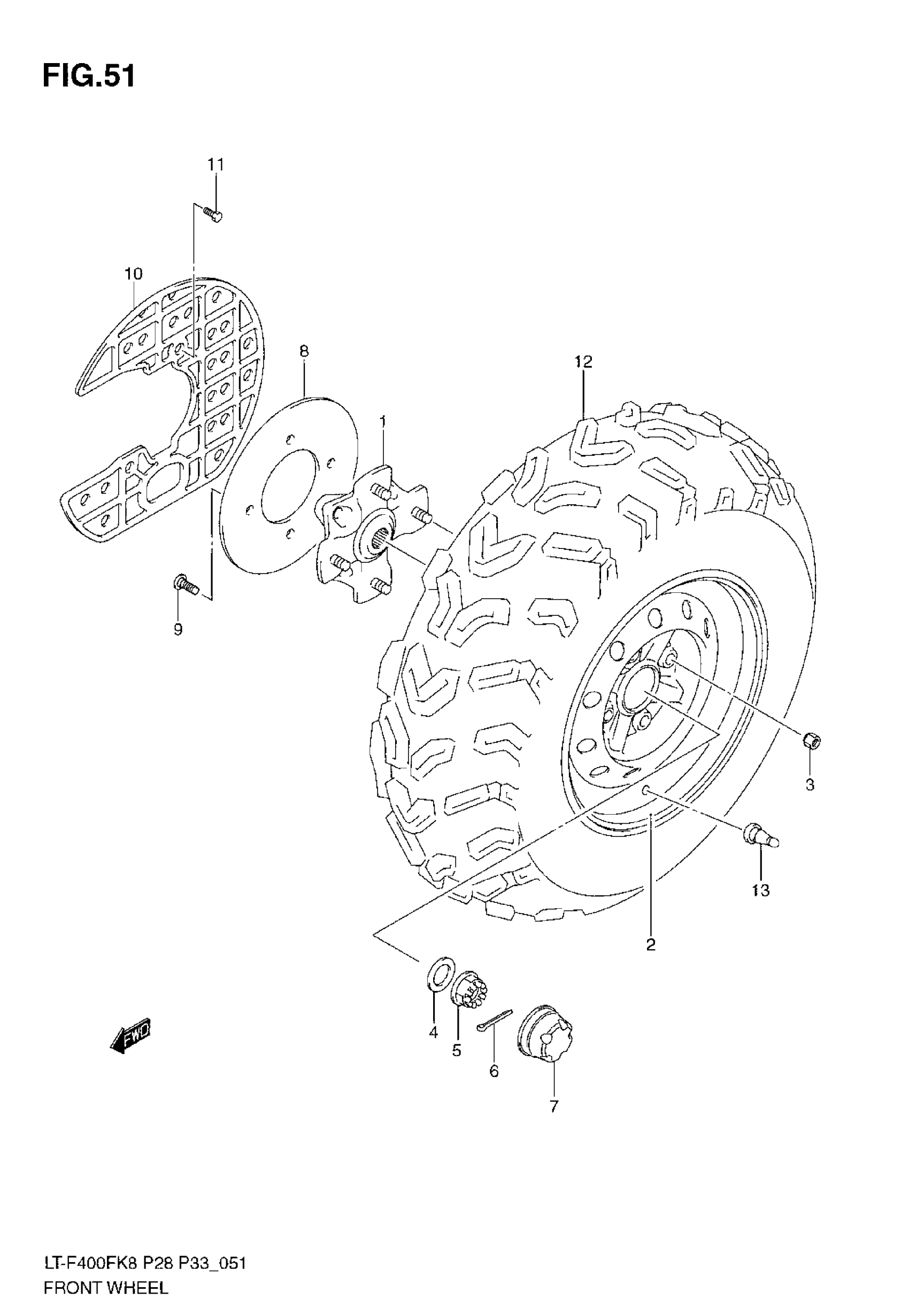

Find the part on the Front Wheel diagram for your 2009 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-F400F Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

2
Out of stock

2

RIM, FRONT WHEEL (12X6.0AT) (BLACK) This part replaces 55310-38F30-YL8.

55310-38F30-291

2
Out of stock

3

NUT

09140-10021

8
Out of stock

4

WASHER

09164-18004

2
Out of stock

5

NUT, HUB

09141-18010

2
Out of stock

6

PIN, COTTER

04111-4035A

2
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

2
Out of stock

8

DISC,FRONT BRAKE

59211-38F20

2
Out of stock

9

BOLT, BRAKE DISC

09106-08160

8
Out of stock

10

COVER,FRONT DISC

59231-27H00

2
Out of stock

11

BOLT

09139-06158

4
Out of stock

12

TIRE,FRONT (AT25X8-12) This part replaces 55110-38FC0.

55110-31G30

2
Out of stock

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

2
Out of stock
