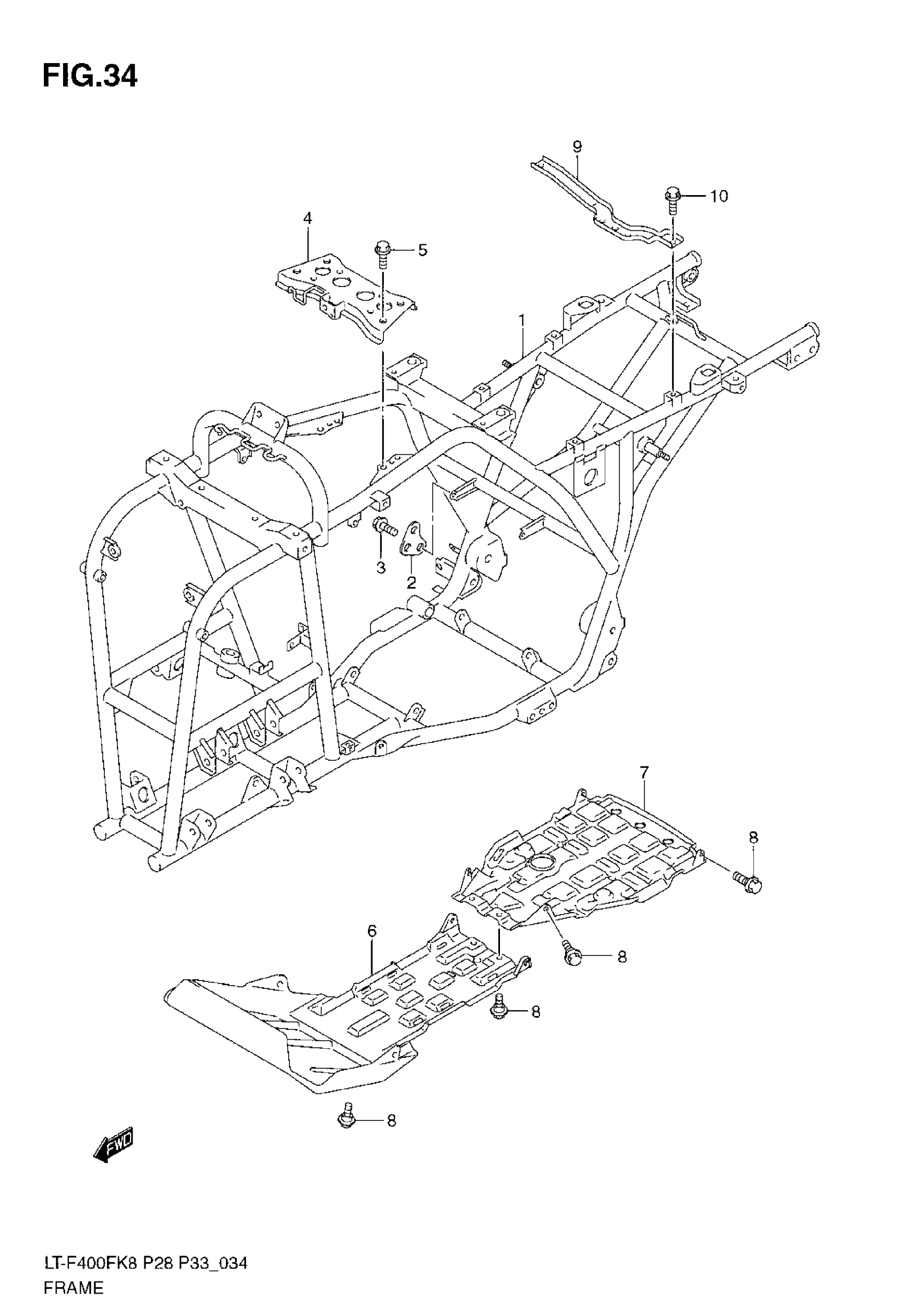

Suzuki LT-F400F (2009) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-27H00-019

Unavailable

2

PLATE, MOUNT REAR RH

41981-38FA0

$4.43

3

BOLT

09103-08441

$1.77

4

PLATE, MOUNT UPPER

41990-27H00

Unavailable

5

BOLT

09103-08441

$1.77

6

PROTECTOR,FRONT This part replaces 42521-27H00.

42521-27H00-291

$110.63

7

PROTECTOR,ENGINE This part replaces 42511-38F02.

42511-38F04

$26.67

8

BOLT

09111-06085

$4.16

9

PLATE,BATTERY

41561-27H00

$22.58

10

BOLT

01550-0616A

$1.97
