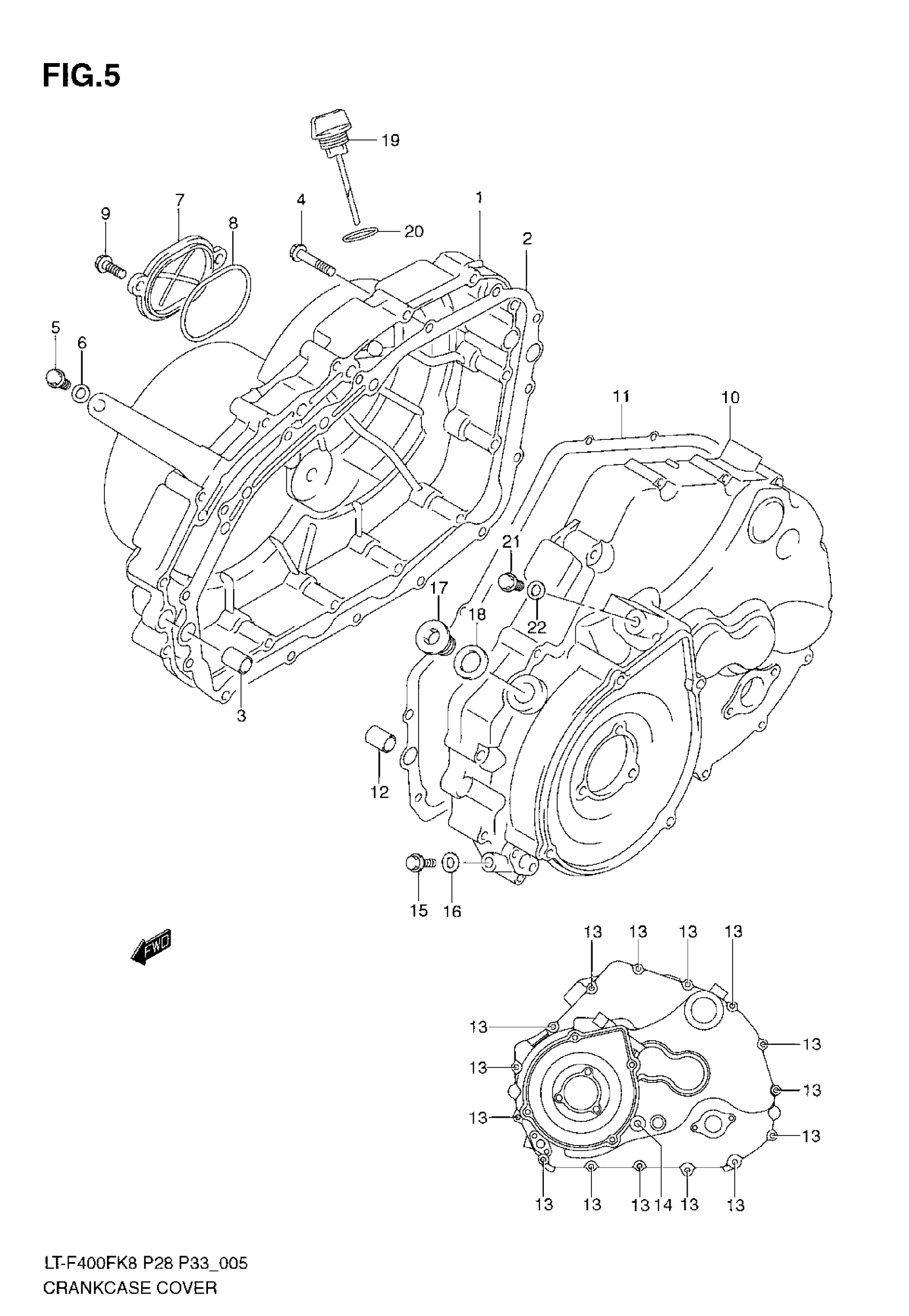

Suzuki LT-F400F (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-27H10

$337.03

2

GASKET

11482-38F10

$21.60

3

PIN

04211-13189

$2.25

4

BOLT

01547-0640B

$2.80

5

PLUG, OIL GALLERY

01550-0612B

$2.44

6

GASKET, OIL GALLERY PLUG

09168-06023

$2.09

7

CAP, INSPECTION

11175-09F00

Unavailable

8

.O RING,INSPECTION CAP

11177-14D01

$4.40

9

BOLT, INSPECTION CAP

01550-0620B

$2.44

10

COVER, MAGNETO

11351-27H10

Unavailable

11

GASKET

11483-38F10

$22.79

12

PIN

04211-13189

$2.25

13

BOLT

01547-0640B

$2.80

14

BOLT, (8X140)

09103-08040

$5.98

15

PLUG, OIL GALLERY

01550-0812B

$2.80

16

GASKET

09168-08029

$2.39

17

PLUG, T.D.C CHECK

09248-16012

$4.32

18

GASKET, T.D.C CHECK

09168-16002

$1.97

19

GAUGE,OIL LEVEL

11971-38F00

$9.36

20

O RING, OIL LEVEL GAUGE

09280-17003

$1.70

21

PLUG, OIL GALLERY

01550-0612B

$2.44

22

GASKET, OIL GALLEY PLUG

09168-06023

$2.09
