Partiron

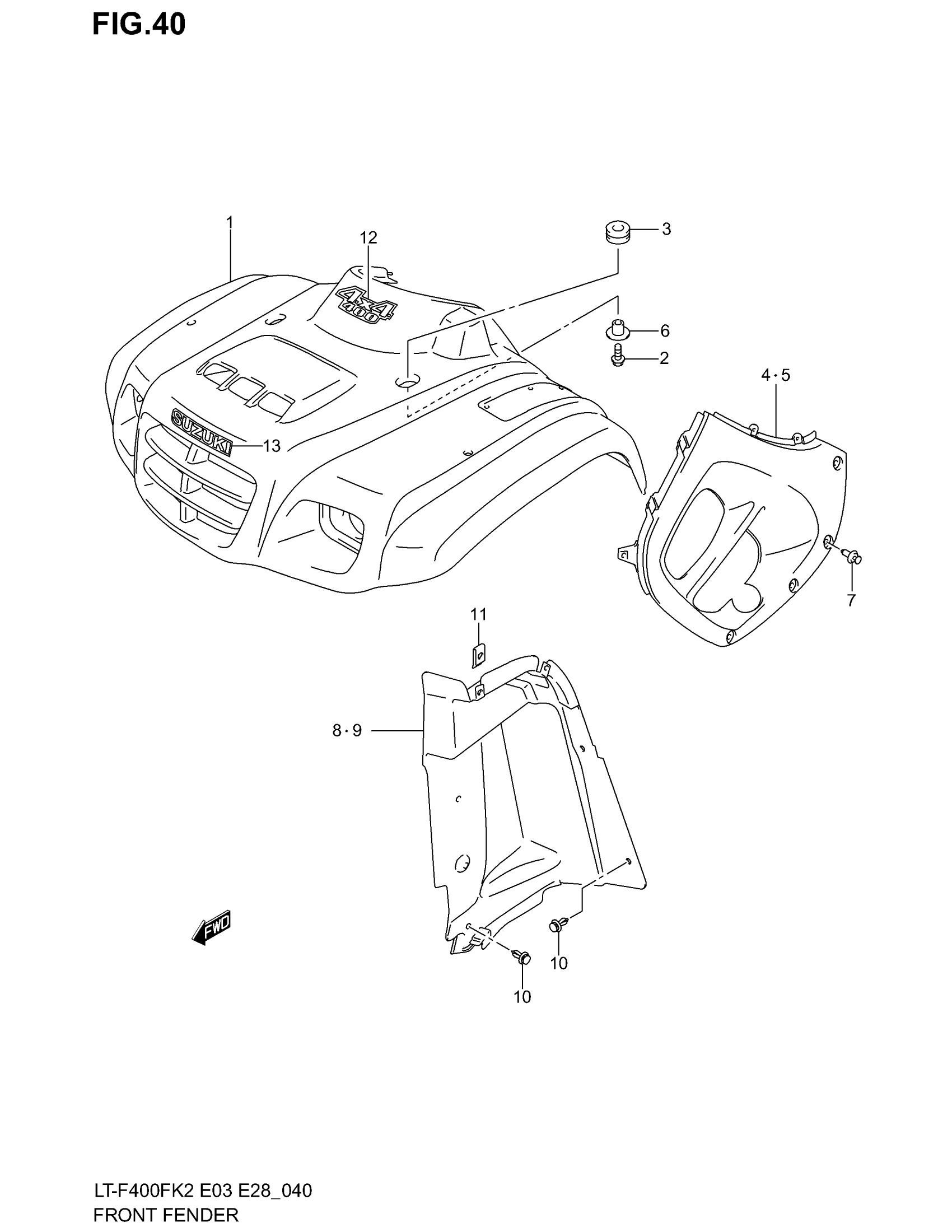

Suzuki LT-F400F (2002) FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT This part replaces 53111-38F00-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT This part replaces 53111-38F00-YT9.

53111-38F32-YT9

Unavailable

2

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

3

CUSHION

09320-11008

$2.66

4

COVER, SIDE RH (BLACK)

53112-38F10-291

$60.52

5

COVER, SIDE LH (BLACK)

53122-38F10-291

$31.83

6

WASHER

09169-06074

$7.70

7

CLIP, INNER

09409-07333

$2.37

8

MUD FLAP,FENDER This part replaces 53411-38F00.

53411-38F02

$51.30

9

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

Unavailable

10

CLIP

09409-08335

$2.44

11

NUT, INNER

09148-05038

$2.01

12

EMBLEM, FRONT

68151-38F10-DJ8

Unavailable

13

EMBLEM, FRONT LOWER | FOR YT8

68171-44B00-HV6

Unavailable

13

EMBLEM, FRONT LOWER | FOR YT9

68171-44B00-HV5

Unavailable
