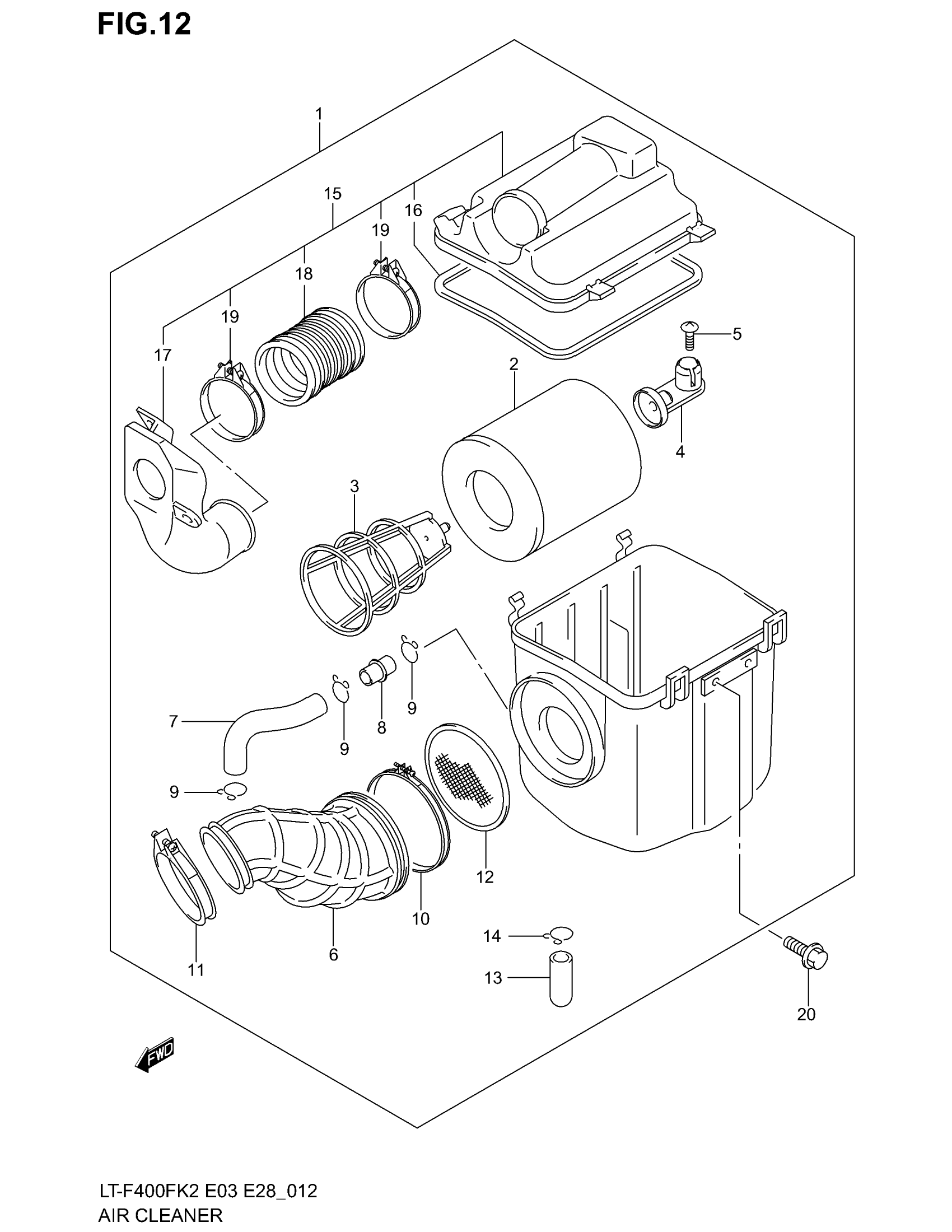

Find the part on the AIR Cleaner diagram for your 2002 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F400F AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19 This part replaces 13700-38F00.

13700-38F10

1
Out of stock

2

FILTER

13780-03G00

1
Out of stock

3

HOLDER

13791-03G00

1
Out of stock

4

STOPPER, HOLDER

13792-03G00

1
Out of stock

5

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

6

TUBE,OUTLET This part replaces 13881-38F00.

13881-38F01

1
Out of stock

7

TUBE,BREATHER This part replaces 13853-38F00.

13853-38F01

1
Out of stock

8

JOINT 2ND AIR CLEANER HOSE

13888-19B00

1
Out of stock

9

CLIP

09401-14301

3
Out of stock

10

.CLAMP, OUTLET TUBE

13826-14D01

1
Out of stock

11

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

12

.TRAP, FLAME

13810-03G00

1
Out of stock

13

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

1
Out of stock

14

CLIP

09401-14301

1
Out of stock

15

INLET,AIR CLEAN This part replaces 13890-38F00.

13890-38F02

1
Out of stock

16

GASKET

13746-03G00

1
Out of stock

17

DUCT, INLET

13896-38F00

1
Out of stock

18

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

1
Out of stock

19

..CLAMP

09402-60208

2
Out of stock

20

BOLT (6X12) This part replaces 09103-06083.

09103-06285

2
Out of stock
