2008 Suzuki LT-F400 Wiring Harness Diagram

← All diagrams

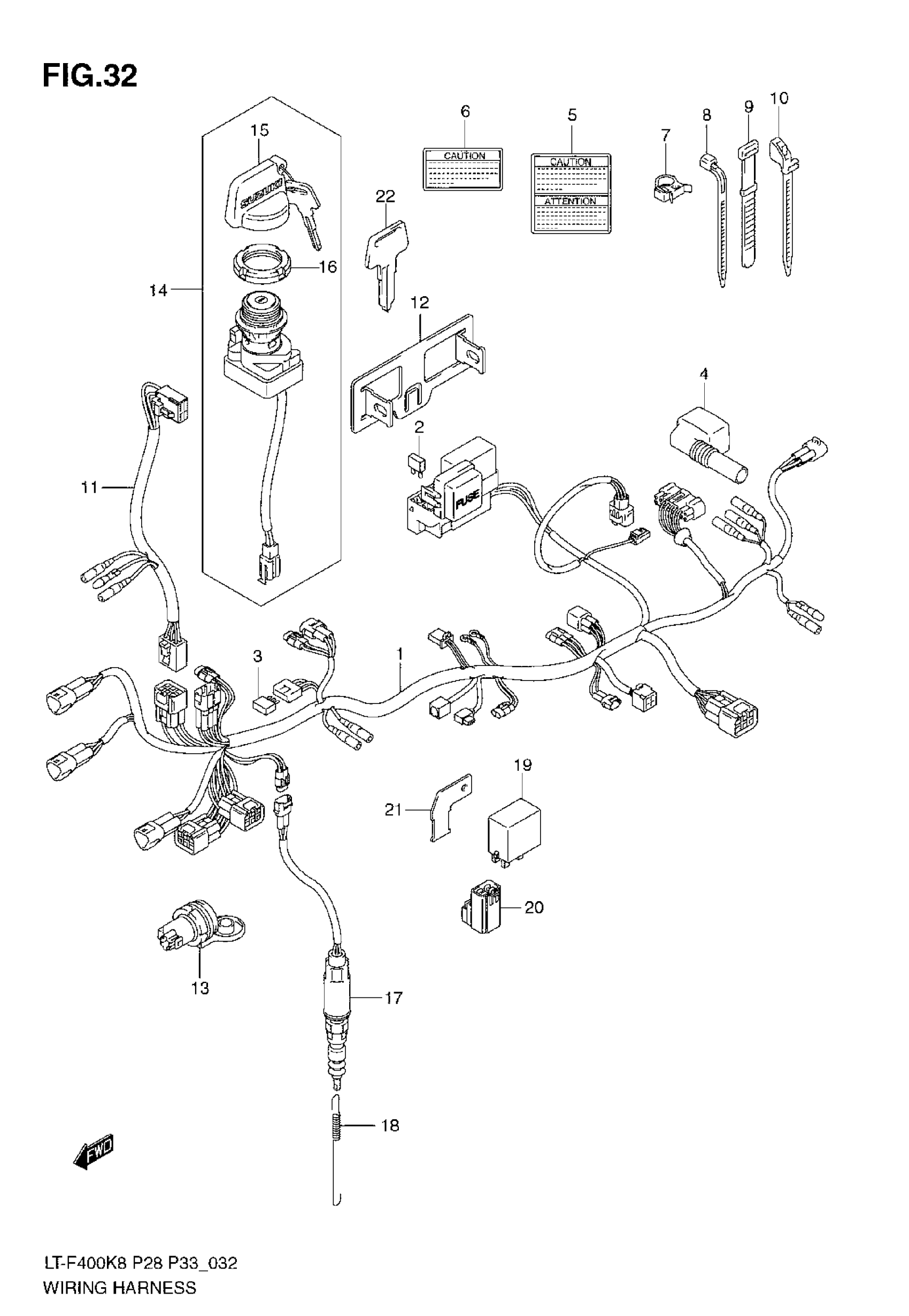

Find the part on the Wiring Harness diagram for your 2008 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-F400 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

FUSE (10A)

09481-10501

6
Out of stock

3

1

$13.49

In stock

4

BOOT, ECU COUPLER

36618-35F00

1

$11.37

In stock

5

LABEL, CAUTION MAX AMP | E28

38852-03G10

1
Out of stock

6

LABEL, CAUTION MAX AMP | E33

38852-09F30

1
Out of stock

7

CLAMP (D:20)

09403-20403

1
Out of stock

7

CLAMP (D:25)

09403-25401

1
Out of stock

8

CLAMP (L:125)

09407-14403

6
Out of stock

8

CLAMP (L:190)

09407-19401

4
Out of stock

9

CLAMP

09407-12402

2
Out of stock

10

CLAMP

09407-12407

—
Out of stock

11

1

$9.70

In stock

12

BRACKET,FUSE BOX

36744-38F00

1
Out of stock

13

TERMINAL,POWER SOURCE (12V,12

38850-03G10

1
Out of stock

15

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

16

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

17

SWITCH ASSY,STOP LAMP

37740-38F01

1
Out of stock

18

SPRING, STOP LAMP

09443-06016

1
Out of stock

19

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

20

1

$39.56

In stock

21

BRACKET, GEAR IN START

38741-09F00

1
Out of stock

22

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

22

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

22

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

22

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock
