2008 Suzuki LT-F400 Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2008 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

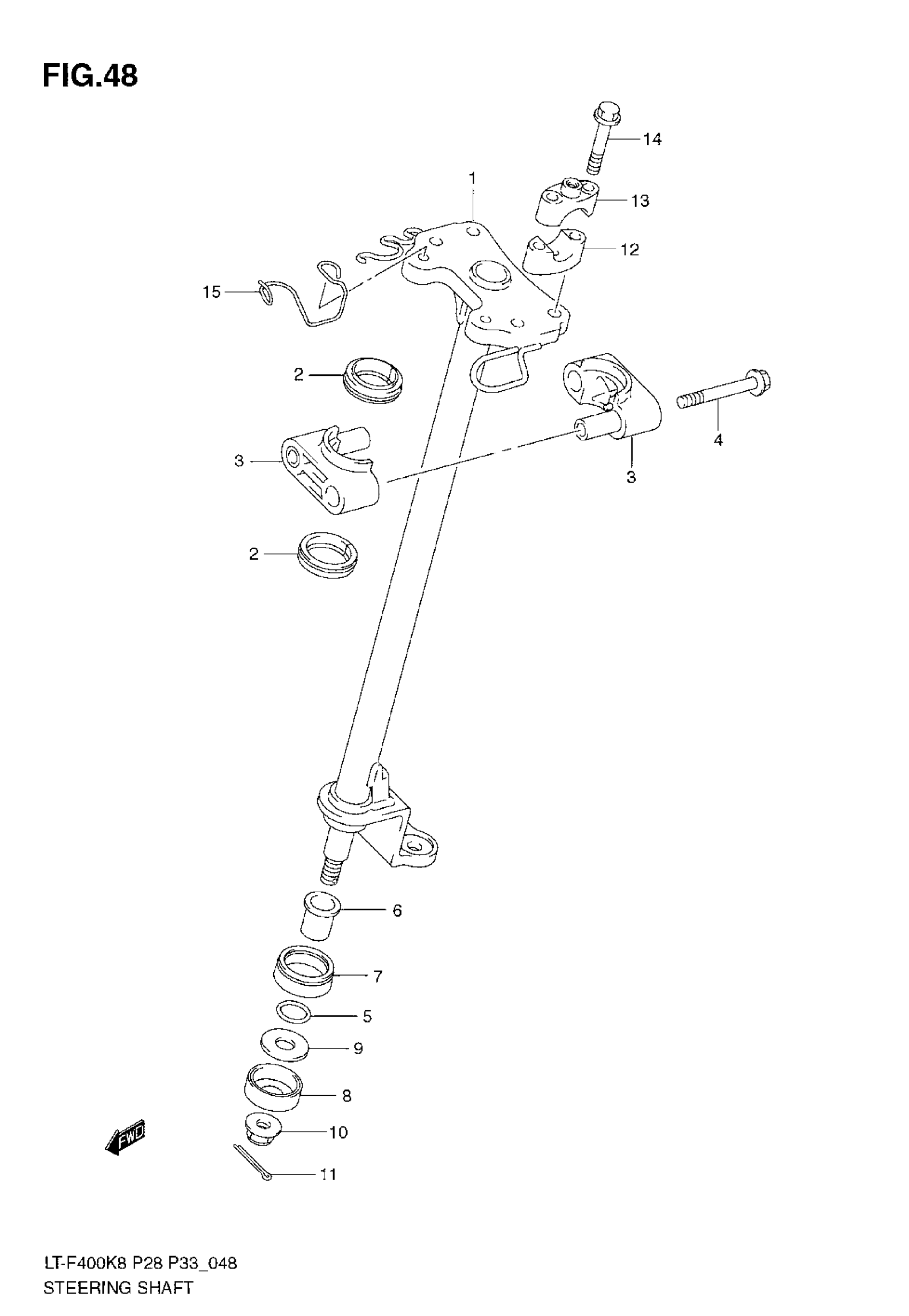

2008 Suzuki LT-F400 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$406.83

In stock

2

2

$6.81

In stock

3

HOLDER,STEERING SHAFT

51670-24500

2

$23.65

In stock

4

BOLT

01550-0875A

2
Out of stock

5

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

6

1

$29.96

In stock

7

1

$6.40

In stock

8

1

$7.11

In stock

9

WASHER (12.5X30X3)

09160-12103

1

$3.11

In stock

10

NUT

08319-3112B

1

$5.35

In stock

11

COTTER PIN

04111-2020A

1
Out of stock

12

2

$34.38

In stock

14

BOLT

01550-0850A

4

$3.98

In stock

15

GUIDE, FRONT BRAKE HOSE NO.1

59243-38F00

1
Out of stock
