2008 Suzuki LT-F400 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2008 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

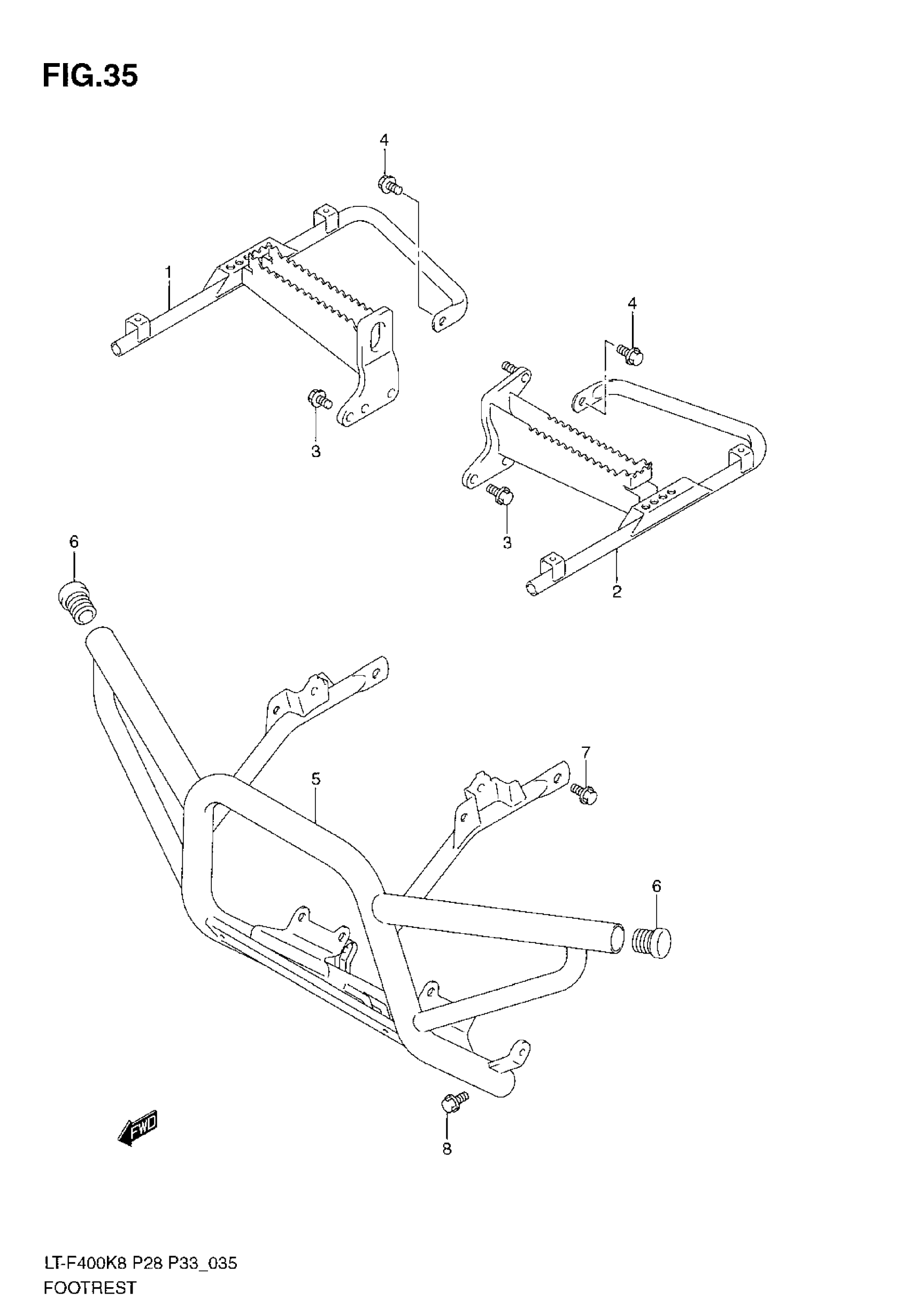

2008 Suzuki LT-F400 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST RH This part replaces 43510-27H00.

43510-27HA0

1
Out of stock

2

FOOTREST LH This part replaces 43520-27H00.

43520-27HA0

1
Out of stock

3

BOLT, FRONT

09103-10275

4
Out of stock

4

BOLT (8X16)

01550-0816A

2
Out of stock

5

GRIP, FRONT (BLACK)

46710-27H00-019

1
Out of stock

6

CAP

43978-38F00

2
Out of stock

7

BOLT (8X16)

01550-0816A

2
Out of stock

8

BOLT, LOWER

09103-08441

2
Out of stock
