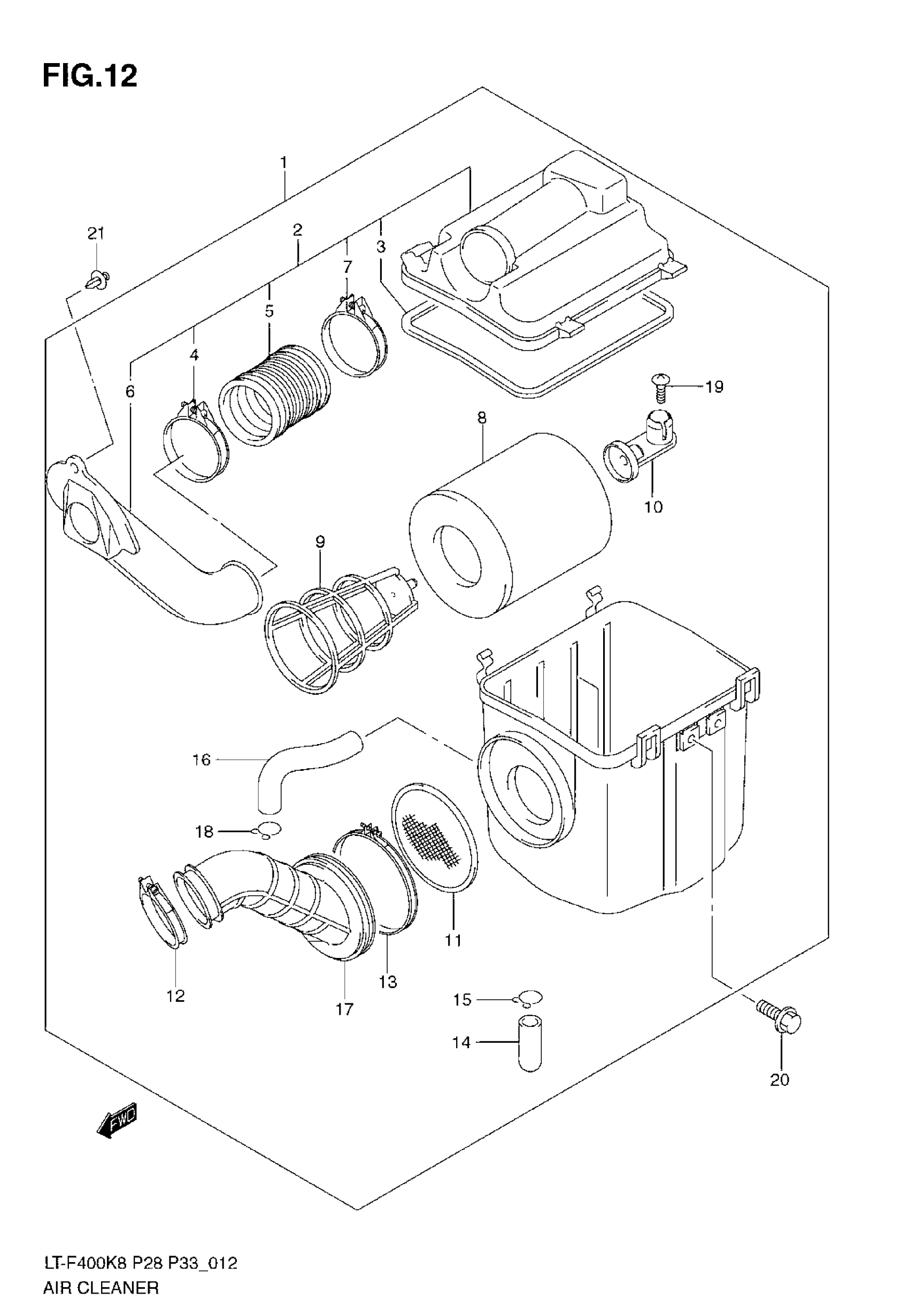

Suzuki LT-F400 (2008) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19

13700-27H00

$179.32

2

INLET, AIR CLEANER

13890-27H00

$84.45

3

GASKET

13746-03G00

$4.64

4

CLAMP

13826-38F20

$9.31

5

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

$12.85

6

DUCT, INLET

13896-27H00

$36.07

7

..CLAMP

09402-60208

$4.75

8

FILTER

13780-07G00

$29.36

9

HOLDER

13791-03G00

$8.35

10

STOPPER, HOLDER

13792-03G00

$6.89

11

.TRAP, FLAME

13810-03G00

$13.40

12

CLAMP

13826-38F00

$10.76

13

CLAMP, OUTLET TUBE

13826-38F10

$15.98

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.41

15

CLIP

09401-14301

$2.17

16

TUBE, BREATHER

13853-38F10

$12.85

17

TUBE,OUTLET This part replaces 13881-38F00.

13881-38F01

$57.00

18

CLIP

09401-14301

$2.17

19

SCREW

02142-0616A

$1.41

20

BOLT (6X12)

09103-06285

$2.02

21

CLIP

09409-07333

$2.37
