2007 Suzuki LT-F400 Carburetor Diagram

← All diagrams

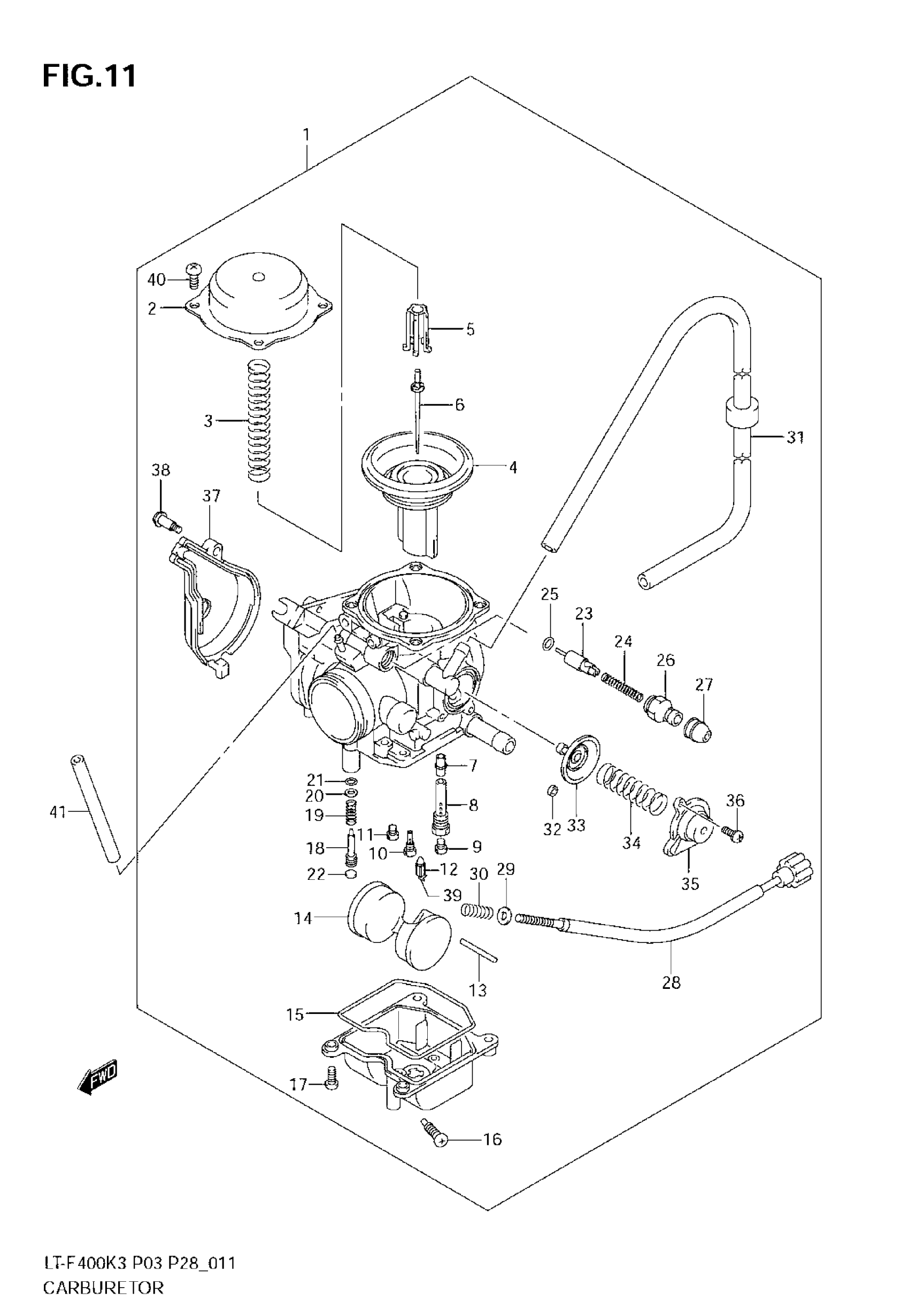

Find the part on the Carburetor diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F400 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | MODEL K5/K6/K7 E28 This part replaces 13200-38FD0.

13200-38FD1

1
Out of stock

2

DIAPHRAGM COVER

13502-38F00

1
Out of stock

3

SPRING

13503-38F00

1
Out of stock

4

DIAPHRAGM

13501-38F00

1
Out of stock

5

SEAT, SPRING

13382-26E00

1
Out of stock

6

NEEDLE, JET (N425-BZA00)

13383-38F00

1
Out of stock

7

JET, NEEDLE

09494-00869

1
Out of stock

8

HOLDER, NEEDLE JET

13342-38F00

1
Out of stock

9

JET, MAIN (#122)

09491-24032

1
Out of stock

10

JET, PILOT (#38)

09492-38005

1
Out of stock

11

JET, MAIN (#55)

09491-55009

1
Out of stock

12

VALVE ASSY, NEEDLE

13370-38F00

1
Out of stock

13

FLOAT PIN

13254-26E00

1
Out of stock

14

FLOAT ASSY

13250-26E00

1
Out of stock

15

O RING

13258-26E00

1
Out of stock

16

DRAIN SCREW

13247-43E00

1
Out of stock

17

SCREW

13602-26E10

4
Out of stock

18

SCREW, ADJUST

13279-03FA0

1
Out of stock

19

SPRING

13268-26E00

1
Out of stock

20

WASHER

13291-26E00

1
Out of stock

21

O RING

13295-26E00

1
Out of stock

22

CAP | E33

13281-26E00

1
Out of stock

23

VALVE ASSY, STARTER

13410-38F00

1
Out of stock

24

SPRING

13417-03G00

1
Out of stock

25

O RING

13686-03G00

1
Out of stock

26

HOLDER

13418-03G00

1
Out of stock

27

CAP

13681-28E00

1
Out of stock

28

SCREW, STOP

13270-38FA0

1
Out of stock

29

WASHER

13273-03G00

1
Out of stock

30

SPRING

13268-35F00

1
Out of stock

31

HOSE

13683-38F00

1
Out of stock

32

U RING This part replaces 13486-15F00.

13486-15F01

1
Out of stock

33

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

1
Out of stock

34

SPRING

13481-15F00

1
Out of stock

35

COVER

13484-15F00

1
Out of stock

36

SCREW

13601-15F10

2
Out of stock

37

COVER

13578-03G00

1
Out of stock

38

SCREW

13601-11F00

1
Out of stock

39

CLIP

13375-26E00

1
Out of stock

40

SCREW

13602-43E00

1
Out of stock

41

HOSE,5X10X600 | L:600!140 This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock
