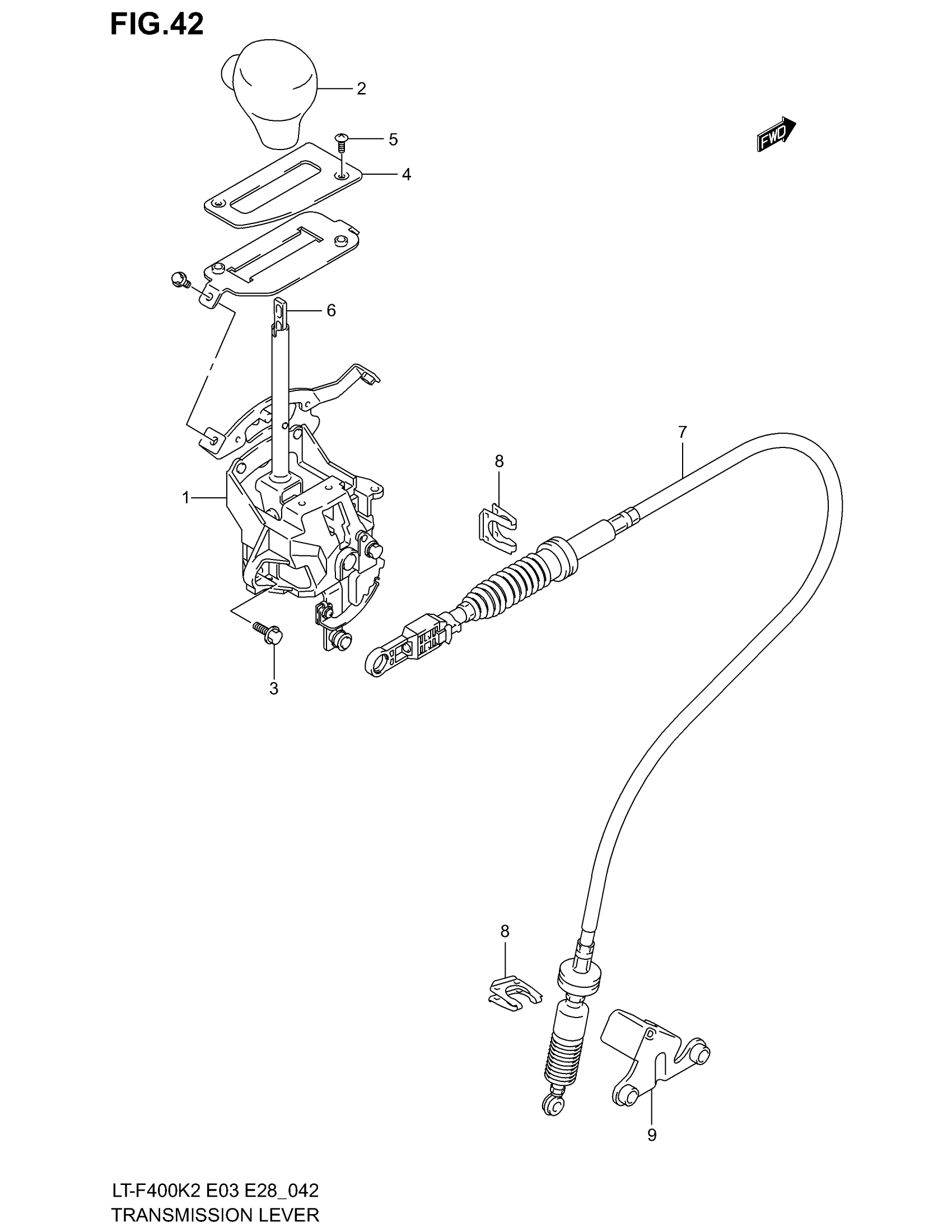

Suzuki LT-F400 (2002) SHIFT LEVER Diagram

#

Description

Price

1

LEVER ASSY, TRANSMISSION

57800-38F10

Unavailable

2

KNOB, T/M LEVER This part replaces 57830-38F10.

57830-38F11

$45.14

3

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

4

PLATE, T/M INDICATOR

57961-38F10

Unavailable

5

SCREW

09139-05032

$2.06

6

ROD, DETENT

57863-38F00

$8.50

7

CABLE,T/M GEAR This part replaces 58680-38F10.

58680-38F11

$98.63

8

CLIP

28375-78A00

$5.09

9

PLATE,T/M CABLE This part replaces 58620-38F10.

58620-38F1V

Unavailable
