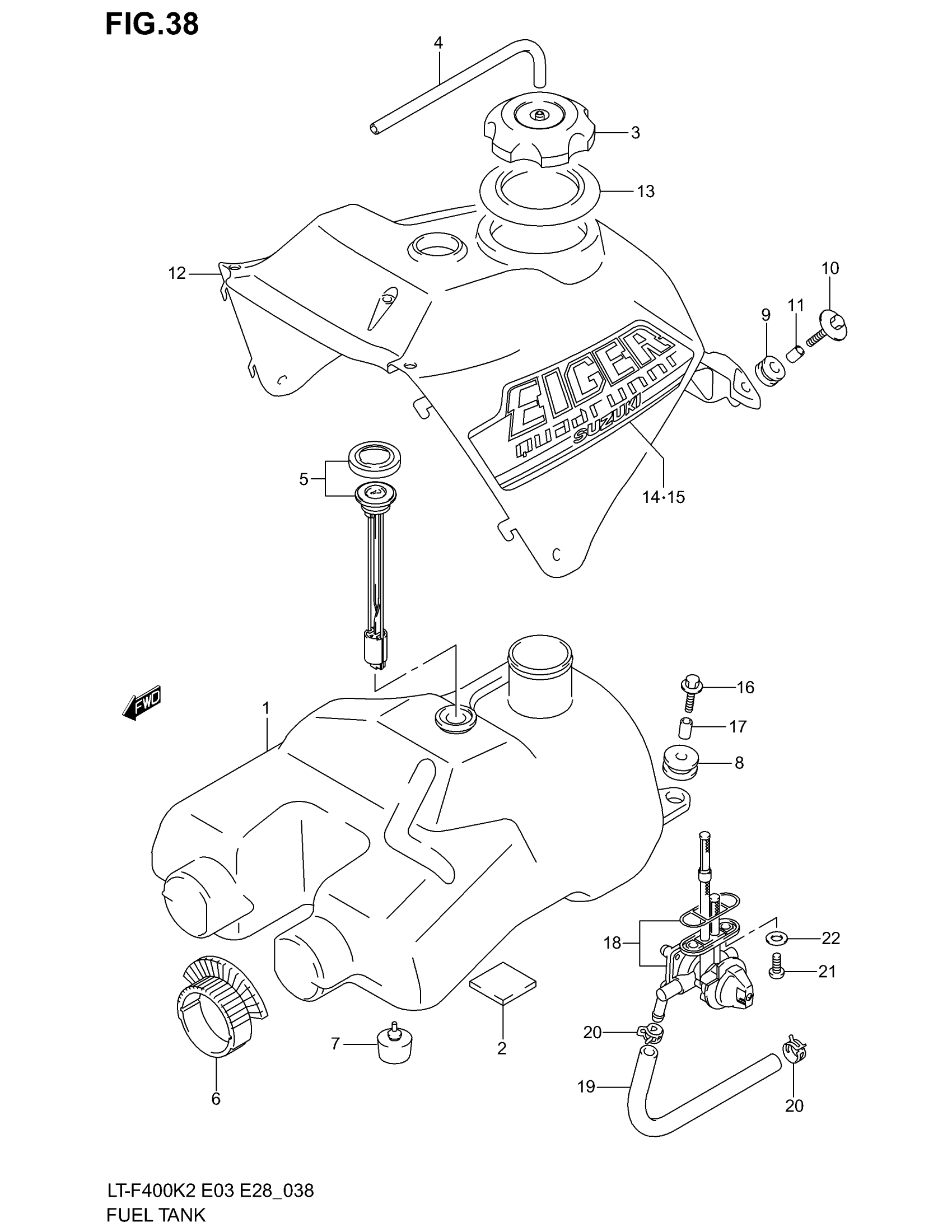

Find the part on the Fuel Tank diagram for your 2002 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F400 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-38F00

1
Out of stock

2

CUSHION This part replaces 44281-29C00.

63191-25C00

1
Out of stock

3

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

1
Out of stock

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

5

GAS GAUGE, FUEL This part replaces 44580-38F00.

44580-38F02

1
Out of stock

6

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

2
Out of stock

7

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

2
Out of stock

8

CUSHION, SEAT MOUNT

45141-09F00

1
Out of stock

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

2
Out of stock

10

BOLT

09116-06050

2
Out of stock

11

SPACER

09180-06293

2
Out of stock

12

COVER, TANK (GREEN) This part replaces 44271-38F00-YT8.

44271-38F10-YT8

1
Out of stock

12

COVER, TANK (RED) This part replaces 44271-38F00-YT9.

44271-38F10-YT9

1
Out of stock

13

RUBER, INLET

44261-38F00

1
Out of stock

14

EMBLEM, COVER RH | FOR YT8

68111-38F00-Y4J

1
Out of stock

14

EMBLEM, COVER RH | FOR YT9

68111-38F00-Y4K

1
Out of stock

15

EMBLEM, COVER LH | FOR YT8

68121-38F00-Y4J

1
Out of stock

15

EMBLEM, COVER LH | FOR YT9

68121-38F00-Y4K

1
Out of stock

16

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

17

SPACER

09180-06267

1
Out of stock

18

COCK ASSY,FUEL This part replaces 44300-38F00.

44300-38F03

1
Out of stock

19

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

1
Out of stock

20

CLIP This part replaces 09401-11407.

09401-11415

2
Out of stock

21

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

22

GASKET

09168-06026

2
Out of stock
