2002 Suzuki LT-F400 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2002 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

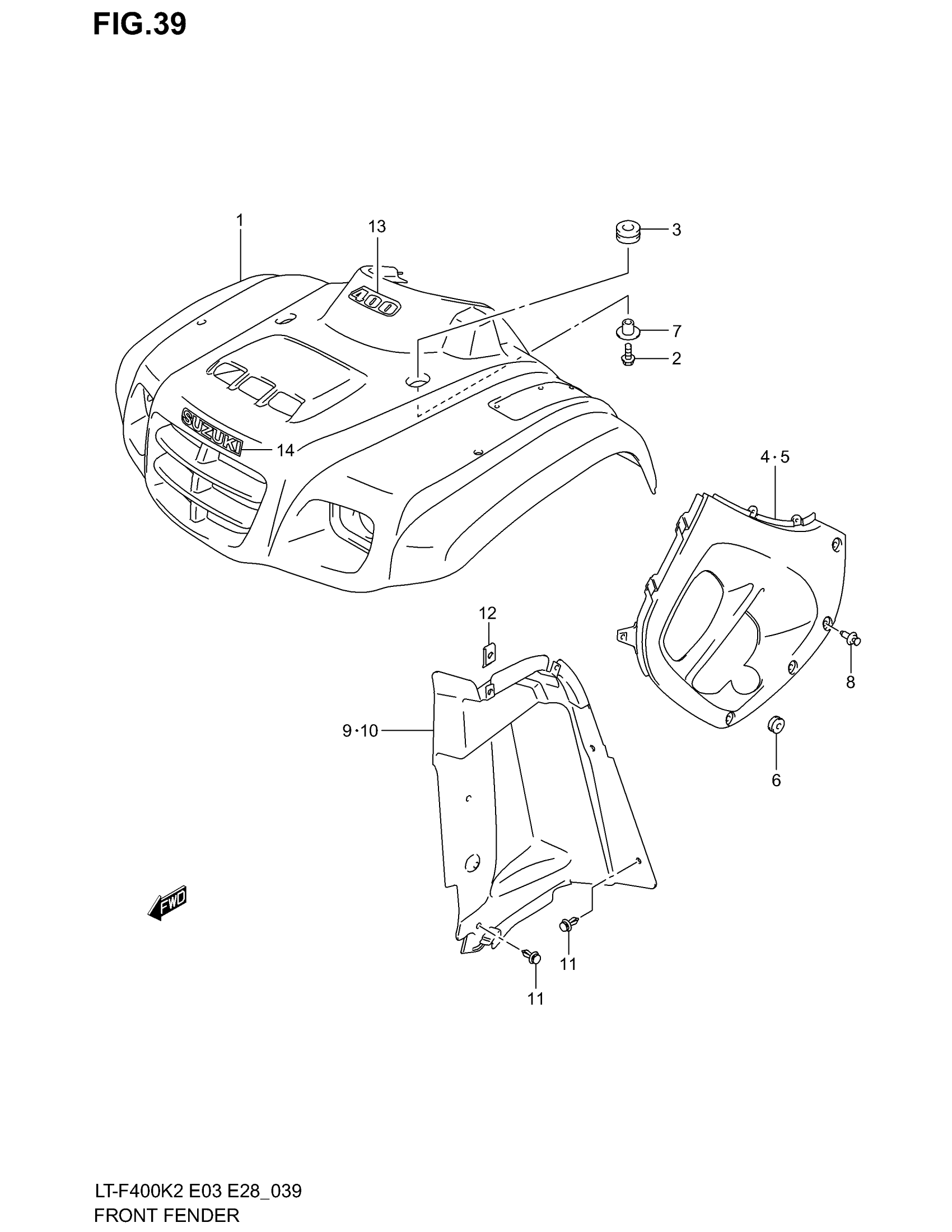

2002 Suzuki LT-F400 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER,FRONT This part replaces 53111-38F00-YT8.

53111-38F32-YT8

1
Out of stock

1

FENDER,FRONT This part replaces 53111-38F00-YT9.

53111-38F32-YT9

1
Out of stock

2

BOLT This part replaces 01550-06253.

01550-0625A

2
Out of stock

3

CUSHION

09320-11008

2
Out of stock

4

COVER, SIDE RH (BLACK)

53112-38F10-291

1
Out of stock

5

COVER, SIDE LH (BLACK)

53122-38F10-291

1
Out of stock

6

CUSHION, LH

09320-08018

1
Out of stock

7

WASHER

09169-06074

2
Out of stock

8

CLIP, INNER

09409-07333

8
Out of stock

9

MUD FLAP,FENDER This part replaces 53411-38F00.

53411-38F02

1
Out of stock

10

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

1
Out of stock

11

CLIP

09409-08335

11
Out of stock

12

NUT, INNER

09148-05038

2
Out of stock

13

EMBLEM, FRONT

68151-38F40-3SP

1
Out of stock

14

EMBLEM, FRONT LOWER | FOR YT8

68171-44B00-HV6

1
Out of stock

14

EMBLEM, FRONT LOWER | FOR YT9

68171-44B00-HV5

1
Out of stock
