2002 Suzuki LT-F300F Fuel Tank Diagram

← All diagrams

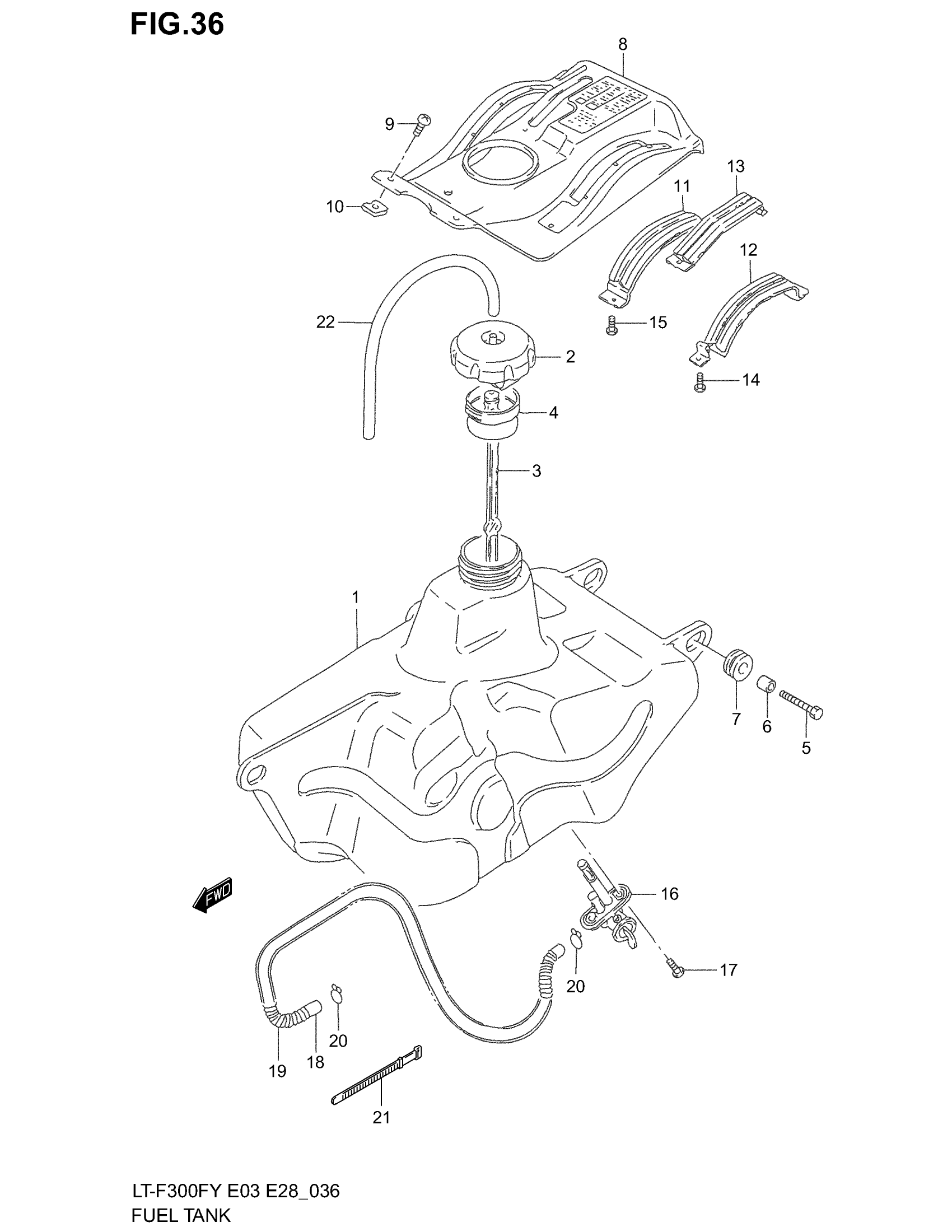

Find the part on the Fuel Tank diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F300F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | MODEL X/Y This part replaces 44110-19B00.

44110-19B01

1
Out of stock

1

TANK, FUEL | MODEL K1/K2

44110-19B01

1
Out of stock

2

CAP, FUEL TANK

44200-19B00

1
Out of stock

3

GAGE,FUEL This part replaces 44501-19B00.

44501-19B01

1
Out of stock

4

TUBE, FILLER INLET

44199-19A00

1
Out of stock

5

BOLT | MODEL X/Y

09118-08121

3
Out of stock

5

BOLT (8X35) | MODEL K1/K2 This part replaces 09112-08009.

09118-08080

3
Out of stock

6

SPACER

09180-08209

3
Out of stock

7

CUSHION

09320-12016

3
Out of stock

8

COVER, FUEL TANK

44270-39DA0

1
Out of stock

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

4
Out of stock

10

NUT

09148-05038

4
Out of stock

11

PLATE,LEVER SEA This part replaces 57950-19B00.

57950-19B01

1
Out of stock

12

PLATE,LEVER SEA This part replaces 57990-19B00.

57990-19B01

1
Out of stock

13

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

1
Out of stock

14

SCREW This part replaces 03211-04103.

03211-0410A

1
Out of stock

15

SCREW This part replaces 03511-04103.

03511-0410A

5
Out of stock

16

COCK ASSY,FUEL | MODEL X/Y This part replaces 44300-19B22.

44300-19B23

1
Out of stock

16

COCK ASSY,FUEL | MODEL K1/K2 This part replaces 44300-19B30.

44300-19B31

1
Out of stock

17

SCREW This part replaces 02112-36163.

02112-3616A

2
Out of stock

18

HOSE,5X10X600 | MODEL X/Y This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock

18

HOSE, FUEL (L:600!280) | MODEL K1/K2

09355-54115-600

1
Out of stock

19

SPRING

09440-13051

2
Out of stock

20

CLIP | MODEL X

09401-10402

2
Out of stock

20

CLIP | MODEL Y

09401-10403

2
Out of stock

20

CLIP | MODEL K1/K2

09401-11413

2
Out of stock

21

CLAMP

09407-14403

2
Out of stock

22

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock
