2002 Suzuki LT-F300F Front Caliper Diagram

← All diagrams

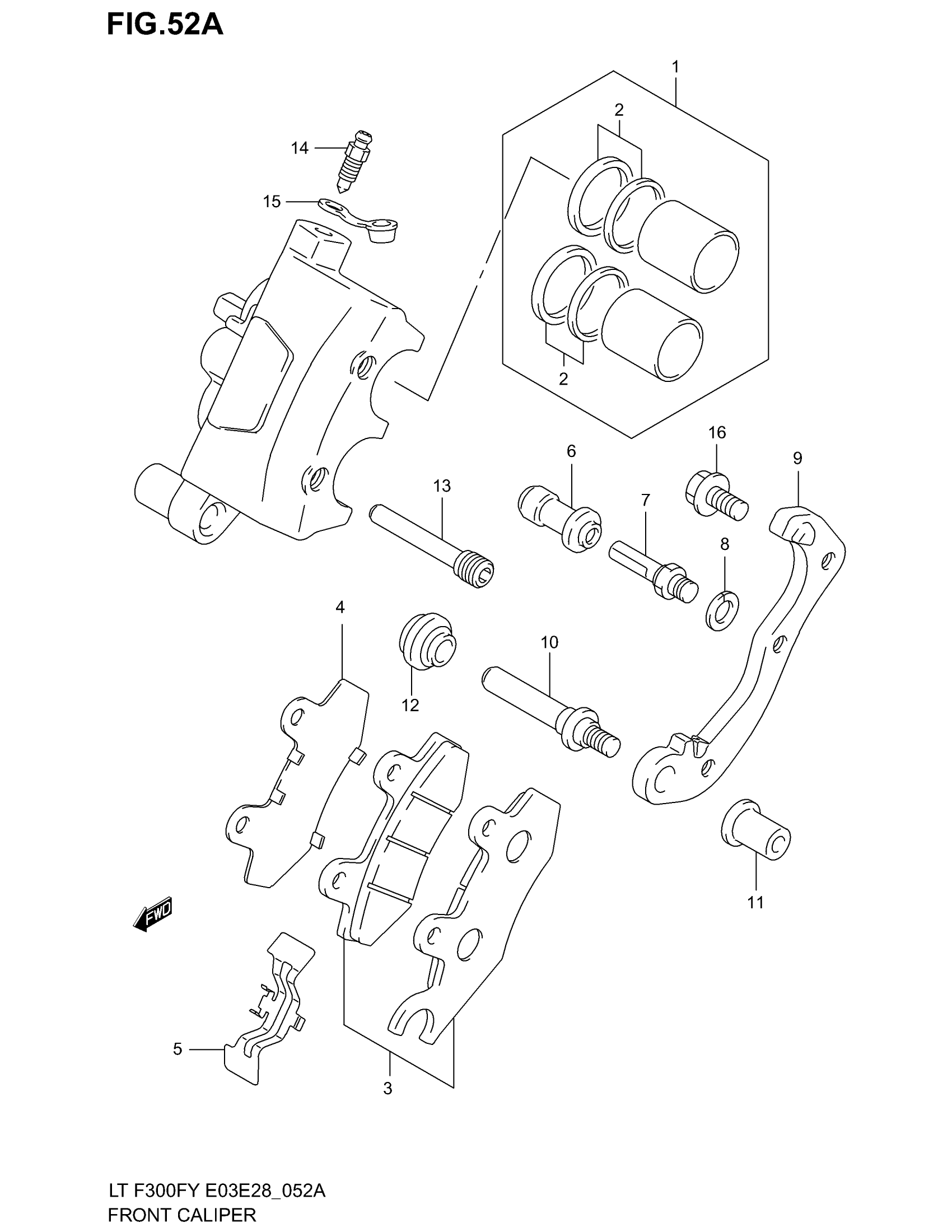

Find the part on the Front Caliper diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F300F Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY,FR This part replaces 59100-39D00.

59100-39D00-999

1
Out of stock

CALIPER ASSY,FR | Includes Item(s) 1 - 15 This part replaces 59300-39D00.

59300-39D00-999

1
Out of stock

1

PISTON SET

59100-39830

2

$69.75

In stock

2

SEAL SET, PISTON

59300-21860

2

$26.75

In stock

3

1

$44.09

In stock

3

1

$80.15

In stock

4

SHIM

69132-31D00

2

$11.31

In stock

5

SPRING

59315-00B20

2

$13.90

In stock

6

BOOT

59386-13A00

2
Out of stock

7

BOLT

59382-13A00

2
Out of stock

8

WASHER

59314-13A00

2
Out of stock

9

BRACKET, R

59151-39D00

1
Out of stock

9

BRACKET, L

59351-39D00

1
Out of stock

10

PIN

59387-00B20

2
Out of stock

11

NUT

59388-00B20

2
Out of stock

12

BOOT

59303-14500

2
Out of stock

13

.PIN,HANGER

59145-39D00

4
Out of stock

14

BLEEDER

59121-01A00

2
Out of stock

15

CAP, BLEEDER

59122-01A00

2
Out of stock

16

BOLT

09103-08147

4

$4.03

In stock
