1998 Suzuki LT-F250W Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 1998 Suzuki LT-F250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

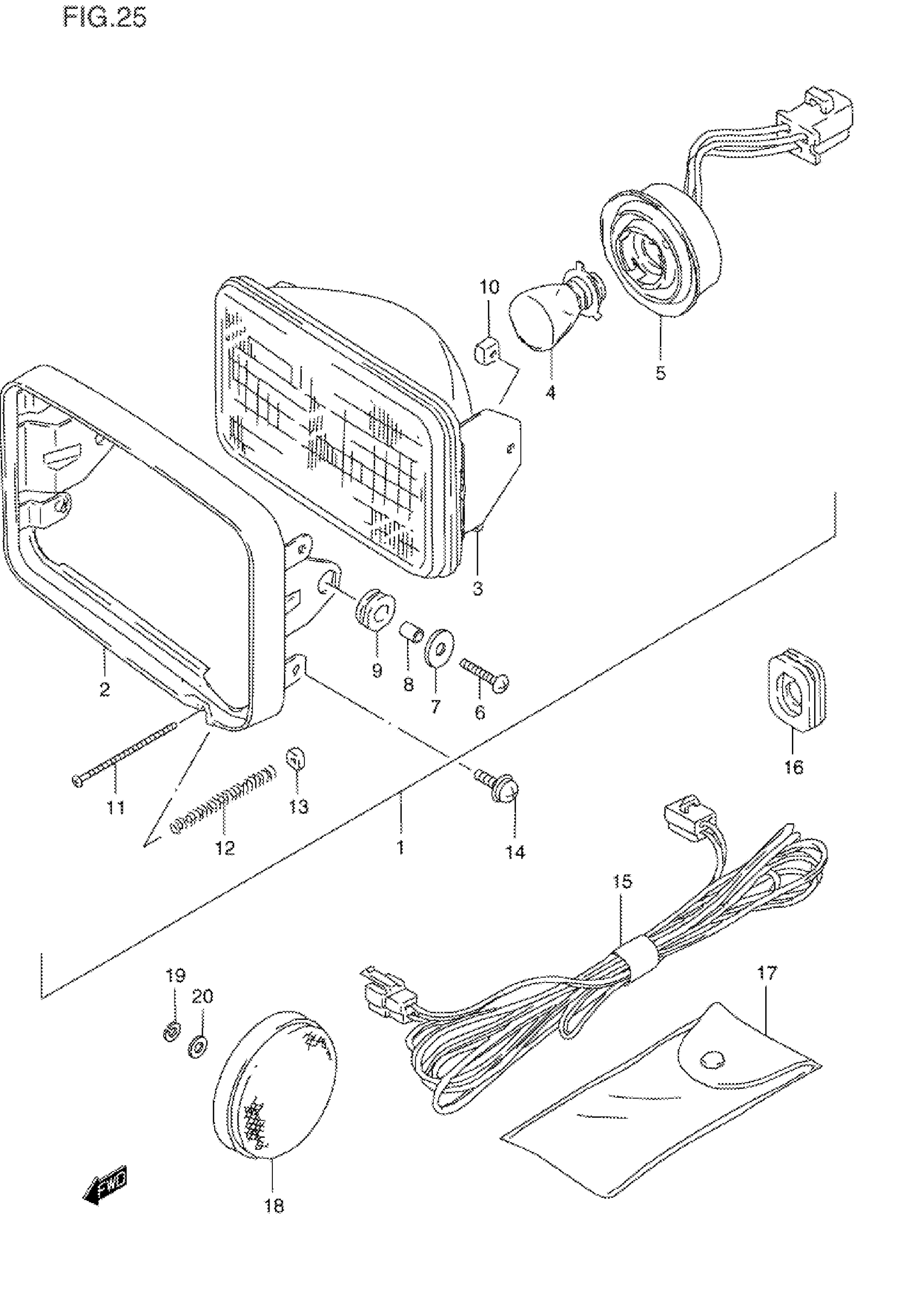

1998 Suzuki LT-F250W Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-41B01

1
Out of stock

2

RIM

35111-41B01

1
Out of stock

3

UNIT, LAMP

35121-41B00

1
Out of stock

4

BULB (12V,45/45W)

09471-12080

1
Out of stock

5

SOCKET

35171-41B00

1
Out of stock

6

SCREW This part replaces 02112-05203.

02112-0520B

2
Out of stock

7

WASHER

09160-05013

2
Out of stock

8

SPACER

35133-41B01

2
Out of stock

9

CUSHION

35139-41B01

2
Out of stock

10

NUT

35135-45900

2

$3.67

In stock

11

SCREW

35151-45900

1
Out of stock

12

SPRING

35154-41B00

1
Out of stock

13

NUT

35135-45600

1
Out of stock

14

SCREW This part replaces 02112-75123.

02112-7512A

4
Out of stock

15

WIRE, HEADLAMP LEAD

36856-41B00

1
Out of stock

16

GROMMET

09320-13019

1
Out of stock

17

BAG, LEAD WIRE

09811-00301

1
Out of stock

18

REFLEX REFLECTOR, FRONT SIDE | E28

35950-14A00

2
Out of stock

19

LOCK WASHER | E28 This part replaces 08321-01053.

08321-0105A

2
Out of stock

20

2

$1.97

In stock
