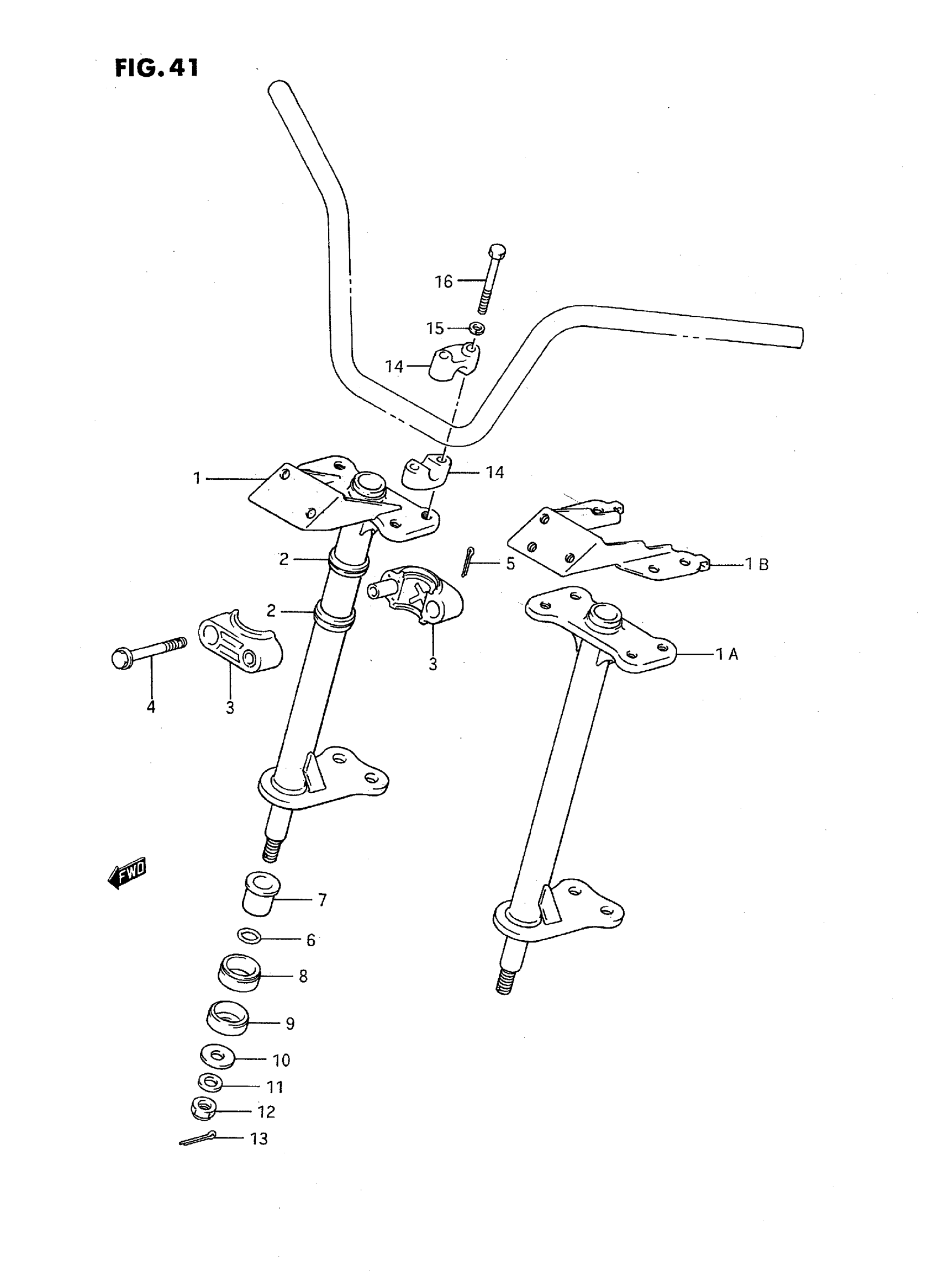

Suzuki LT-F250T (1996) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING | MODEL J/K

51650-20B00

Unavailable

1A

SHAFT, STEERING | MODEL L/M/N/P/R/S/T

51650-20B10

Unavailable

1B

BRACKET, HEADLAMP | MODEL L/M/N/P/R/S/T

51530-20B00

Unavailable

2

DUST SEAL, STEERING

51678-24500

$6.25

3

HOLDER,STEERING SHAFT

51670-24500

$21.72

4

BOLT

09103-08116

Unavailable

5

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

6

O RING

09280-17003

$1.64

7

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL J This part replaces 51661-19B00.

51661-09F00

$27.50

7

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL K/L/M/N/P/R/S/T This part replaces 51661-19B10.

51661-09F00

$27.50

8

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$5.87

9

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$6.53

10

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$4.03

11

LOCK WASHER

09162-12006

$4.18

12

NUT This part replaces 08319-21125.

08319-2112B

$5.63

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

14

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$20.22

15

LOCK WASHER | MODEL J/K/L This part replaces 08321-21084.

08321-0108A

$1.83

16

BOLT | MODEL J/K/L This part replaces 01107-08555.

01500-0855B

$3.19

16

BOLT | MODEL M/N/P This part replaces 01137-08555.

01570-0855B

$1.41

16

BOLT | MODEL R This part replaces 01570-08553.

01570-0855B

$1.41

16

BOLT | MODEL S/T

01580-08603

Unavailable
