1996 Suzuki LT-F250T Battery Diagram

← All diagrams

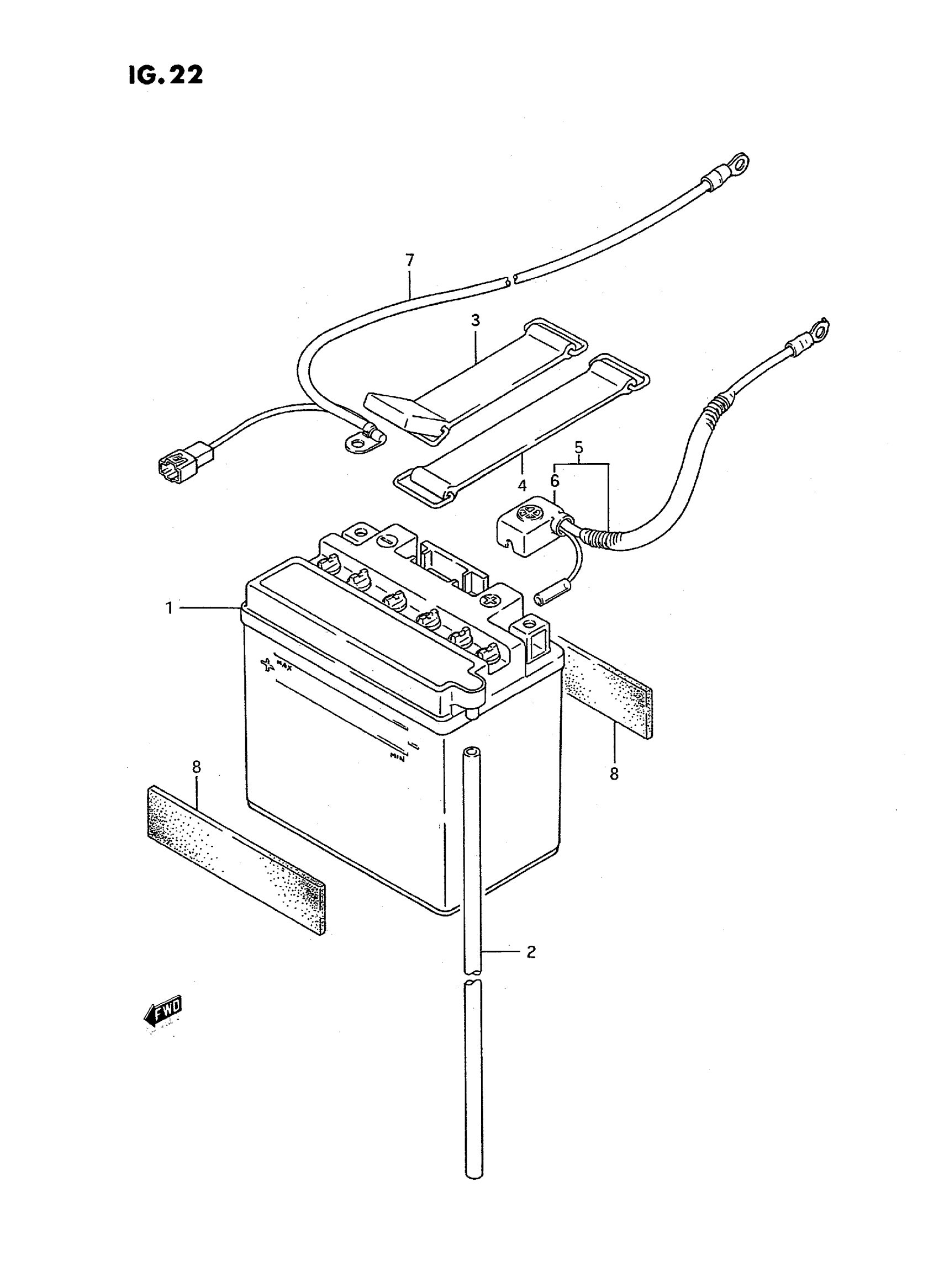

Find the part on the Battery diagram for your 1996 Suzuki LT-F250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki LT-F250T Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,14AH) This part replaces 33610-24560.

33610-24500

1
Out of stock

1

BATTERY ASSY (12V,20AH) | OPT This part replaces 33610-24550.

33610-24580

1
Out of stock

2

HOSE,BATTERY EX | L:600->550 This part replaces 33680-16A10.

33680-16A11

1
Out of stock

3

BAND, BATTERY

09462-00040

1
Out of stock

4

BAND, BATTERY | OPT

09462-00087

1
Out of stock

5

LEAD WIRE, BATTERY (+) | MODEL J/K/L/M/N This part replaces 33820-19B01.

33820-19B02

1
Out of stock

5

LEAD WIRE, BATTERY (+) | MODEL P/R/S/T; Includes Item(s) 6

33820-19B02

1
Out of stock

6

CAP, BATTERY (+)

33624-05A00

1
Out of stock

7

LEAD WIRE, BATTERY (-)

33860-19B00

1
Out of stock

8

CUSHION, BATTERY

33652-19B00

2
Out of stock
