2014 Suzuki LT-F250L4 Front Caliper Diagram

← All diagrams

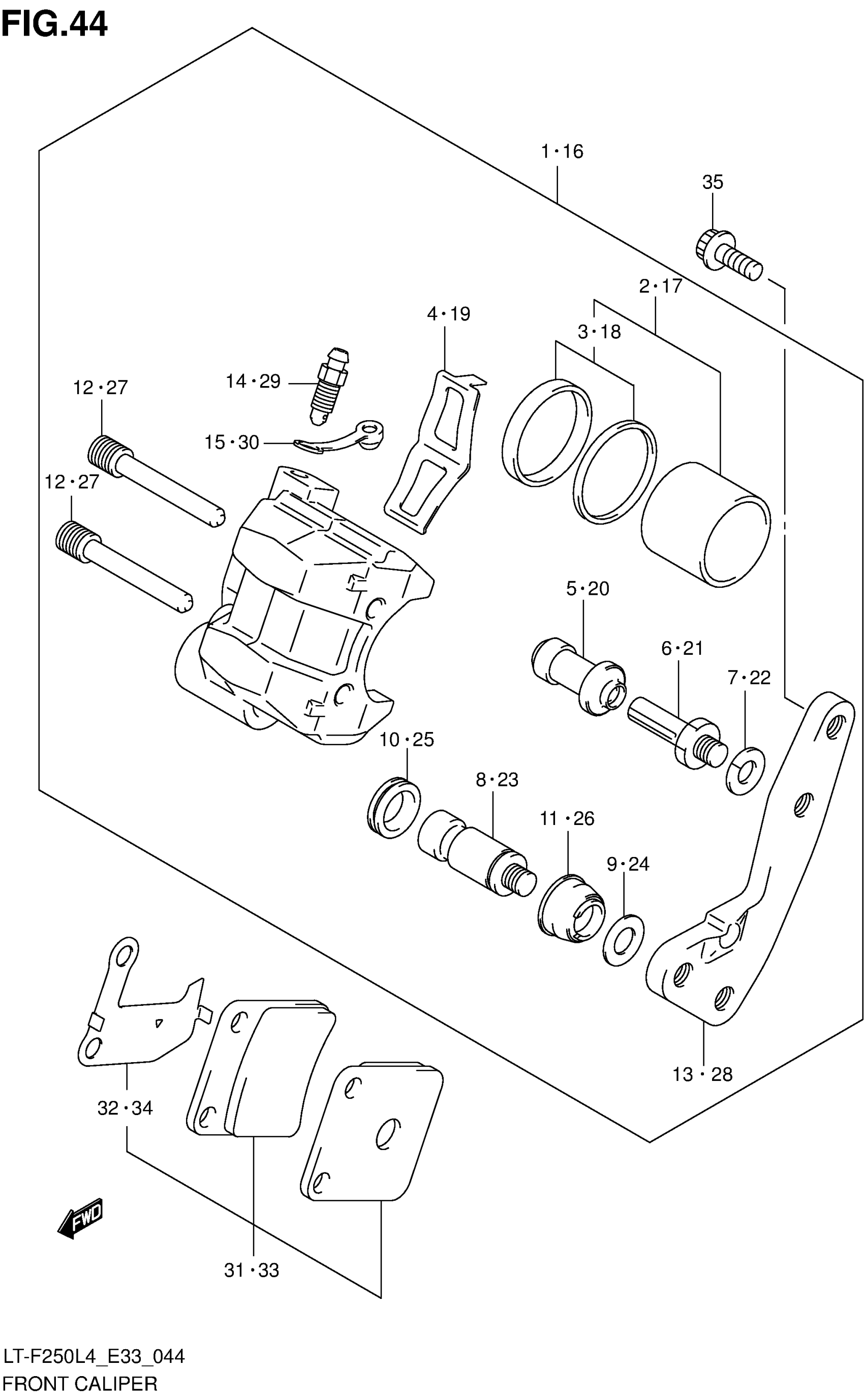

Find the part on the Front Caliper diagram for your 2014 Suzuki LT-F250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-F250L4 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$263.63

In stock

2

PISTON SET

59100-38850

1

$40.51

In stock

3

SEAL SET, PISTON

59100-38860

1

$15.55

In stock

4

SPRING, PAD

59315-13A00

1

$12.43

In stock

5

BOOT

59386-13A00

1
Out of stock

6

BOLT

59382-13A00

1
Out of stock

7

WASHER

59314-13A00

1
Out of stock

8

PIN, SLIDE

59105-38F00

1
Out of stock

9

SPRING

59306-13A00

1

$3.57

In stock

10

SEAL, DUST

59384-13A00

1

$6.95

In stock

11

BOOT

59303-13A00

1

$5.95

In stock

12

PIN

59345-00B20

2

$14.56

In stock

13

BRACKET, RH

59151-38F00

1

$60.38

In stock

14

BLEEDER

59121-01A00

1
Out of stock

15

CAP

59122-01A00

1
Out of stock

16

CALIPER ASSY, FRONT LH

59300-38F31-999

—
Out of stock

17

PISTON SET

59100-38850

1

$40.51

In stock

18

SEAL SET, PISTON

59100-38860

1

$15.55

In stock

19

SPRING, PAD

59315-13A00

1

$12.43

In stock

20

BOOT

59386-13A00

1
Out of stock

21

BOLT

59382-13A00

1
Out of stock

22

WASHER

59314-13A00

1
Out of stock

23

PIN, SLIDE

59105-38F00

1
Out of stock

24

SPRING

59306-13A00

1

$3.57

In stock

25

SEAL, DUST

59384-13A00

1

$6.95

In stock

26

BOOT

59303-13A00

1

$5.95

In stock

27

PIN

59345-00B20

2

$14.56

In stock

28

BRACKET, LH

59351-38F00

1

$60.38

In stock

29

BLEEDER

59121-01A00

1
Out of stock

30

CAP

59122-01A00

1
Out of stock

31

1

$63.57

In stock

32

SHIM RH

59371-13A00

1
Out of stock

33

1

$48.15

In stock

34

SHIM LH

69372-00B20

1

$12.43

In stock

35

BOLT (8X16)

09106-08174

4
Out of stock
