2013 Suzuki LT-F250L3 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2013 Suzuki LT-F250L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

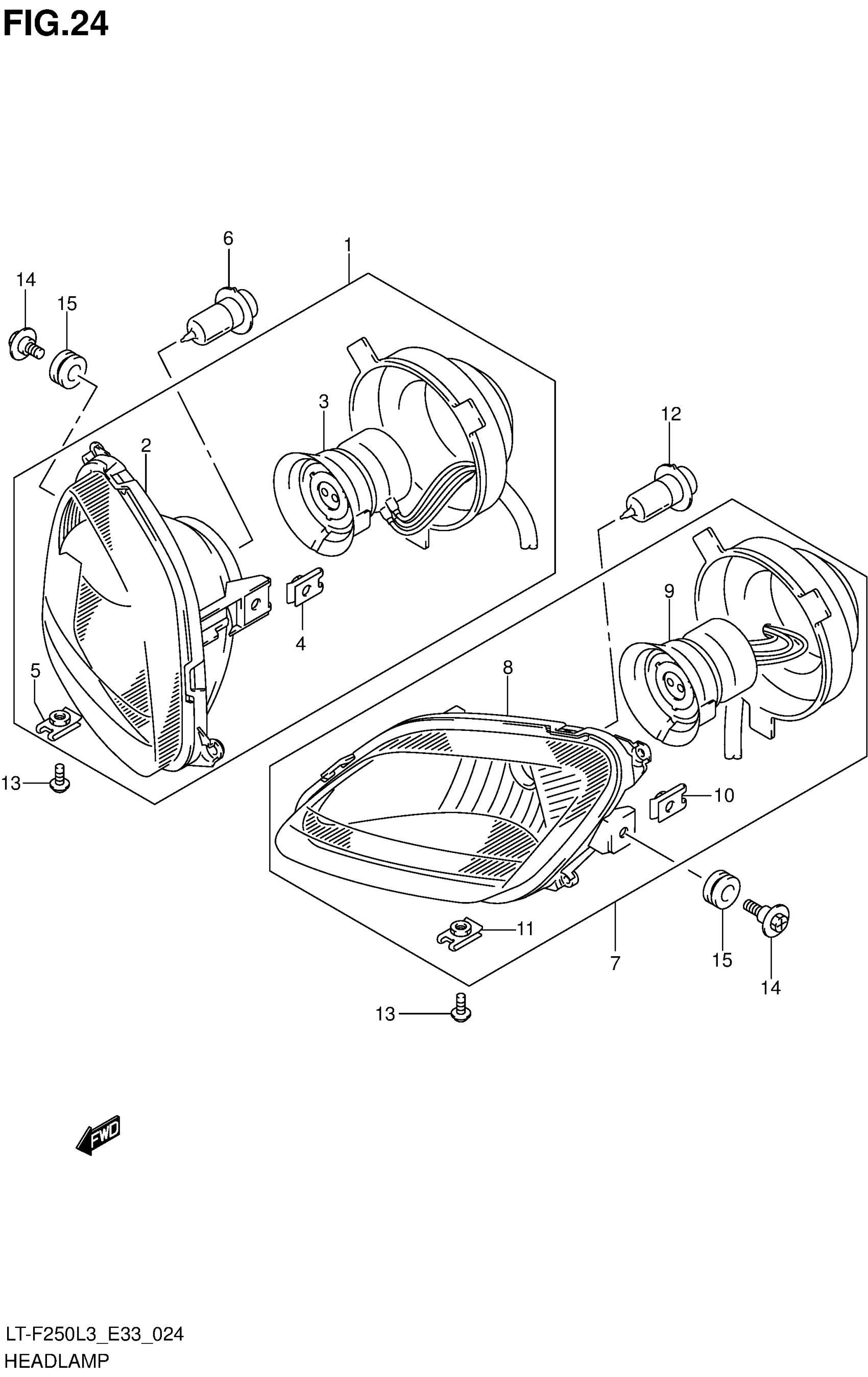

2013 Suzuki LT-F250L3 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY, RH

35100-05G00-999

1
Out of stock

2

UNIT, RH

35121-03G00

1

$195.13

In stock

3

CORD ASSY, RH

35171-05GR0

1

$45.40

In stock

4

NUT (M6)

35157-05G90

2

$6.75

In stock

5

NUT (M5)

35157-05G50

1

$6.75

In stock

6

1

$28.59

In stock

7

HEADLAMP ASSY, LH

35300-05G00-999

1
Out of stock

8

UNIT, LH

35321-03G00

1

$207.17

In stock

9

CORD ASSY, LH

35171-05GL0

1

$44.55

In stock

10

NUT (M6)

35157-05G90

2

$6.75

In stock

11

NUT (M5)

35157-05G50

1

$6.75

In stock

12

1

$28.59

In stock

13

SCREW (5X16)

09136-05046

2

$2.67

In stock

14

SCREW (6X22.5)

09139-06118

4
Out of stock

15

CUSHION

09320-10501

4

$6.73

In stock
